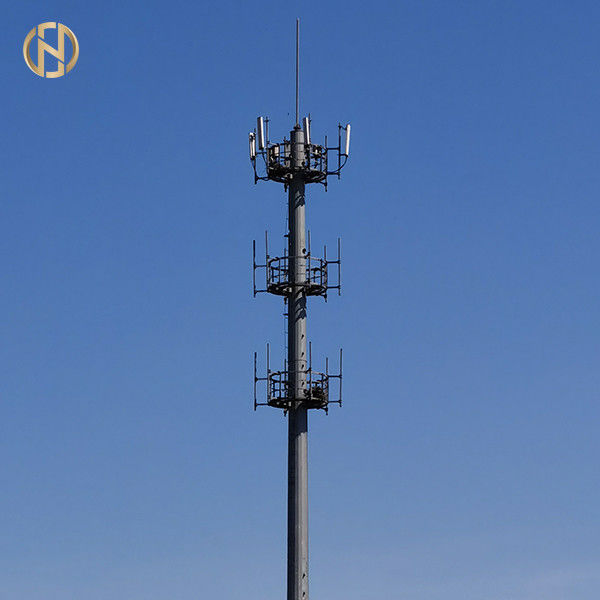

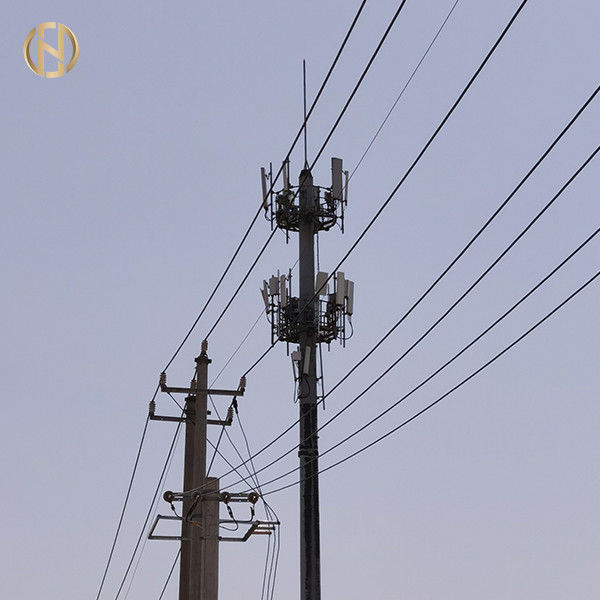

20 Side 30M 36M 40M Telecommunication Pole For Internet

20 Side 30M 36M 40M Telecommunication Pole For Internet

  • High Light

    40M Telecommunication Pole

    ,

    36M Telecommunication Pole

    ,

    30M Telecommunication Tower

  • Pole Material
    Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65,
  • Telecommunication Tower Shape
    Polygonal / Conical / Tubular
  • Telecommunication Tower Surface Treatment
    Hot Dip Galvanized / Powder Coated / Painting
  • Telecommunication Tower Connection Method
    Overlap/Flange Connection
  • Telecommunication Tower Welding
    According To AWS D 1.1, CO2
  • Telecommunication Tower Wall Thickness
    3-25mm
  • Telecommunication Tower Each Section Length
    No More Than 14m
  • Telecommunication Tower Products Name
    20-Side 30M 36M 40M Telecommunication Post/Tower/Pole Using For Internet
  • Place of Origin
    jiangsu,China
  • Brand Name
    FUTAO
  • Certification
    ISO 9001 2015
  • Model Number
    HG-TT-15-60m
  • Minimum Order Quantity
    1set
  • Price
    1000-10000USD Per set
  • Packaging Details
    Bubble Wrap, Mat &Straw Bale or as per client’s request
  • Delivery Time
    30days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000ton per month

20 Side 30M 36M 40M Telecommunication Pole For Internet

20-Side 30M 36M 40M Telecommunication Post/Tower/Pole Using For Internet


Description of products


Our telecommunication poles at Futao are designed to be used in various fields such as cellular communications, broadcasting and telecommunications. Telecommunication poles can either be base plate mounted or use a direct burial mounting method. All baseplates will be made in accordance to ASTM A633 GRE standard for Normalized High Strength Low-Alloy Structural Steel Plates. In addition, the shape of the poles can be configured in a number of options including round and multisided tapering. For those looking for a more aesthetic look, we have Camouflaged Palm Tree/Pine Tree towers that will blend in seamlessly in any location (please contact us for more details).


Products Specifications


Products Name 20-Side 30M 36M 40M Telecommunication Post/Towet/Pole Using For Internet
Telecommunication Post/Tower/Pole Height 15-60M
Telecommunication Post/Tower/Pole Design wind Telecommunication Post 160KM/H or depending on clients requirements

Calculation Report

(Deflection Calculation)

Telecommunication Post,Steel Pole Structure Analysis report
Wind Pressure Calculation report
Telecommunication Post/Tower/Pole Applications Telecommunication, wireless internet.
Telecommunication Post/Tower/Pole Application place Park,Mountain etc
Telecommunication Post/Tower/Pole Work Platform The Work Platform Layers Quantity Depending on the antennas installations Quantity/Size/Weight
Telecommunication Post/Tower/Pole Equipment Bracket

Telecommunication Post Equipment Bracket usually use 76mm(OD) Pipe,The bracket length depending on the Work platform Layers and spacing of

the work Platform.

Telecommunication Post/Tower/Pole Equipment Equipped Telecommunication Post RRU,Microwave-Dish,Radome,Antenna Etc
Telecommunication Equipment Equipped Method Equipment Equipped Method by “U” Type anchor bolt to fixed on 76mm(OD)pipe bracket.
Telecommunication Post Tower/Pole Shape Conical, Polygonal
Telecommunication Post Length of per section Within 14m once forming without slip joint
Telecommunication Post Safety Factor 1.5,1.7,2.0 etc
Tower/Pole Material Q235, Q355, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55
Telecommunication Post/Tower/Pole Minimum yield strength 355 Mpa
Minimum ultimate tensile strength 490 Mpa
Max ultimate tensile strength 620 Mpa
Telecommunication Post Surface Treatment Hot Dip Galvanization in accordance with Chinese Standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 or BS EN ISO 1461 and different Color Powder Coated.
Connection Method Slip joint by lower section insert into upper section
Flange connect to flange(outer flange/inner flange)
Climbing Method Inner Climbing Ladder/Nail
Outer Climbing Ladder/Nail
Tower/Pole Safety Cage 1PC Safety cage assemble position approach to Work Platform or assembly from in the ground to the work platform
Wall Thickness 2~30mm
Telecommunication Post Tower Welding

Welding complies with AWS D1.1 standard.

CO2 Welding or Submerged Arc Auto methods

No fissures, scars, overlaps, layering or other defects

Telecommunication Post Pole Welds Seam longitudinal welding seam and transverse welding seam
Welds slags removing Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing.
Mounting Method Direct Burial/With Base Template and Anchor Bolts
Telecommunication Post Base plate Base plate is square/round/polygonal with slotted holes for anchor bolts or according to clients’ requirement.
Life Expectancy More than 25 years depending on various environmental factors

Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding →
Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
20 Side 30M 36M 40M Telecommunication Pole For Internet 0
Product Details

20 Side 30M 36M 40M Telecommunication Pole For Internet 1

Testing


20 Side 30M 36M 40M Telecommunication Pole For Internet 2
Packaging & Shipping


We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may
occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.



Export Market


Asia-Pacific, Central & South America,North America, Europe, Middle East, Africa


FAQ


Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. MOQ: 1 sets.
3. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic woven bag or old blanket or according to clients requirement.
5. Delivery time: within 30-60 workdays after receiving deposit.


Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.
2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.
