20 Sides Shape Telecom Post With Lighting Rod 35M 40M Long Service Life

20 Sides Shape Telecom Post With Lighting Rod 35M 40M Long Service Life

  • High Light

    transmission line pole


    monopole communication tower

  • Products Name
    35M 40M 20-Side Shape Telecommunication Post,Communication Poles With Lighting Rod
  • Communication Poles Material
    Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65,
  • Communication Poles Shape
    Polygonal / Conical / Tubular
  • Communication Poles Surface Treatment
    Hot Dip Galvanized / Powder Coated / Painting
  • Communication Poles Connection Method
    Overlap/Flange Connection
  • Communication Poles Welding
    According To AWS D 1.1, CO2
  • Communication Poles Wall Thickness
  • Communication Poles Each Section Length
    No More Than 14m(11900mm,10890mm Or Depending On Design)
  • Communication Poles Design Wind
  • Place of Origin
  • Brand Name
  • Certification
    ISO 9001 2015
  • Model Number
  • Minimum Order Quantity
  • Price
    1000-10000USD Per set
  • Packaging Details
    Bubble Wrap, Mat &Straw Bale or as per client’s request
  • Delivery Time
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000ton per month

20 Sides Shape Telecom Post With Lighting Rod 35M 40M Long Service Life

35M 40M 20-Side Shape Telecommunication Post,Communication Poles With Lighting Rod

Description of products

Our telecommunication poles at Futao are designed to be used in various fields such as cellular communications, broadcasting and telecommunications. Telecommunication poles can either be base plate mounted or use a direct burial mounting method. All baseplates will be made in accordance to ASTM A633 GRE standard for Normalized High Strength Low-Alloy Structural Steel Plates. In addition, the shape of the poles can be configured in a number of options including round and multisided tapering. For those looking for a more aesthetic look, we have disguised towers that will blend in seamlessly in any location (please contact us for more details).
products specification details

Communication Pole Products Name 35M 40M 20-Side Shape Telecommunication Post,Communication Poles With Lighting Rod
Communication Pole Height 15-60M
Communication Pole Design wind 160KM/H or depending on clients requirements
Communication Pole Applications Telecommunication, wireless internet,Camouflaged,Decorated,Lighting
Communication Pole Application place Airport,Plaza Etc
Communication Pole Advantages

1)The Monopole structure is exquisite, and the appearance is beautiful.
2)Strong structural stability and good technicality.

Communication PoleWork Platform The Work Platform Layers Quantity Depending on the antennas installations Quantity/Size/Weight

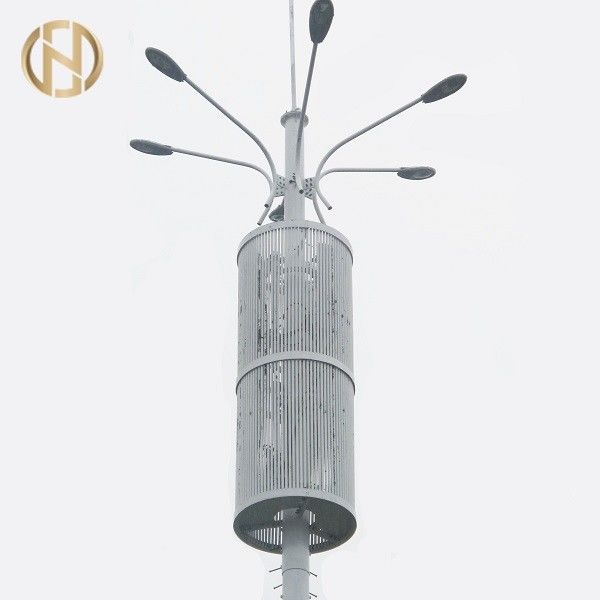

Communication Pole Luminaries installation 6 Nos LED lights evenly distributed in 360 degrees shall be fixed on pole cap at top

Strip elements for
fiberglass shroud

Channel 50mm x 10mm x 4mm thick, of length 3m shall be fixed on frame of diameter 2.5m,or depending on specifications requirements.
Shape Communication Pole shape Conical, Polygonal
Communication Pole Length of per section Within 14m once forming without slip joint
Safety Factor 1.5,1.7,2.0 etc
Communication Pole Material Communication Pole Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55
Surface Treatment Communication Pole Hot Dip Galvanization in accordance with Chinese Standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 or BS EN ISO 1461 and different ColoCoated.
Connection Method Communication Pole Slip joint by lower section insert into upper section
Flange connect to flange(outer flange/inner flange)
Climbing Ladder Inner Climbing Ladder/Nail
Outer Climbing Ladder/Nail
Wall Thickness 2~30mm

Communication Pole Welding complies with AWS D1.1 standard.
CO2 Welding or Submerged Arc Auto methods
No fissures, scars, overlaps, layering or other defects

Welds slags removing Communication Pole Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing.
Mounting Method Direct Burial/With Base Template and Anchor Bolts
Base plate Base plate is square/round/polygonal with slotted holes for anchor bolts or according to clients’ requirement.
Life Expectancy More than 25 years depending on various environmental factors

Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding →
Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

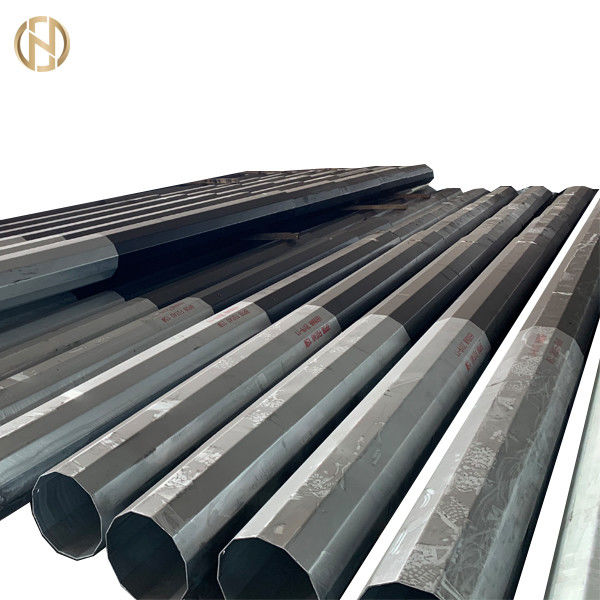

20 Sides Shape Telecom Post With Lighting Rod 35M 40M Long Service Life 0
Product Details

20 Sides Shape Telecom Post With Lighting Rod 35M 40M Long Service Life 1

20 Sides Shape Telecom Post With Lighting Rod 35M 40M Long Service Life 2
Packaging & Shipping

We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may
occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.

Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. MOQ: 1 sets.
3. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic woven bag or old blanket or according to clients requirement.
5. Delivery time: within 30-60 workdays after receiving deposit.

Q1. How can I get a price of needed Communication Pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.
2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.
