Description of products

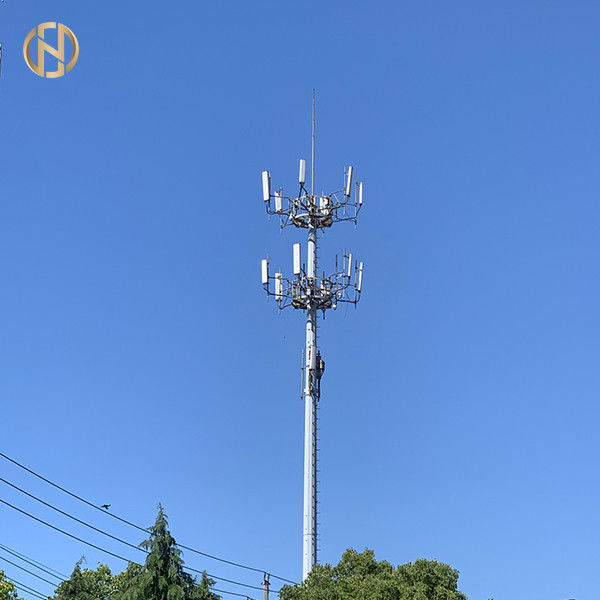

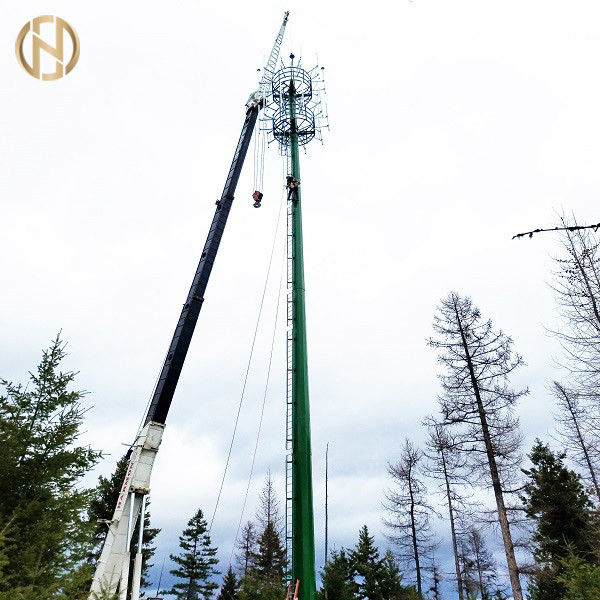

Our telecommunication poles at Futao are designed to be used in various fields such as cellular communications, broadcasting and telecommunications. Telecommunication poles can either be base plate mounted or use a direct burial mounting method. All baseplates will be made in accordance to ASTM A633 GRE standard for Normalized High Strength Low-Alloy Structural Steel Plates. In addition, the shape of the poles can be configured in a number of options including round and multisided tapering. For those looking for a more aesthetic look, we have Camouflaged Palm Tree/Pine Tree towers that will blend in seamlessly in any location (please contact us for more details).
Products Specification
| Telecommunication Pole Products Name | 100FT 120FT Telecom Poles,Telecommunication Post made by ASTM A572 GR65 Steel |
| Telecommunication Pole Height | 15m,18m,20m,24m,25m,30m,35m,40m,45m,50m,55m,60m. |
| Telecommunication Pole Design wind | 25m/s or depending on clients requirements |
Calculation Report | Steel Pole Structure Analysis report |
| Wind Pressure Calculation report | |
| Telecommunication Pole Applications | Telecommunication, wireless internet. |
| Telecommunication Pole Application place | Park,Mountain etc |
| Telecommunication Pole/Monopole Work Platform | The Work Platform Layers Quantity Depending on the antennas installations Quantity/Size/Weight |
| Telecommunication Equipment Bracket | Equipment Bracket usually use 76mm(OD) Pipe,The bracket length depending on the Work platform Layers and spacing of |
| Telecommunication Equipment Equipped | RRU,Microwave-Dish,Radome,Antenna Etc |
| Telecommunication Equipment Equipped Method | Equipment Equipped Method by “U” Type anchor bolt to fixed on 76mm(OD)pipe bracket. |
| Telecommunication Pole Shaft Shape | Conical, Polygonal |
| Telecommunication Pole Length of per section | Within 14m once forming without slip joint(or 11900mm be Available 40FT Container Loading) |
| Telecommunication Pole Material | Q235, Q355, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 |
| Minimum yield strength | 355 Mpa |
| Minimum ultimate tensile strength | 490 Mpa |
| Max ultimate tensile strength | 620 Mpa |
| Surface Treatment | Hot Dip Galvanization in accordance with Chinese Standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 or BS EN ISO 1461 and different Color Powder Coated. |
| Telecommunication Pole Connection Method | Slip joint by lower section insert into upper section |
| Flange connect to flange(outer flange) |
| Telecommunication Pole Welding | Welding complies with AWS D1.1 standard. |
| Telecommunication Pole Welds Seam | longitudinal welding seam and transverse welding seam |
| Telecommunication Pole Welds slags removing | Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing. |
| Mounting Method | Direct Burial/With Base Template and Anchor Bolts |
| Base plate(Flange) | Base plate is square/round/polygonal with slotted holes for anchor bolts or according to clients’ requirement. |
| Life Expectancy | More than 25 years depending on various environmental factors |
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding →
Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Testing
Packaging & Shipping
We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may
occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.
Export Market
Asia-Pacific, Central & South America,North America, Europe, Middle East, Africa
FAQ
Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. MOQ: 1 sets.
3. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic woven bag or old blanket or according to clients requirement.
5. Delivery time: within 30-60 workdays after receiving deposit.
| Q1. How can I get a price of needed Telecom Pole? |
A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we accept orders of various quantities. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
| Q4: We want be your agent for our area. How do I apply for this? |
| A: Please send your proposal and your company profile. |
| Q5. Tell me about your company? |
| We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world. |
| Q6. Do you have some special policies for Branded companies? |
| A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market. |
| Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance. |
| A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money. |
