25M 30M Monopole Telecommunications Tower Galvanized Steel For Antenna

25M 30M Monopole Telecommunications Tower Galvanized Steel For Antenna

  • High Light

    telecommunication pole


    transmission line pole

  • Material
    Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65,
  • Shape
    Polygonal / Conical / Tubular
  • Surface Treatment
    Hot Dip Galvanized / Powder Coated / Painting
  • Connection Method
    Overlap/Flange Connection
  • Welding
    According To AWS D 1.1, CO2
  • Wall Thickness
  • Each Section Length
    No More Than 14m
  • Place of Origin
  • Brand Name
  • Certification
    ISO 9001 2015
  • Model Number
  • Minimum Order Quantity
  • Price
    1000-10000USD Per set
  • Packaging Details
    Bubble Wrap, Mat &Straw Bale or as per client’s request
  • Delivery Time
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000ton per month

25M 30M Monopole Telecommunications Tower Galvanized Steel For Antenna

25M 30M Steel Telecommunications Monopole Tower For Antenna

Description of products

Our telecommunication poles at Futao are designed to be used in various fields such as cellular communications, broadcasting and telecommunications. Telecommunication poles can either be base plate mounted or use a direct burial mounting method. All baseplates will be made in accordance to ASTM A633 GRE standard for Normalized High Strength Low-Alloy Structural Steel Plates. In addition, the shape of the poles can be configured in a number of options including round and multisided tapering. For those looking for a more aesthetic look, we have Camouflaged Palm Tree/Pine Tree towers that will blend in seamlessly in any location (please contact us for more details).

Products Specifications

Products Name 25M 30M Steel Telecommunications Monopole Tower For Antenna
Height 15-60M
Design wind 160KM/H or depending on clients requirements

Calculation Report

(Deflection Calculation)

Steel Pole Structure Analysis report
Wind Pressure Calculation report
Applications Telecommunication, wireless internet.
Application place Park,Mountain etc
Work Platform The Work Platform Layers Quantity Depending on the antennas installations Quantity/Size/Weight
Telecommunication Equipment Bracket

Equipment Bracket usually use 76mm(OD) Pipe,The bracket length depending on the Work platform Layers and spacing of

the work Platform.

Telecommunication Equipment Equipped RRU,Microwave-Dish,Radome,Antenna Etc
Telecommunication Equipment Equipped Method Equipment Equipped Method by “U” Type anchor bolt to fixed on 76mm(OD)pipe bracket.
Shape Conical, Polygonal
Length of per section Within 14m once forming without slip joint
Safety Factor 1.5,1.7,2.0 etc
Material Q235, Q355, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55
Minimum yield strength 355 Mpa
Minimum ultimate tensile strength 490 Mpa
Max ultimate tensile strength 620 Mpa
Surface Treatment Hot Dip Galvanization in accordance with Chinese Standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 or BS EN ISO 1461 and different Color Powder Coated.
Connection Method Slip joint by lower section insert into upper section
Flange connect to flange(outer flange/inner flange)
Climbing Method Inner Climbing Ladder/Nail
Outer Climbing Ladder/Nail
Safety Cage 1PC Safety cage assemble position approach to Work Platform or assembly from in the ground to the work platform
Wall Thickness 2~30mm

Welding complies with AWS D1.1 standard.

CO2 Welding or Submerged Arc Auto methods

No fissures, scars, overlaps, layering or other defects

Welds Seam longitudinal welding seam and transverse welding seam
Welds slags removing Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing.

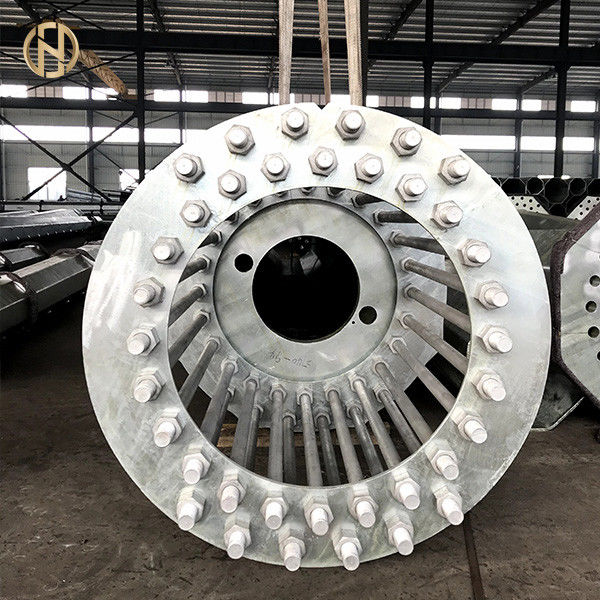

Mounting Method Direct Burial/With Base Template and Anchor Bolts
Base plate Base plate is square/round/polygonal with slotted holes for anchor bolts or according to clients’ requirement.
Life Expectancy More than 25 years depending on various environmental factors

Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding →
Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
25M 30M Monopole Telecommunications Tower Galvanized Steel For Antenna 0
Product Details

25M 30M Monopole Telecommunications Tower Galvanized Steel For Antenna 1

25M 30M Monopole Telecommunications Tower Galvanized Steel For Antenna 2
Packaging & Shipping

We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may
occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.


Export Market

Asia-Pacific, Central & South America,North America, Europe, Middle East, Africa


Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. MOQ: 1 sets.
3. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic woven bag or old blanket or according to clients requirement.
5. Delivery time: within 30-60 workdays after receiving deposit.

Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.
2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.

Our Service

1. We will reply all your enquiries in 12 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. We have experienced and professional design team. UEM & UBM are welcome.
4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
5. Special discount or comission and protection of sales are provided to our distributors.
6. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
7. We have our own inspection team to control the quality.
Welcome to our factory!
