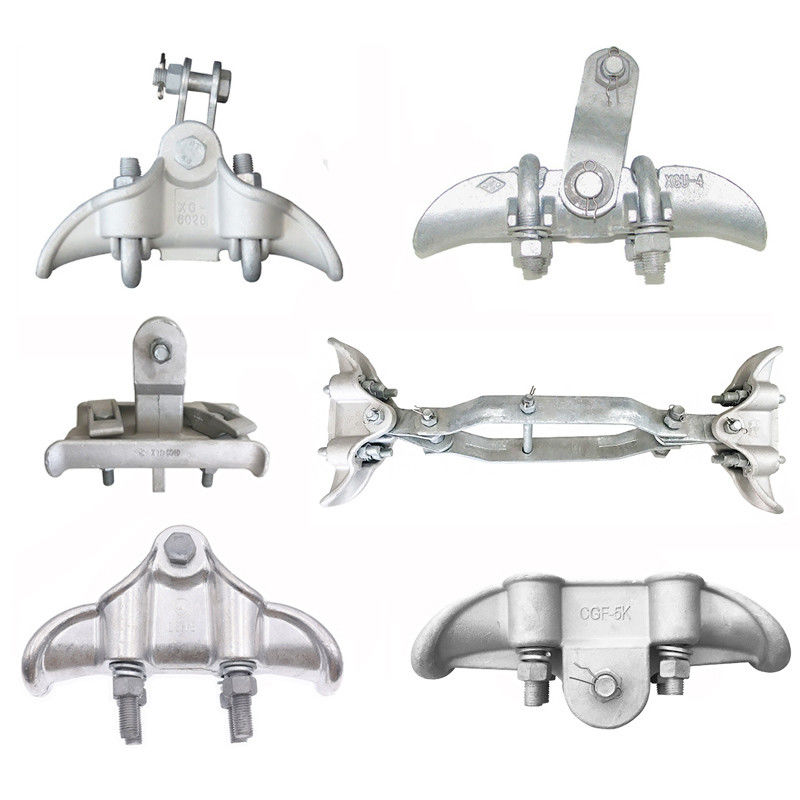

Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage

Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage

  • High Light

    Twin Jumper Conductor Suspension Clamps

    ,

    High Voltage Cable Suspension Clamps

  • Product Name
    Suspension Clamp
  • Material
    STEEL, Aluminum Alloy,Hot-dip Galvanized Steel
  • Product Parameter
    Consult Customer Service
  • Application
    Overhead Line Accessories
  • Place of Origin
    Jiangsu China
  • Brand Name
    FUTAO
  • Certification
    ISO9001/CE/RoHs
  • Model Number
    customization
  • Minimum Order Quantity
    50 Pieces
  • Price
    $1.0-$40.0
  • Packaging Details
    40HC or OT,paper skin,Buffer foam ,Carton, pallet or container
  • Delivery Time
    7-10 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100000 pieces every month

Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage

Suspension Clamp

Product Description

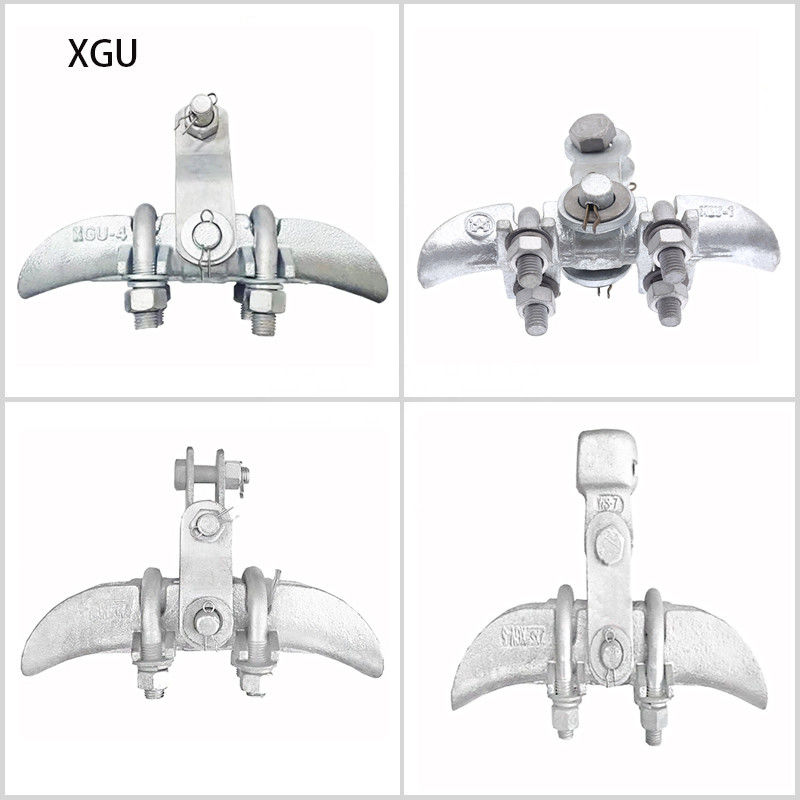

XGU Series



Suspension clamps are mainly used for overhead power lines. Wires are suspended from insulators or lightning conductors are suspended from pole towers through connection fittings.

Traditional malleable cast iron clamps have the disadvantages of large hysteresis loss, large hole current loss, and bulky products. The aluminum alloy clamp has the advantages of extremely small hysteresis loss and eddy current loss, light weight, and convenient construction.

Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage 0

Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage 1

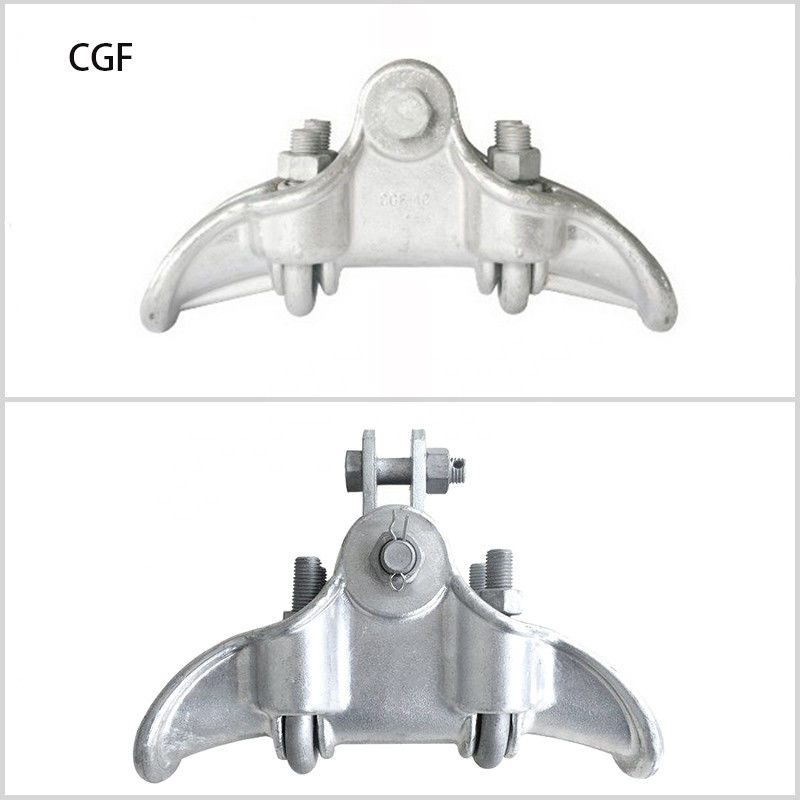

CGF Series



CGF corona-proof type suspension clamp adopts anti-halo design, especially suitable for 110KV and above lines. The clamp body and pressure plate are made of high-strength aluminum alloy, and have undergone heat treatment process, no hysteresis effect, and energy saving.



Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage 2

Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage 3









Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage 4

Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage 5

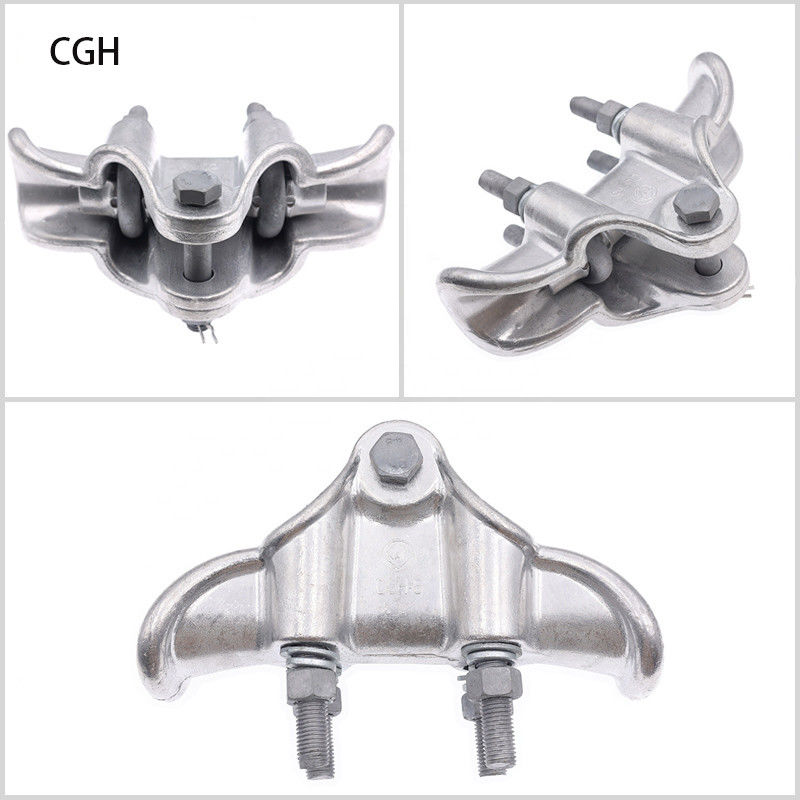

CGH Series



The clamp body and pressure plate of the CGH aluminum alloy envolope-type overhanging clamp are made of high-strength aluminum alloy and have undergone heat treatment process. There is no hysteresis effect and it has energy saving effects. It is recommended to replace the high energy consumption XGU series malleable cast iron suspension clamps.

Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage 6



Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage 7

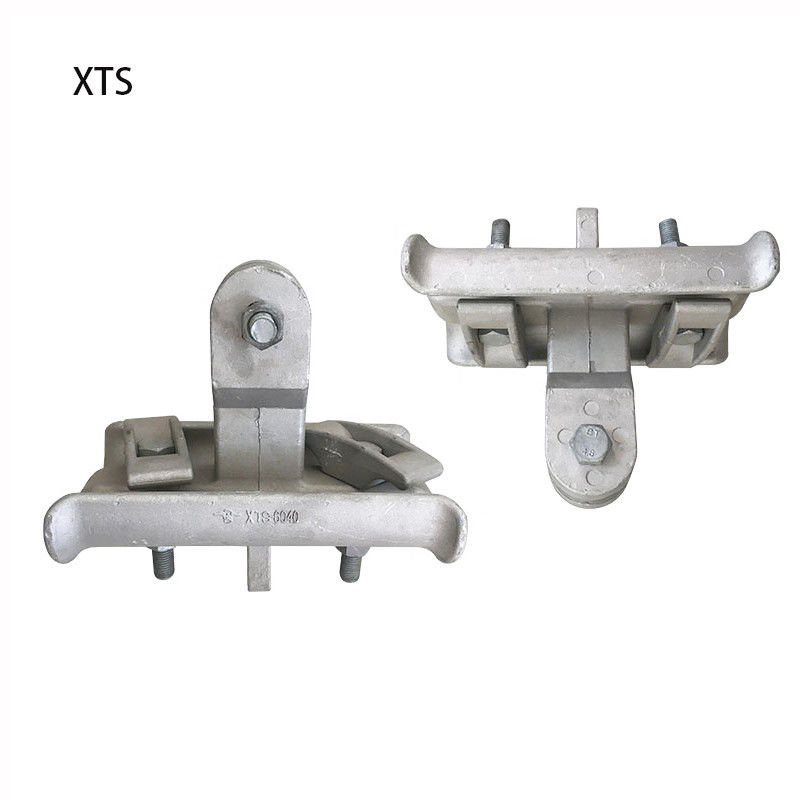

XTS & CTS Series

XTS & CTS type suspension clamps for twin jumper conductor are adopted melleable iron casting & aluminum alloy, respectively. They are especially suitable for more than 110KV overhead transimission line; after thermal treatment, they are of hysteresis-free & energy-saving efficiency.

Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage 8

Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage 9

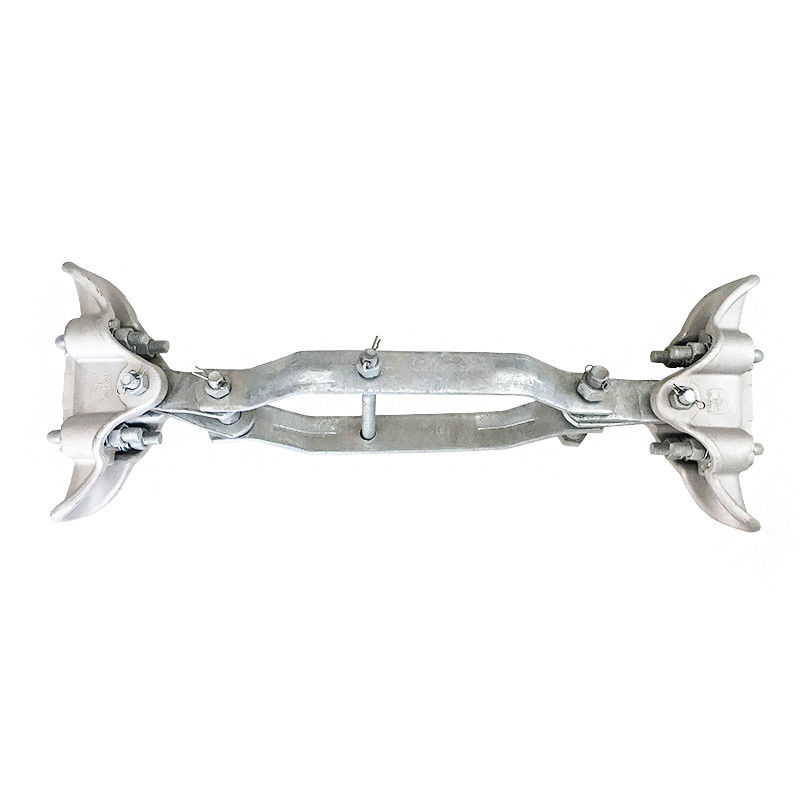

CSH Twin Conductor Aluminum Alloy Suspension Clamps



1. The CSH in the table is an aluminum alloy product, and "F" is added to the model to prevent halo.
2. XCS in the table is malleable cast iron products.

Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage 10

Suspension Clamps For Twin Jumper Conductor Electric Power Fittings High Voltage 11
