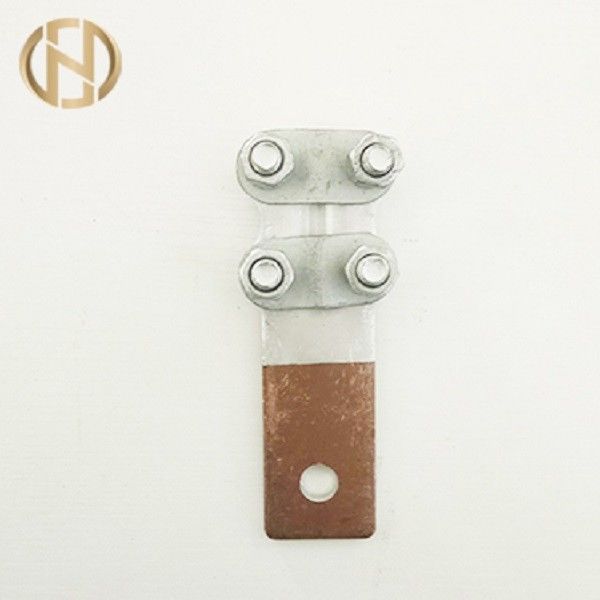

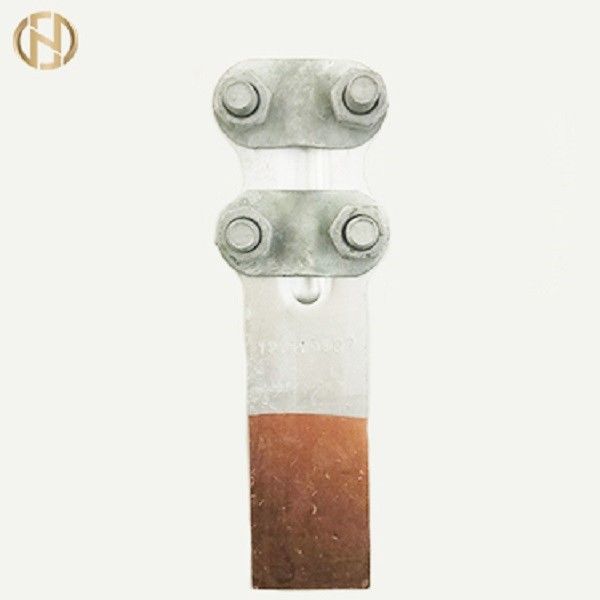

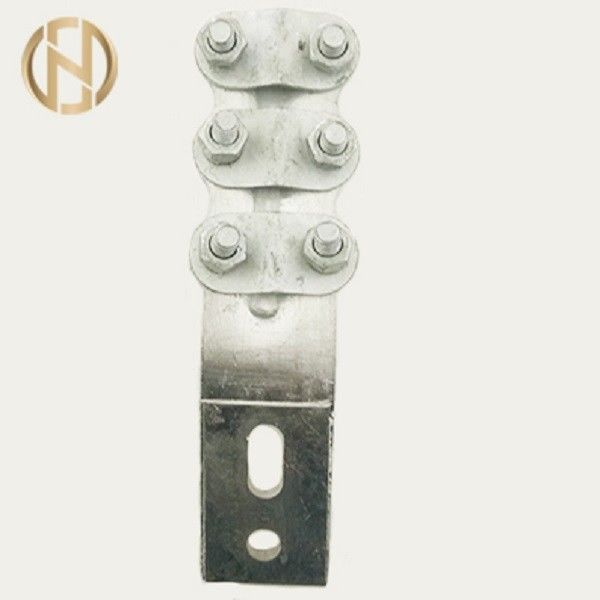

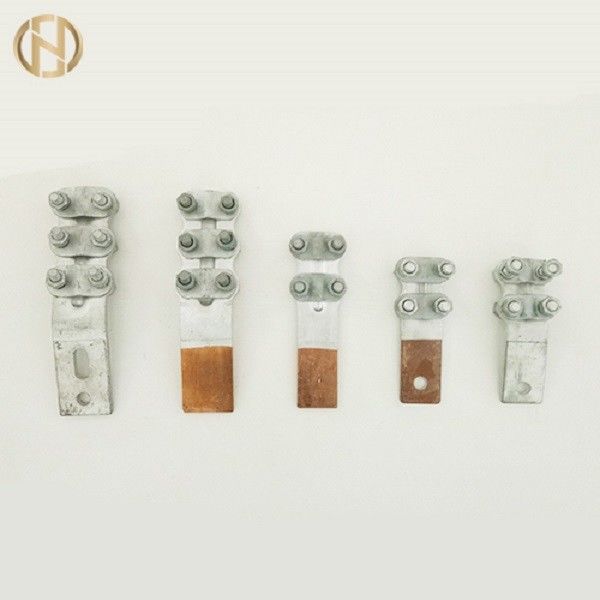

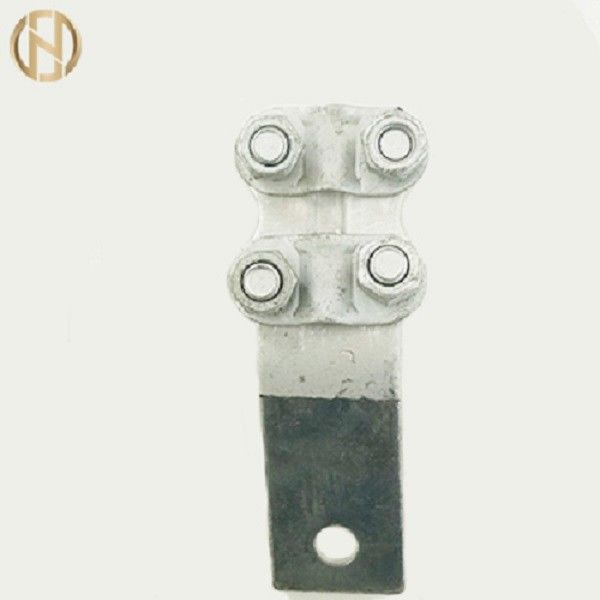

Bolt Type Copper Aluminum Transition Terminal Clamp (Qian Welding) SLG-Q
SLG-Q Type Copper Aluminum Transitional Terminal Clamps are applicable to connect copper conductor with aluminum terminal of electric device, qualified for good electric contact performance suitable for permanent connection.
Technical Parameters
| Type no | 74 Standard |
Suitable conductor (mm2) |
Dimension(mm) | ||||
| A | B | L2 | L1 | L | |||
| / | SL-1Q | 35~50 | 6 | 40 | 65 | 45 | 120 |
| SL-2Q | 70~95 | 6 | 40 | 80 | 45 | 136 | |
| SLG-1Q | SL-3Q | 35~50 | 6 | 40 | 65 | 65 | 145 |
| SLG-2Q | SL-4Q | 70~95 | 6 | 40 | 80 | 80 | 175 |
| SLG-2Q-80 | / | 8 | 80 | 80 | 80 | 185 | |
| SLG-2Q-100 | 10 | 100 | 80 | 100 | 205 | ||
| SLG-3Q | SL-5Q | 120~150 | 8 | 50 | 125 | 85 | 225 |
| SLG-3Q-63 | / | 8 | 63 | 125 | 85 | 239 | |
| SLG-3Q-80 | SL-7Q | 8 | 80 | 125 | 85 | 239 | |
| SLG-3Q-100 | / | 10 | 100 | 125 | 100 | 260 | |
| SLG-4Q | SL-6Q | 185~240 | 8 | 50 | 125 | 85 | 225 |
| SLG-4Q-63 | / | 8 | 63 | 125 | 85 | 239 | |
| SLG-4Q-80 | SL-8Q | 8 | 80 | 125 | 85 | 239 | |
| SLG-4Q-100 | / | 10 | 100 | 125 | 100 | 260 | |
| SLG-5Q | / | 300~400 | 10 | 63 | 130 | 85 | 245 |
| SLG-5Q-80 | 10 | 80 | 130 | 85 | 245 | ||
| SLG-5Q-100 | 10 | 100 | 130 | 100 | 260 | ||
| SLG-6Q-100 | / | 500~630 | 10 | 100 | 160 | 100 | 320 |
| SLG-6Q-125 | 12 | 125 | 160 | 125 | 320 | ||
