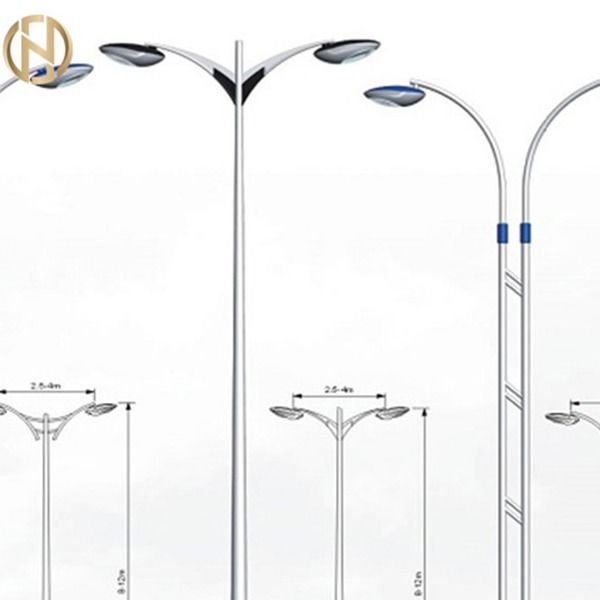

3mm Q235 Octagonal Decorative Street Light Lamp Pole Multipyramidal

3mm Q235 Octagonal Decorative Street Light Lamp Pole Multipyramidal

  • High Light

    Octagonal decorative street light pole

    ,

    3mm Q235 octagonal street light pole

    ,

    3mm Q235 street light lamp post

  • Thickness
    3mm-20mm
  • Product Name
    Steel Street Light Pole
  • Application
    Square,Road,Street And So On
  • Type
    Dual-arm/Single-arm
  • Material
    Q235 Or Other Steel
  • Usage
    Highway Park Street Etc.
  • Shape
    Multi-pyramidal(round,conical Or Others)
  • Ground Mounted
    With Base Plate
  • Certificate
    ISO9001-2008
  • Place of Origin
    CHINA
  • Brand Name
    FUTAO
  • Certification
    ISO 9001
  • Model Number
    LP-041
  • Minimum Order Quantity
    2 pieces
  • Price
    $80 - $1000/piece
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every month

3mm Q235 Octagonal Decorative Street Light Lamp Pole Multipyramidal

Octagonal Conical Steel Street Light Led Lamp Road Pole



Product Description


Any Size Height Solar Street Light Pole ,Hot Dip Galvanized Lamp Post Lamp Column



Our street lighting poles can be customized in various ways according to our clients’ requests. This includes pole length, spray painted colour, shape of the pole shaft, number and style of cross arms. Please refer to the table below for further details.



1: Light pole was designed as anti-seismic 7 degrees & anti-wind 11 level, seismic intensity is B level.
2: According to the design requirements, we selecti the high quality low carbon steel Q235 for our light pole, its silicon content is not higher than 0.04%. After bending forming by a large bending machine, straightness error is not more than 0.05%.
3: Manufacturing technology: light pole was integral molding with smooth lines, light pole corrosion protection was treated by hot galvanized inside and outside, galvanized process includings pickling & hot galvanizing & washing & passivation, etc.. Conforms to the national standard GB/T13912-92. Zinc plating adhesion, conforms to the GB2694-88 request, the anticorrosion life is more than 30 years.



Specific Details




Height (m) Size (mm) Thickness (mm) Flange size (mm) Arm length (mm) Light source power (W) Pole weight (kg)
5 60*140 2.75 240*240*12 800 30 41.24
6 60*140 2.75 260*260*12 800 30 48.78
7 80*160 3 280*280*14 1000 40 72.75
8 90*170 3.25 300*300*14 1000 40 94.71
9 90*180 3.25 350*350*16 1200 60 114.68
10 100*200 3.5 400*400*18 1200 80 153.31
>10 -- -- -- -- -- --





3mm Q235 Octagonal Decorative Street Light Lamp Pole Multipyramidal 0





Production Flow


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburr Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

3mm Q235 Octagonal Decorative Street Light Lamp Pole Multipyramidal 1



Packaging & Shipping




We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



3mm Q235 Octagonal Decorative Street Light Lamp Pole Multipyramidal 2



FAQ



Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.

2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.



Our services


A Quality, loyalty and service is our faith!

B Deemed continuous improvement as our permanent pursuits.

C We can adjust the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.

D We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.



Welcome to our factory!
