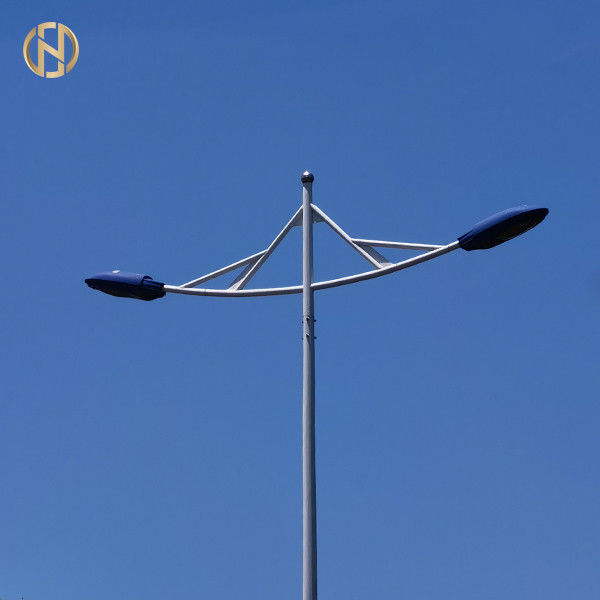

6 - 15M Street Light Pole Anti Corrosion  Steel Light Pole With Various Design

6 - 15M Street Light Pole Anti Corrosion Steel Light Pole With Various Design

  • High Light

    galvanized light pole

    ,

    highway light pole

  • Height
    6m - 15m
  • Arm Length
    1m - 2m
  • Thickness
    2mm - 30mm
  • Type Of Arm
    Single Arm, Twin Arms
  • Material
    Q345B/ A572, Q235B/ A36, Q460, ASTM573, GR65, GR50, SS400, SS490, ST52
  • Shape
    Conical/ Polygonal
  • Wattage Of Lamp
    20w - 400w HPS/ MH Or LED
  • Power
    220v (+-10%)/ 50Hz
  • Place of Origin
    CHINA
  • Brand Name
    Futao
  • Certification
    ISO 9001
  • Model Number
    LP-011
  • Minimum Order Quantity
    2 pieces
  • Price
    $80 - $1000/piece
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every month

6 - 15M Street Light Pole Anti Corrosion Steel Light Pole With Various Design

                            6 - 15M Street Light Pole With Various Design Steel Light Pole



Product Description

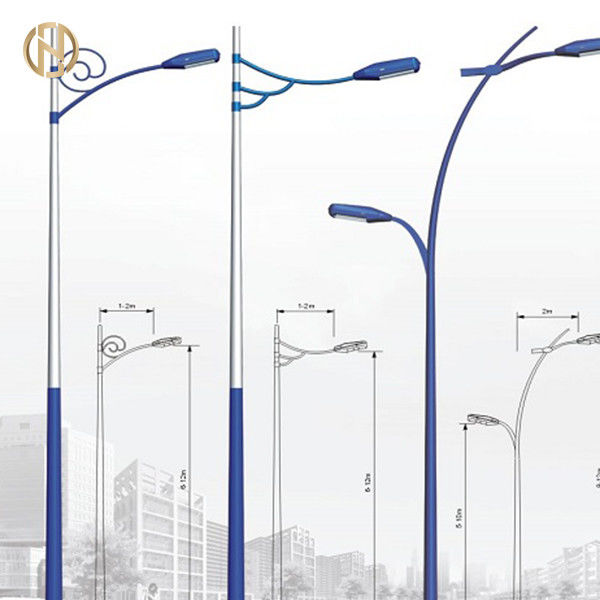

Our street lighting poles can be customized in various ways according to our clients’ requests. This includes pole length, spray painted colour, shape of the pole shaft, number and style of cross arms. Please refer to the table below for further details.



Specific Details


Height

6m - 15m

Length of Arm

1m - 2m

Thickness

2mm - 30mm

Material

Q345/ A572, Q235B/ A36, Q460, ASTM573, GR65, GR50, SS400, SS490, ST52

Shape

Conical/ Polygonal

Wattage of Lamp

20w -400w HPS/ MH or LED

Power

220V (+ - 10%)/ 50Hz

Dimension Tolerances

+- 2%

IP Rating

IP 65

Protection Grade

Grade One

Anti-corrosion Grading

Class Two

Working Conditions for Lighting Fixture

-35 °C to +45 °C

Surface treatment

Hot Dip Galvanized according to ASTM A123 or any other standards as per clients' request

Earthquake Resistance

Against earthquake of grade 8

Wind Resistance

Against wind of 160 km/h

Minimum Yield Strength

355 mpa

Min to Max Tensile Strength

490 mpa - 620 mpa

Standard

ISO 9001

Welding

AWS (American Welding Society ) D1.1



Production Flow


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburr Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

6 - 15M Street Light Pole Anti Corrosion  Steel Light Pole With Various Design 0

6 - 15M Street Light Pole Anti Corrosion  Steel Light Pole With Various Design 1



Packaging & Shipping


We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
