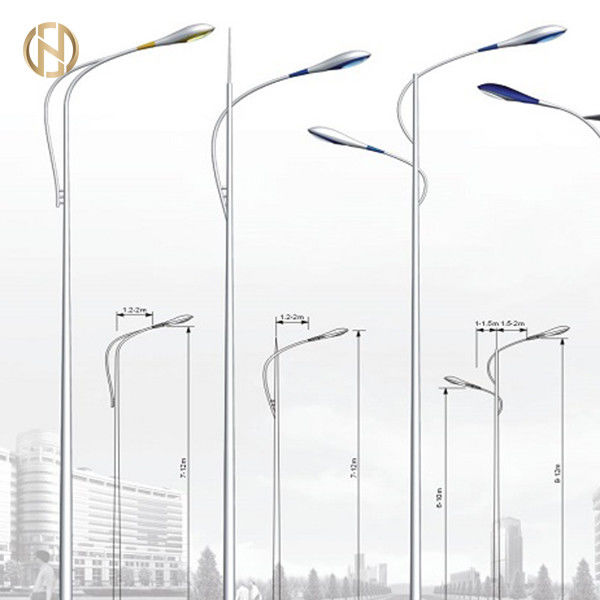

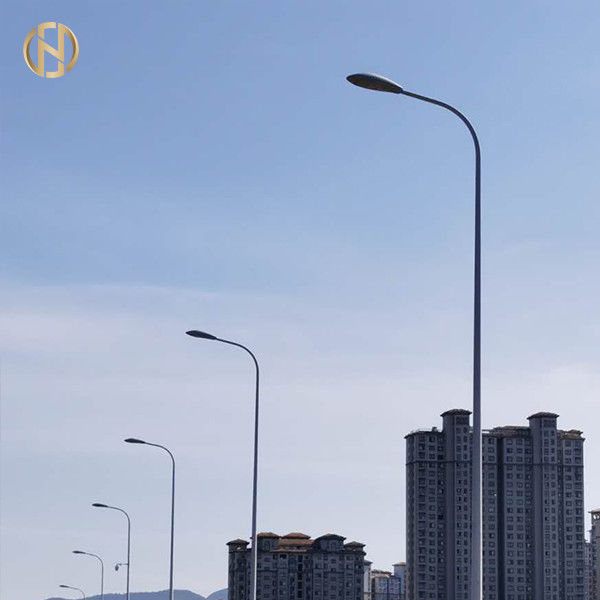

Single / Double Arm Street Light Pole  12M 10M 8M 6M Galvanized Light Pole

Single / Double Arm Street Light Pole 12M 10M 8M 6M Galvanized Light Pole

  • High Light

    galvanized light pole


    octagonal light pole

  • Surface Treatment
    Hot Dip Galvanized And Power Coating
  • Material
    Steel,Steel Q345B
  • Height
  • Thickness
  • Pole's Shape
    Octagonal,round,conical Or Others
  • Welding Standard
    AWS D 1.1
  • Painting Color
    According To The RAL Color Number From Clients
  • Packages
    Blanket Or Plastic Woven Bag Or Cartons Or With Plastic Bubbles
  • Certificate
    SGS And ISO9001
  • Place Of Origin
    Jiangsu China
  • Small Orders
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    2 sets
  • Price
  • Packaging Details
    old blanket or plastic woven bag
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    6000 pcs every month

Single / Double Arm Street Light Pole 12M 10M 8M 6M Galvanized Light Pole

                                                           Single / Double Arm Street Light Pole 12M 10M 8M 6M Galvanized Light Pole


Our street lighting poles can be customized in various ways according to your needs. This includes pole length, spray painted colour, shape of the pole shaft, number and style of cross arms.


Product Specifications


Height From 6m to 12 m
Apply in Highway, freeway, Airport ,seaport,plaza,stadium,square,highway,street way etc
Shape Conical, octagonal, square, cylinder
Material Usually Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52
Lamp power

20 W- 400 W (HPS/MH)

220V (+-10%) /50Hz

Tolerance of the dimension ± 2%
Optical assembly of lighting fixture IP 65
Electroshock resistant protective grade Grade one
The casing anti-corrosion performance Class two
Working atmosphere of lighting fixture -35 °C~+45 °C
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles Insert mode,inner flange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour


Shipping and Packaging


We wrap the pole with a soft material to prevent any external damages to the surface of the poles. We can arrange for delivery services according to ou cleints' preferences.


Single / Double Arm Street Light Pole  12M 10M 8M 6M Galvanized Light Pole 0




Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Single / Double Arm Street Light Pole  12M 10M 8M 6M Galvanized Light Pole 1



Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.

2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.


Our Service

1. Reply your inquiry in 12 working hours.
2. Experienced staffs answer all your questions in fluent English quickly.
3. We have professional engineers to design the poles for clients.UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.
7. Sample time: about 10 workdays after receiving the sample fees.

8. We can ship the poles by sea,air,express or train.


Welcome to our factory!
