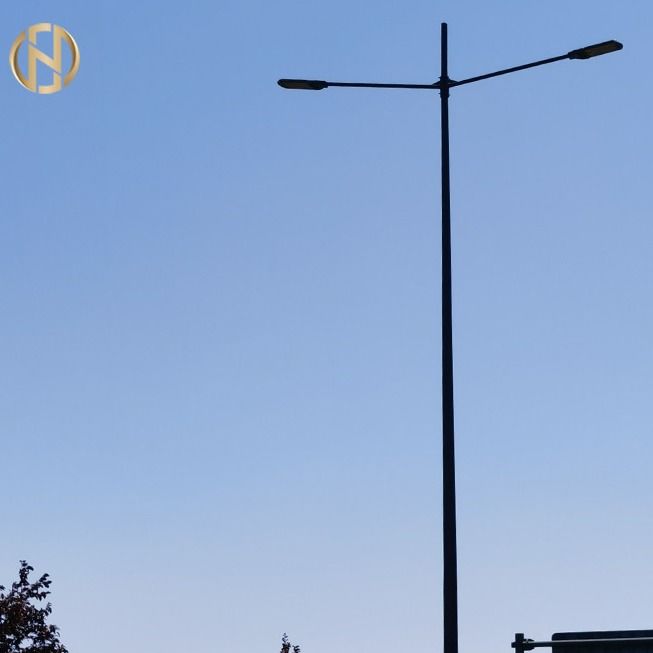

IP65 400W Cast Aluminum Street Lamp Post Spray Painted Colour

IP65 400W Cast Aluminum Street Lamp Post Spray Painted Colour

  • High Light

    IP65 aluminum street light pole

    ,

    IP65 cast aluminum street lamp post

    ,

    400W cast aluminum street lamp post

  • Application
    Square,Road,Street And So On
  • Product Name
    Street Light Pole
  • Thickness
    Custom
  • Operating Humidity
    10% - 90%
  • Material
    Die-casting Aluminum Alloy
  • Welding Standard
    AWS D 1.1
  • Package
    Wrapped By Blanket
  • Ground Mounted
    With Base Plate Or Burial Stype
  • Place of Origin
    CHINA
  • Brand Name
    Futao
  • Certification
    ISO 9001
  • Model Number
    LED-J152
  • Minimum Order Quantity
    2 pieces
  • Price
    $80 - $1000/piece
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every month

IP65 400W Cast Aluminum Street Lamp Post Spray Painted Colour

                                IP65 400W Cast Aluminum Street Lamp Post Spray Painted Colour
Product Description


Any Size Height Solar Street Light Pole ,Hot Dip Galvanized Lamp Post Lamp Column



Our street lighting poles can be customized in various ways according to our clients’ requests. This includes pole length, spray painted colour, shape of the pole shaft, number and style of cross arms. Please refer to the table below for further details.



All of our material are purchased from famous mill factory to assure the quality

  1. A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
  2. Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.

Specific Details



Material

Q235 or Q355 or others

Lamp power

20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz

Torlance of the dimenstion +- 2%
Optical assembly of lighting fixture IP 65
Electroshock resistant protective grade Grade Ⅰ
The casing anti-corrosion performance Class Ⅱ
Working atmosphere of lighting fixture -35 ℃~+45 ℃
Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester
power or any other standard by client required.

Joint of Poles Insert mode,innerflange mode,face to face joint mode .
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding

We has past flaw testing.Internal and external double welding makes the welding
beautiful in shape
Welding Standard:AWS ( American Welding Society ) D 1.1

Thickness 1 mm to 30 mm
Production Process

Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→
Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→
Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.

Style Size and styles are veriable as per customer request


Production Flow


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburr Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

IP65 400W Cast Aluminum Street Lamp Post Spray Painted Colour 0



Packaging & Shipping



Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.


IP65 400W Cast Aluminum Street Lamp Post Spray Painted Colour 1

FAQ




Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.
2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.
