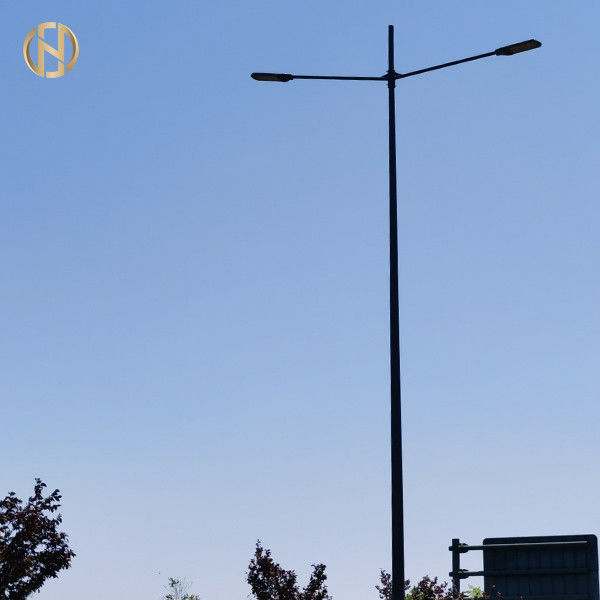

Single Arm / Double Arm 10M Q235 Street Light Pole

Single Arm / Double Arm 10M Q235 Street Light Pole

  • High Light

    10M Q235 Street Light Pole

    ,

    AWS D 1.1 Street Light Pole

  • Product Name
    Steel Street Light Pole
  • Application
    Square,Road,Street And So On
  • Thickness
    3mm-20mm Or Others
  • Tolerance
    +-1% Or Less
  • Welding Standard
    AWS D 1.1
  • Shape
    Round,conical Or Others
  • Ground Mounted
    With Base Plate
  • Material
    Q235 Or Other Steel
  • Place of Origin
    CHINA
  • Brand Name
    Futao
  • Certification
    ISO 9001
  • Model Number
    LP-041-2
  • Minimum Order Quantity
    2 pieces
  • Price
    $80 - $1000/piece
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every month

Single Arm / Double Arm 10M Q235 Street Light Pole

                                                           Hot Dip Galvanized 10M Street Light Pole With Single Arm Or Double Arm

Product Description


Any Size Height Solar Street Light Pole ,Hot Dip Galvanized Lamp Post Lamp Column



Our street lighting poles can be customized in various ways according to our clients’ requests. This includes pole length, spray painted colour, shape of the pole shaft, number and style of cross arms. Please refer to the table below for further details.



All of our material are purchased from famous mill factory to assure the quality

  1. A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
  2. Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.

Specific Details




Material

Q235 or 355 or GR50 or GR65 or others

Lamp power

20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz

Torlance of the dimenstion +- 2%
Optical assembly of lighting fixture IP 65
Electroshock resistant protective grade Grade Ⅰ
The casing anti-corrosion performance Class Ⅱ
Working atmosphere of lighting fixture -35 ℃~+45 ℃
Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester
power or any other standard by client required.

Joint of Poles Insert mode,innerflange mode,face to face joint mode .
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding

We has past flaw testing.Internal and external double welding makes the welding
beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness 1 mm to 30 mm
Production Process

Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→
Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→
Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.

Style Size and styles are veriable as per customer request


Production Flow


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburr Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Single Arm / Double Arm 10M Q235 Street Light Pole 0



Packaging & Shipping


Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.


Single Arm / Double Arm 10M Q235 Street Light Pole 1





Welcome to our factory!
