Insulated Aluminum Branch Earthing Clamp/Ground Clamp J10BD-50-240 to J10DL-50-300 pole accessories

Name: Insulated Aluminum Branch Earthing Clamp/Ground Clamp J10BD-50-240 to J10DL-50-300 pole accessories
Brand: Yixing Futao Metal Structural Unit Co. Ltd
SKU: J10BD-50-240 to J10DL-50-300
Price: 4.00 USD
Availability: InStock

Brand Name:	FUTAO
Model Number:	J10BD-50-240 to J10DL-50-300
MOQ:	10 pieces
Price:	$1 - $7
Delivery Time:	30 workdays
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu China

Certification:

ISO 9001

Type:

J10BD-50-240 To J10DL-50-300

Material:

Hot Dip Galvanized Steel，Plastic, Aluminium

Operation:

Convenient

Color:

Silver，black，yellow，red

Usage:

Cable Appliances

Packaging Details:

Package by the box

Supply Ability:

6000pcs one month

Highlight:

power pole hardware

electric power fittings

Product Description

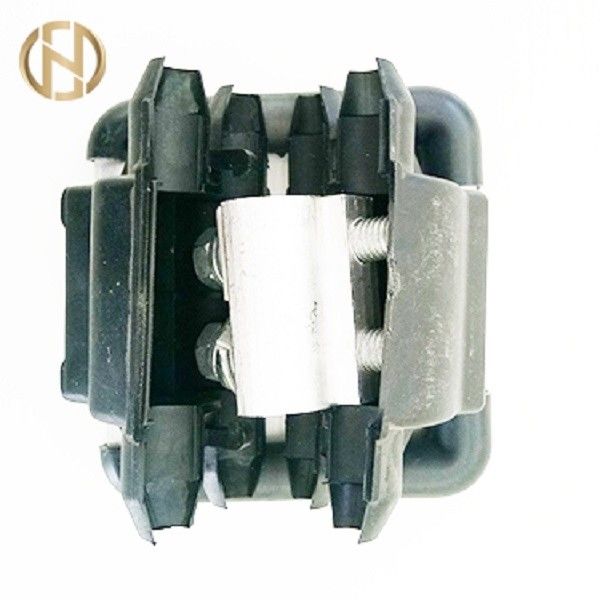

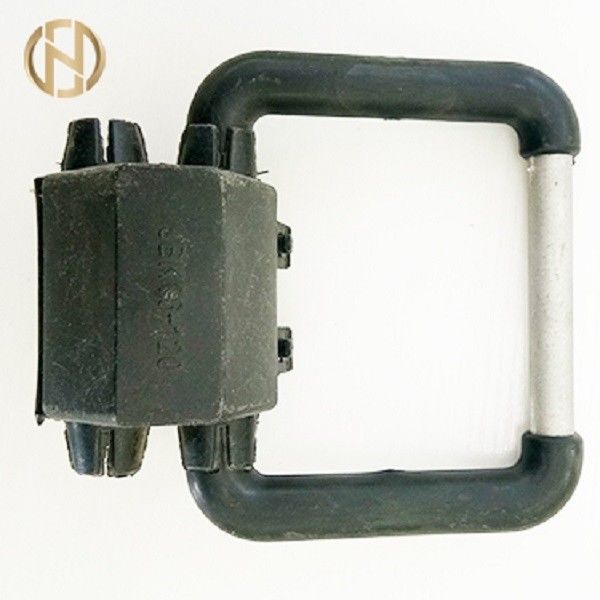

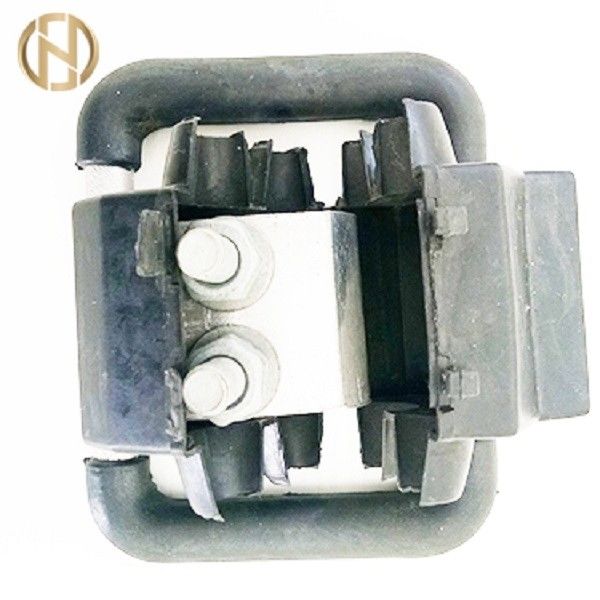

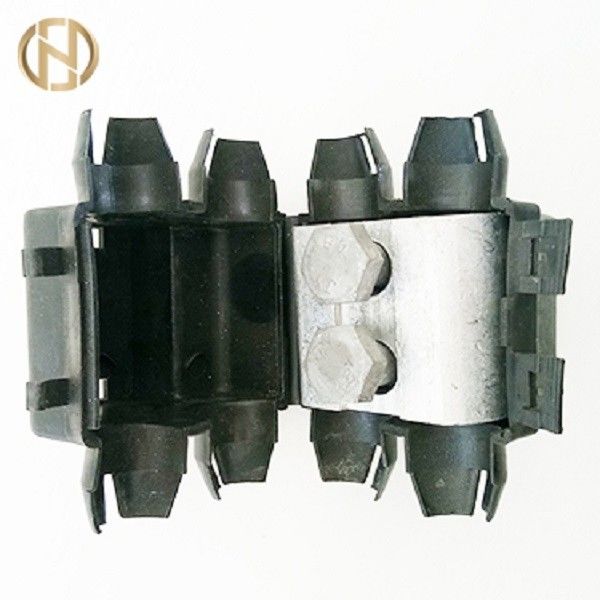

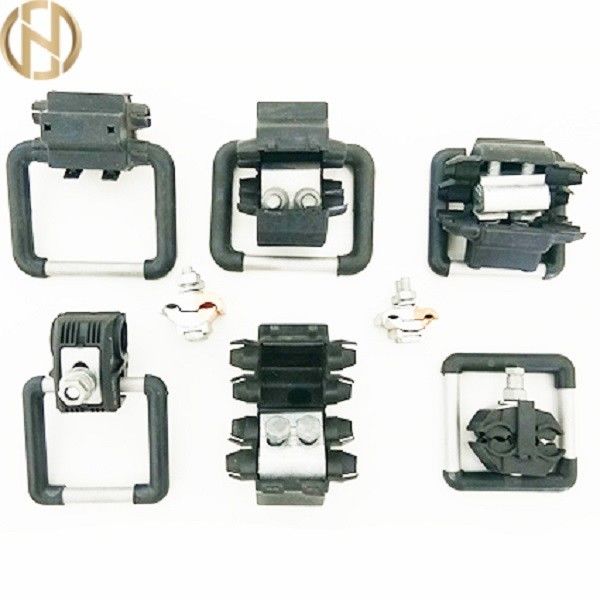

Insulated Aluminum Branch Earthing Clamp/Ground Clamp J10BD-50-240 to

J10DL-50-300 pole accessories

J10DL-50-300 series insulated earthing clamp is suitable for earthing connection on less than or equivalent 10KV overhead insulation cable transmission line as well as discharge connection on high voltage line. The conductor section matched are composed of 50-300mm2. J10BD-50-240 series insulated earthing clamp is equipped with inserted function of branch wire, similar to earthing clamp & parallel groove clamp in usage.

Insulated Aluminum Branch Earthing Clamp/Ground Clamp

Type	Applicable Conductor Section (mm)	Wire-Peeled Breadth (mm)	Remark
J10BD-50-240	50-240	80	Two pieces of earthing branch wire incorporated into one piece of wire
J10BD-16-120	16-120	80
J10DL-50-300	50-300	75	For earthing
