Parallel Groove Clamp For Steel Wire

Name: Parallel Groove Clamp For Steel Wire
Brand: Yixing Futao Metal Structural Unit Co. Ltd
SKU: JBB-1 to JBB-3
Price: 5.00 USD
Availability: InStock

Brand Name:	FUTAO
Model Number:	JBB-1 to JBB-3
MOQ:	10 pieces
Price:	$1 - $9
Delivery Time:	30 workdays
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu China

Certification:

ISO 9001

Type:

JBB-1 To JBB-3

Material:

Hot Dip Galvanized Steel

Operation:

Convenient

Color:

Silver

Usage:

Overhead Transmission Line

Size:

JBB-1 To JBB-3

Packaging Details:

Package by the box

Supply Ability:

3000pcs one month

Highlight:

power pole hardware

electric power fittings

Product Description

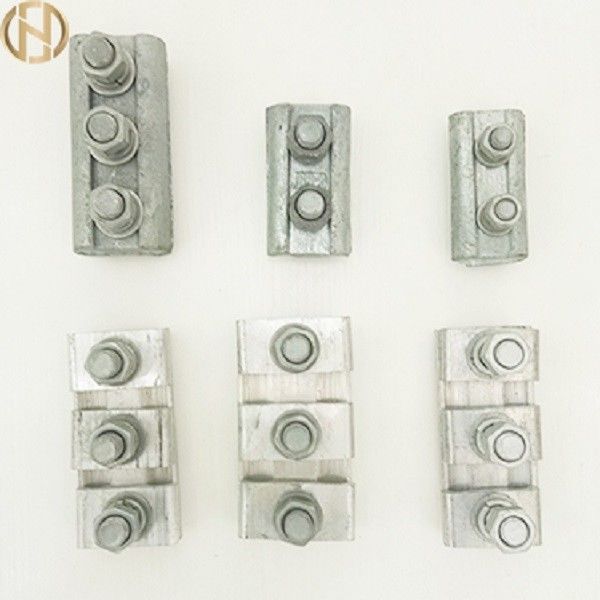

JBB Type Parallel Groove Clamp for Steel Wire pole accessories

JBB type parallel groove clamp for steel wire is adopted hot dip galvanized steel as raw material for production, and it is equipped two bolts, generally suitable for non-sustainable tension connection with middle & small section steel stranded conductor on overhead lightening conductor; on the other hand, it is also applicable for jumping line connection of non straight pole & tower. Based on different materials, parallel groove clamps are made up of iron, aluminum, copper and so on.

JBB Type Parallel Groove Clamp for Steel Wire

Parallel Groove Clamp For Steel Wire 0

Type	Applicable Steel Stranded Wire Section Area (mm2)	Dimension (mm)					Bolt Quantity	Weight (kg)
Type	Applicable Steel Stranded Wire Section Area (mm2)	B	M	L	R	H	Bolt Quantity	Weight (kg)
JBB-1	6.6~7.8	44	12	90	4.5	50	2	0.62
JBB-2	9.6~11.0	50	16	90	6.0	60	2	0.82
JBB-3	13.0~14.0	56	16	124	7.0	65	3	1.90

Parallel Groove Clamp For Steel Wire 1
