UB Type Clevis Hinges / Anchor Shackle Electric Fitting Long Service Life

Name: UB Type Clevis Hinges / Anchor Shackle Electric Fitting Long Service Life
Brand: Yixing Futao Metal Structural Unit Co. Ltd
SKU: UB-7 to UB-10-1
Price: 7.00 USD
Availability: InStock

Brand Name:	FUTAO
Model Number:	UB-7 to UB-10-1
MOQ:	10 pieces
Price:	$1 - $13
Delivery Time:	30 workdays
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu China

Certification:

ISO 9001

Type:

UB-7 To UB-10-1

Material:

Hot Dip Galvanized Steel

Operation:

Convenient

Color:

Silver

Usage:

Overhead Transmission Line

Size:

UB-7 To UB-10-1

Packaging Details:

Package by the box

Supply Ability:

3000pcs one month

Highlight:

power pole hardware

transmission line hardware

Product Description

over fitting UB Series Clevis Hinges/ Anchor Shackle Electric Fitting

UB type clevises are mainly suitable for hanging suspension insulator string (composed of suspension insulator & suspension clamp) on the conductor subjected to the pole or tower; on the other hand, they are also used for hanging tension insulator string (composed of suspension insulator & tension clamp) on the tension conductor subjected to the pole or tower.

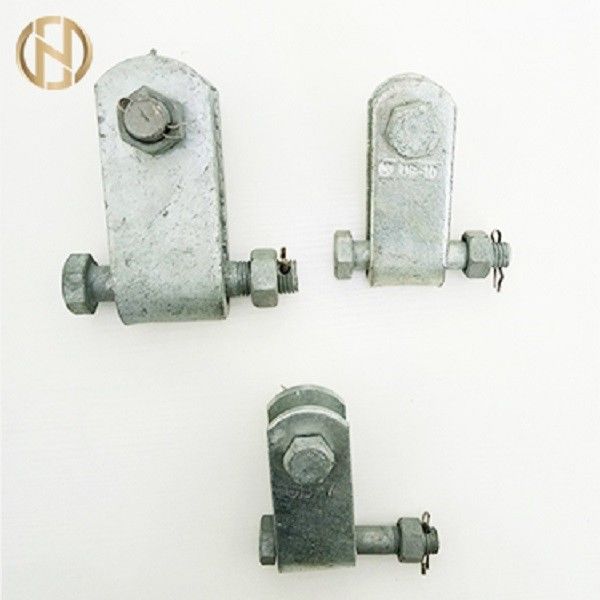

High Quality UB Type Clevises UB Type Clevis Hinges / Anchor Shackle Electric Fitting Long Service Life 0

National Grid Type	Type	Dimension (mm)				Nominal Failure Load (kn)
National Grid Type	Type	L	C	M	H	Nominal Failure Load (kn)
UB-0770	UB-7	45	18	16	70	70
UB-1080	UB-10	45	20	18	80	100
UB12100		45	24	22	100	120
	UB-12	60	24	22	100	120
UB-16100		45	26	24	100	160
	UB-16	60	26	24	100	160
UB-21100		45	26	24	100	210
	UB-21	70	30	27	120	210

Type	Dimension (mm)				Nominal Failure Load (kn)
Type	A	C	M	H	Nominal Failure Load (kn)
UBX-0765	45	18	16	65	70
UBX-1065	45	20	18	65	100
UBX-1275	45	24	22	75	120
UBX-1675	45	26	24	75	160

Type	Dimension (mm)					Nominal Failure Load (kn)	Weight (kg)
Type	C	M	H	A	R	Nominal Failure Load (kn)	Weight (kg)
UB-7-1	20	16	65	30	24	70	0.82
UB-9-1	26	18	75	40	24	90	1.20
UB-10-1	22	18	70	38	24	100	1.10

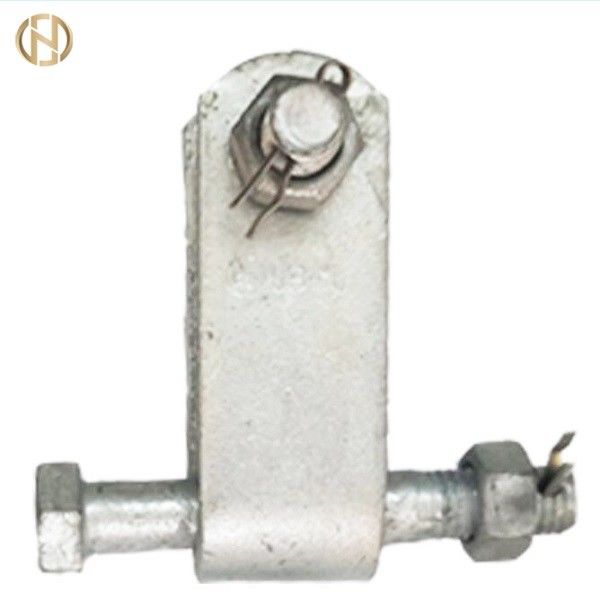

UB Type Clevis Hinges / Anchor Shackle Electric Fitting Long Service Life 1
