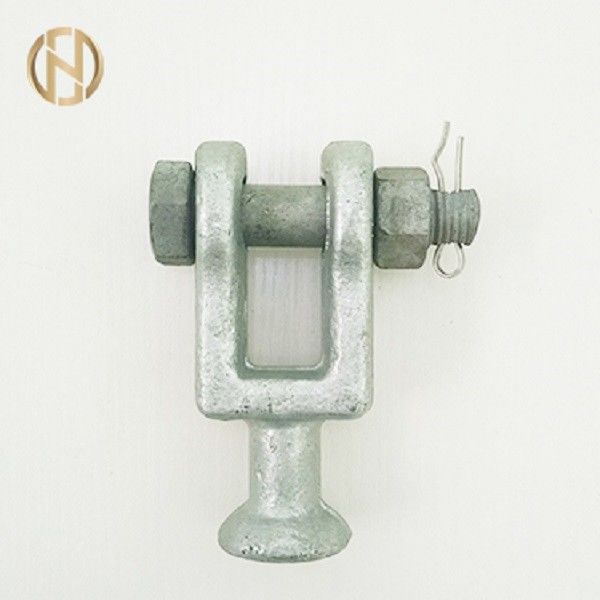

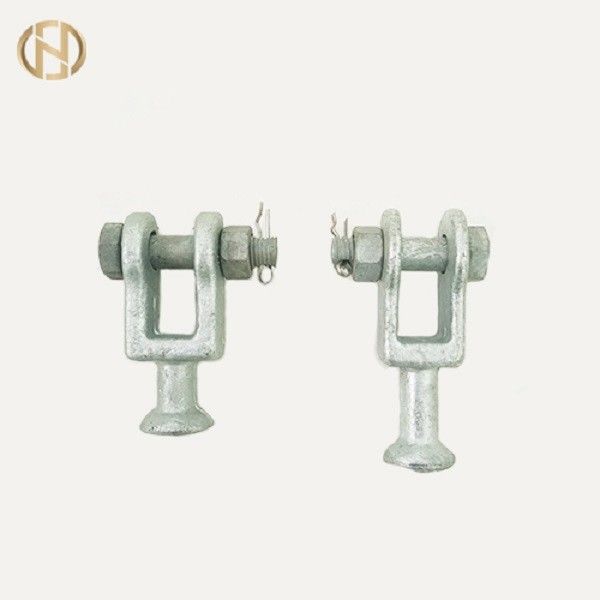

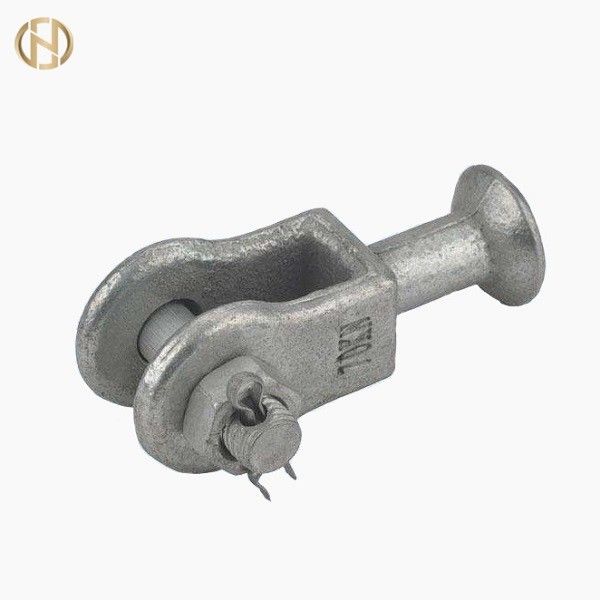

Ball clevis Ball eye U type ball eye QS-0775 TO QS-32120 pole accessories
Technical Data Sheet
| Cata1og No. | main di mensions (mm) |
Nominal destruction Load (kN) |
we ight (kg) | |||||||
| B | Di | D | R | Φ | H1 | H2 | H | |||
| Q-7N | 16 | 16 | 33 3 | 12.5 | 14 | 42 | 50 | 142 | 70 | 1.2 |
| Q-12N | 18 | 18 | 33 3 | 12 | 14 | 56 | 64 | 173 | 120 | 1.5 |
| Q-16N | 20 | 20 | 41.0 | 15 | 14 | 42 | 75 | 168 | 160 | 1.5 |
| National Grid Catalog No. | 85 standard catalog No. |
Ball IEC Code |
main dimensions (m) | Nominal destruction Load (kN) | ||||
| C | Di | D | M | H | ||||
| OS-0775 | Q-7U | 16 | 20 | 17 | 33.3 | 16 | 75 | 70 |
| QS-1075 | 0-10U | 16 | 20 | 17 | 33.3 | 18 | 75 | 100 |
| OS-1275 | 0-12U | 16 | 20 | 17 | 33. 3 | 22 | 75 | 120 |
| OS-1680 | 0-16U | 20 | 22 | 21 | 41.0 | 24 | 80 | 160 |
| 0-21U | 20 | 30 | 21 | 41.0 | 27 | 102 | 210 | |
| 0-30U | 24 | 38 | 25 | 49. 0 | 36 | 110 | 300 | |
| QS-32120 | 24 | 32 | 25 | 49. 0 | 30 | 120 | 320 | |
| National Grid Catalog No. |
Ball IEC Code |
main dimensions (mm) | ||||||
| destruction Load (kN) | ||||||||
| H | Hi | B | Φ | D1 | D | |||
| QPJ-07100 | 16 | 100 | 50 | 16 | 18 | 17 | 33. 3 | 70 |
| 0PJ-10110 | 16 | 110 | 50 | 16 | 20 | 17 | 33. 3 | 100 |
| 0PJ-12110 | 16 | 110 | 50 | 16 | 24 | 17 | 33. 3 | 120 |
| QPJ-16120 | 20 | 120 | 55 | 18 | 26 | 21 | 41 | 160 |
| 0PJ-21120 | 20 | 120 | 60 | 20 | 26 | 21 | 41 | 210 |
| Catalog No. |
Ball IEC Code |
main dimensions (mm) | Nominal |
Weight (kg ) |
||||||
| B | Di | D | Φ1 | Φ | H1 | H | destruction Load (kN) | |||
| Q-7P | 16 | 16 | 17 | 33.3 | 14 | 20 | 40 | 100 | 70 | 1.1 |
| Q-12P | 16 | 18 | 17 | 33.3 | 14 | 24 | 40 | 105 | 120 | 1.3 |
