Durable JNE-101 to JNE 411 Type Insulation Strain Clamp pole accessories

Name: Durable JNE-101 to JNE 411 Type Insulation Strain Clamp pole accessories
Brand: Yixing Futao Metal Structural Unit Co. Ltd
SKU: JNE-101 to JNE 411
Price: 6.00 USD
Availability: InStock

Brand Name:	FUTAO
Model Number:	JNE-101 to JNE 411
MOQ:	10 pieces
Price:	$1 - $12
Delivery Time:	30 workdays
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu China

Certification:

ISO 9001

Type:

JNE-101 To JNE 411

Material:

Hot Dip Galvanized Steel ，aluminum，pe

Operation:

Convenient

Color:

Silver

Usage:

Overhead Transmission Line

Size:

JNE-101 To JNE 411

Packaging Details:

Package by the box

Supply Ability:

3000pcs one month

Highlight:

power pole hardware

electric power fittings

Product Description

PT Type Adjusting Plate Used for Connection Link plate pole accessories

PT type adjusting plate is exclusively used for twin-connected rotation angle insulator string & tension insulator string. On usage, the adjustment of length to adjusting plate depends upon the rotation angle of angle tower to calculate the distance length between the two suspending points subjected to insulator string.

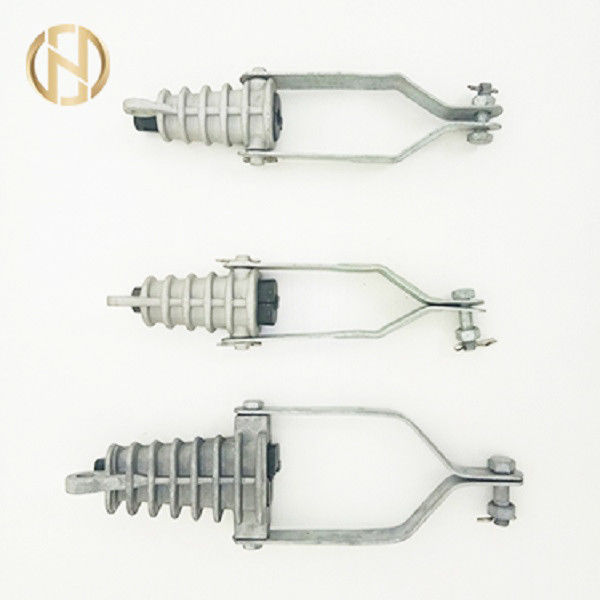

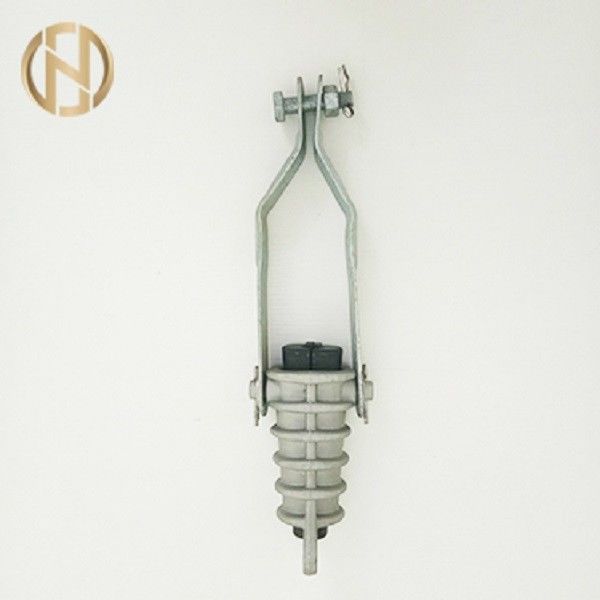

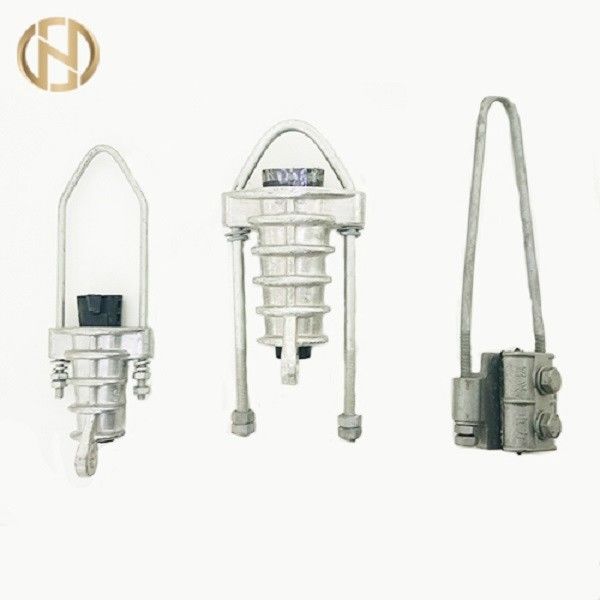

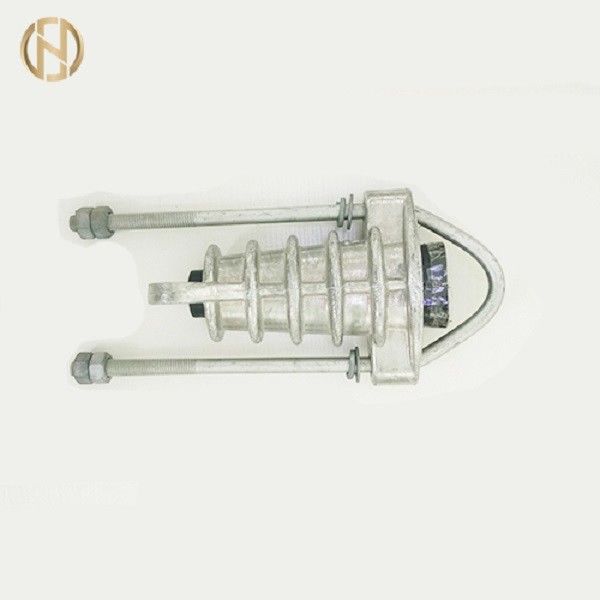

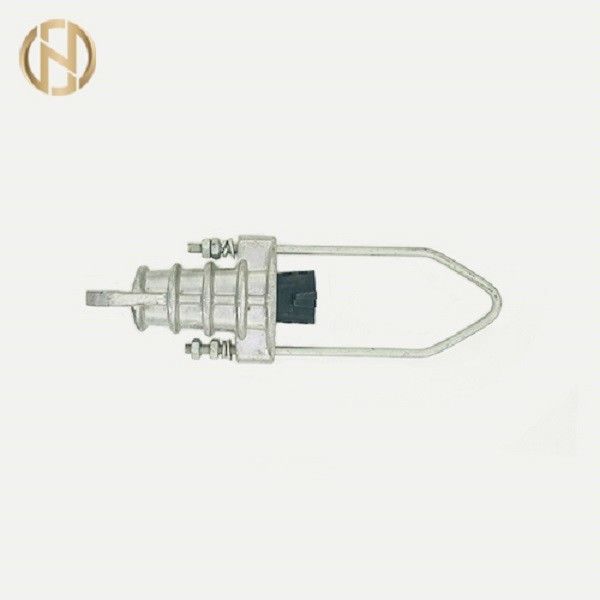

JNE type insulation strain clamp is suitable for fixing & tightening aerial insulation conductor to the tensioning insulator string at the corner termination pole or two ends of the tensioning part, and they are classified as 1KV and 10KV two kinds. The body made of steel & outer figure is of wedge type incoming hole made of stainless steel as seal cover, with high strength well clip & east installation.

JNE Type Insulation Strain Clamp

Type	Inside Wedge Clamping Range (mm)	Nominal Section of Area Wire (mm2)		Nominal Failure Load (kn)
Type	Inside Wedge Clamping Range (mm)	JKLYJ-1KV	JKLYJ-10KV	Nominal Failure Load (kn)
JNE-101	Φ 7~Φ 9.5	16~25	- -	11.0
JNE-102	Φ 9.5~Φ 12.0	35~50	- -
JNE-103	Φ 12.0~Φ 14.0	70	16~25
JNE-104	Φ 12.5~Φ 15.0	- -	35
JNE-205	Φ 14.0~Φ 16.5	95	50	22.0
JNE-206	Φ 15.5~Φ 18.0	120	70
JNE-207	Φ 17.5~Φ 20.0	150	95
JNE-308	Φ 19.0~Φ 21.5	185	120	28.0
JNE-300	Φ 20.5~Φ 23.0	- -	150	28.0
JNE-410	Φ 22.0~Φ 24.5	240	185	45.0
JNE-411	Φ 24.0~Φ 26.5	- -	240	45.0
