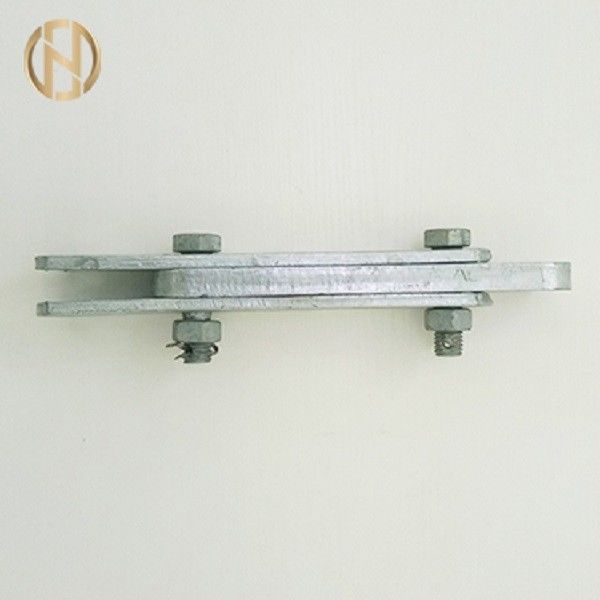

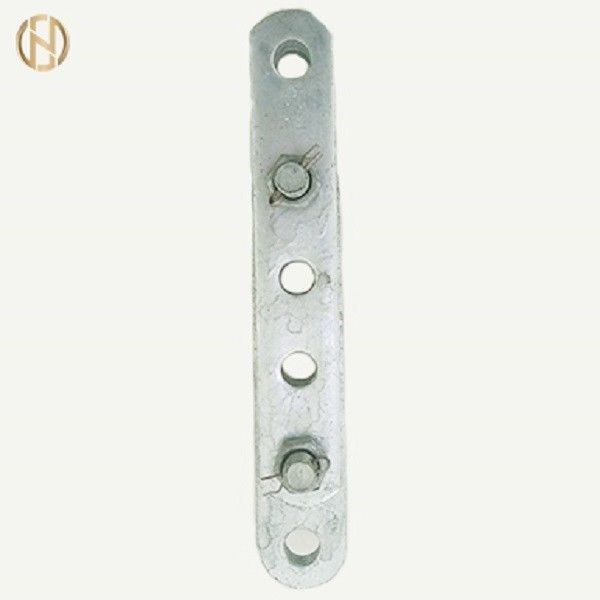

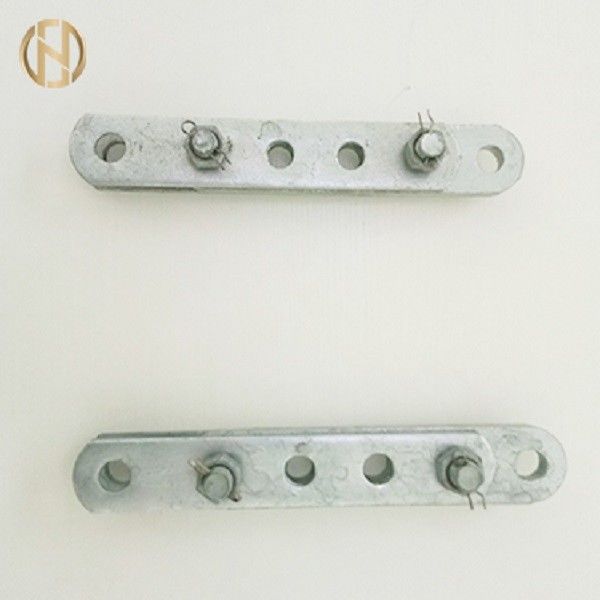

PT Type Adjusting Plate Used for Connection Link plate pole accessories
PT type adjusting plate is exclusively used for twin-connected rotation angle insulator string & tension insulator string. On usage, the adjustment of length to adjusting plate depends upon the rotation angle of angle tower to calculate the distance length between the two suspending points subjected to insulator string.
PT Type Adjusting Plate Used for Connection
| National Grid Type | No. 85 Standard Type | Dimension (mm) | Nominal Failure Load (kn) | ||||||
| C | B | M | Φ | L | L1 | L2 | |||
| PT-07240-375 | PT-7 | 20 | 16 | 16 | 18 | 45 | 45 | 60 | 70 |
| PT-10265-415 | PT-10 | 20 | 16 | 18 | 20 | 50 | 50 | 65 | 100 |
| PT-12330-415 | PT-12 | 20 | 16 | 22 | 24 | 75 | 60 | 75 | 120 |
| PT-16370-580 | PT-16 | 22 | 18 | 24 | 26 | 80 | 70 | 80 | 160 |
| PT-21 | 30 | 26 | 27 | 30 | 70 | 70 | 90 | 200 | |
| PT-21370-580 | 24 | 20 | 24 | 26 | 80 | 70 | 80 | 210 | |
| PT-25420-660 | 28 | 24 | 27 | 30 | 90 | 80 | 90 | 250 | |
| PT-30 | 38 | 32 | 36 | 39 | 80 | 80 | 100 | 300 | |
| PT-32420-660 | 32 | 28 | 30 | 33 | 90 | 80 | 90 | 320 |
|
