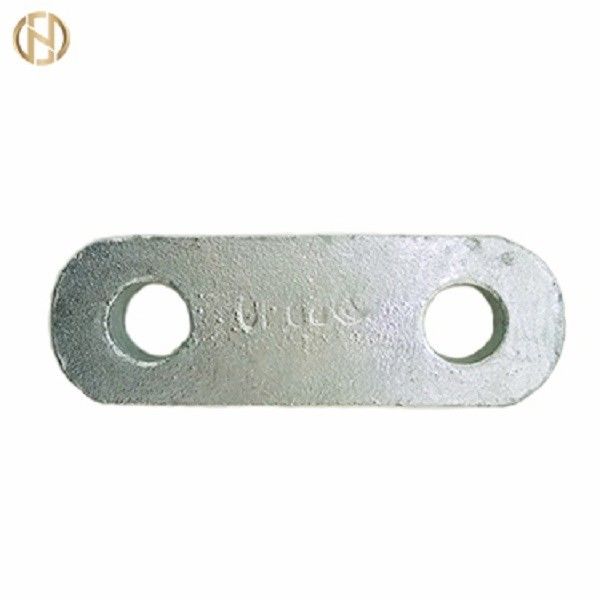

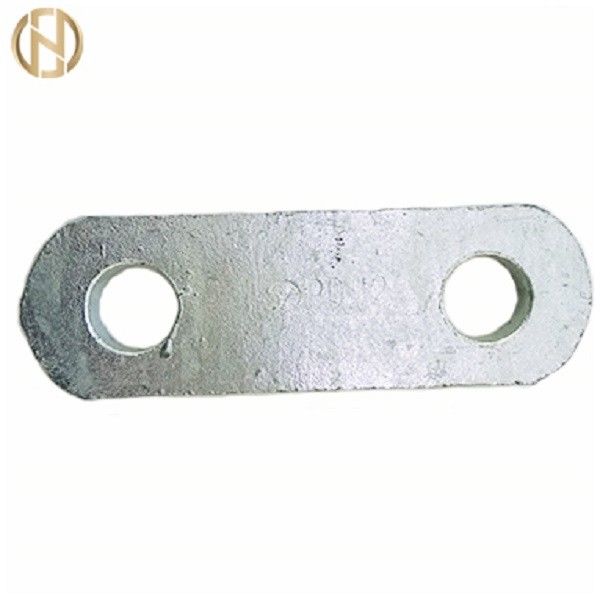

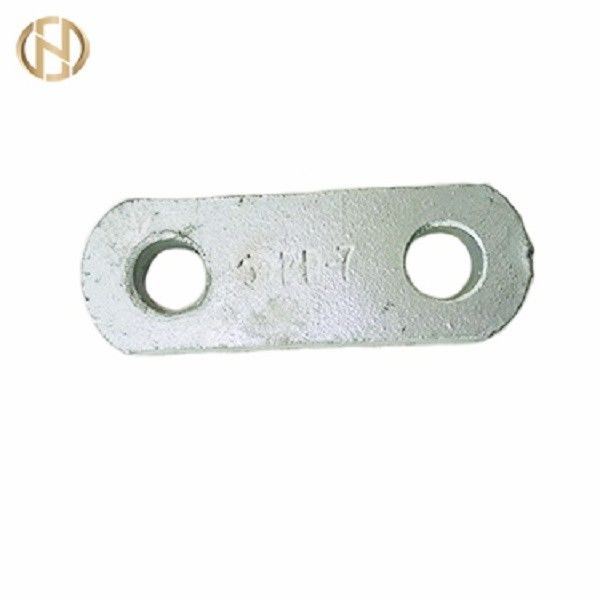

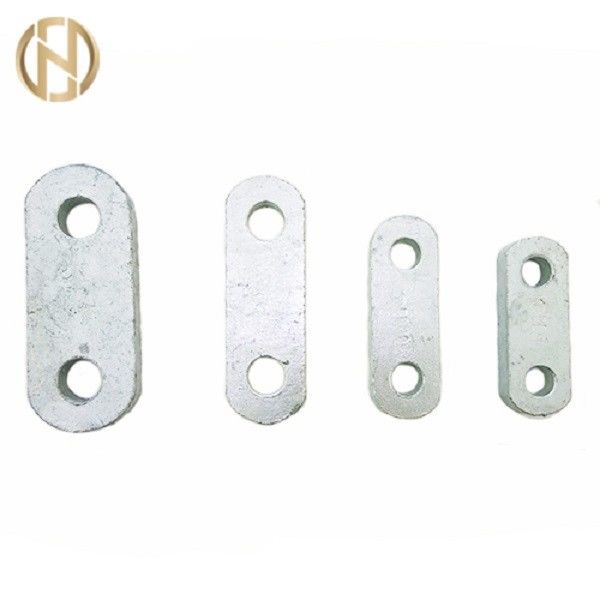

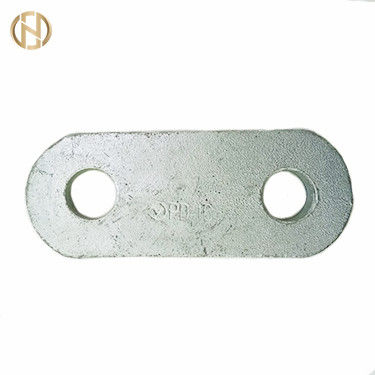

dip galvanized steel Parallel Structure PD Type Clevis/Link plate pole accessories

dip galvanized steel Parallel Structure PD Type Clevis/Link plate pole accessories

  • High Light

    electric power fittings

    ,

    transmission line hardware

  • Type
    PD 7-16
  • Material
    Hot Dip Galvanized Steel
  • Operation
    Convenient
  • Color
    Silver
  • Usage
    Overhead Line Accessories
  • Size
    PD 7-16
  • Place of Origin
    Jiangsu China
  • Brand Name
    FUTAO
  • Certification
    ISO 9001
  • Model Number
    PD 7-16
  • Minimum Order Quantity
    10 pieces
  • Price
    $1 - $6
  • Packaging Details
    Package by the box
  • Delivery Time
    30 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    6000pcs one month

dip galvanized steel Parallel Structure PD Type Clevis/Link plate pole accessories

dip galvanized steel Parallel Structure PD Type Clevis/Link plate pole accessories





PD Type Clevises are widely used for connection of conductors, ground wire to insulator strings or hanging to the tower.



                                                                          Technical Parameters



Model Dimension(mm)

Nominal failure

load(kN)

Weight(kg)
A B Φ R L
PD1-7 44 16 18 20 80 70 0.57
PD-16 64 18 26 26 100 160 1.28
PD-2109 72 26 30 30 95 210 2.07
PD1-3018 100 32 39 45 180 300 5.90
PD-5020 100 38 45 45 200 500 8.90
PD-60 120 42 51 51 160 600 9.80
Model Dimension(mm)

Nominal failure

load(kN)

Weight(kg)
B Φ L
PD-7C 16 18 100 70 0.67
PD-10C 18 20 110 100 0.86
PD-12C 20 24 130 120 1.05
