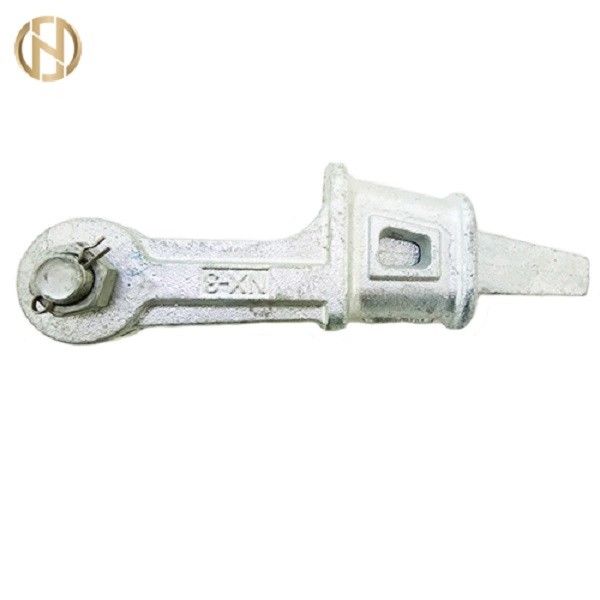

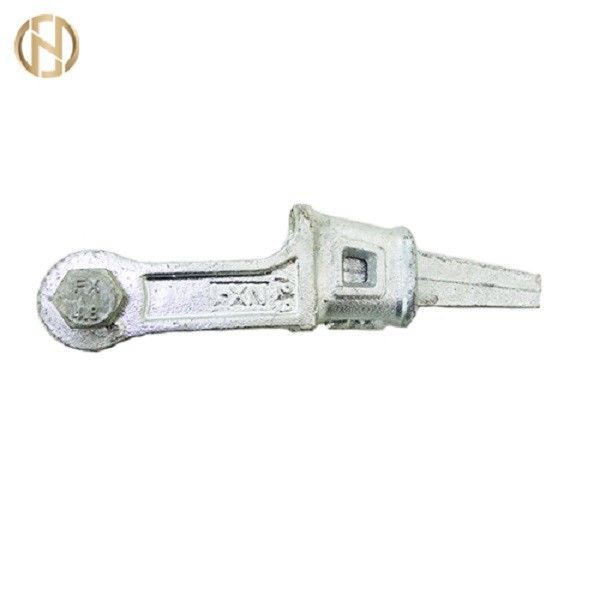

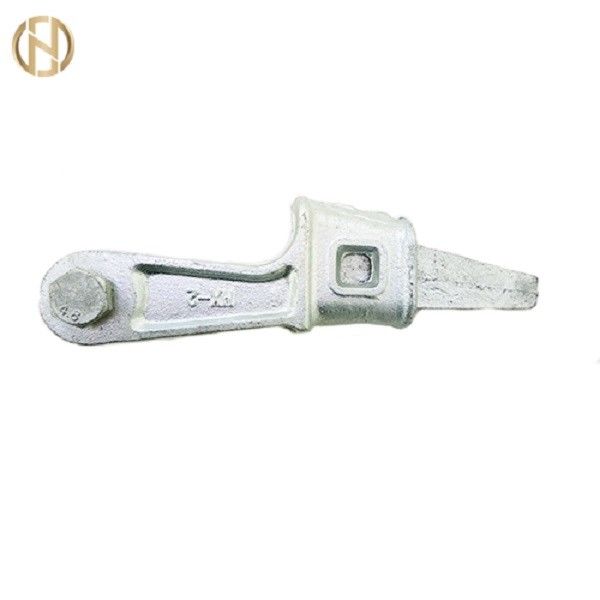

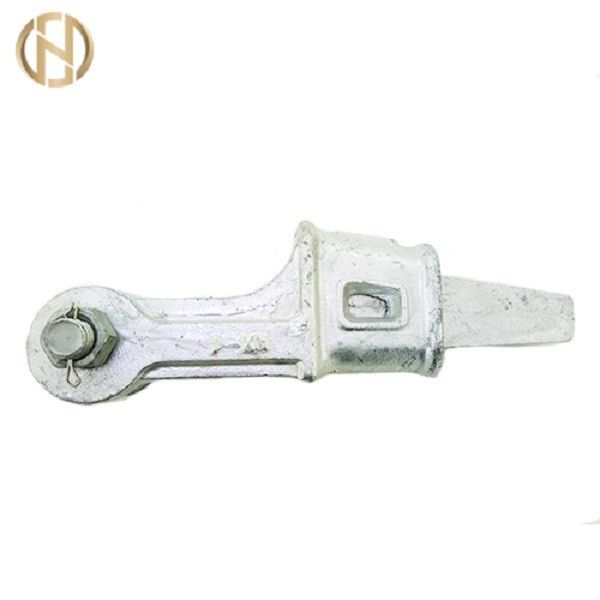

Wedge Type Guy Wire Clamp For Galvanized Iron Wire Strands Installation

Name: Wedge Type Guy Wire Clamp For Galvanized Iron Wire Strands Installation
Brand: Yixing Futao Metal Structural Unit Co. Ltd
SKU: NX-1 NX-2 NX-3 NX-4
Price: 6.00 USD
Availability: InStock

Brand Name:	FUTAO
Model Number:	NX-1 NX-2 NX-3 NX-4
MOQ:	1 pieces
Price:	$1 - $11
Delivery Time:	30 workdays
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu China

Certification:

ISO 9001

Type:

NX-1 NX-2 NX-3 NX-4

Material:

Hot Dip Galvanized Steel

Operation:

Convenient

Color:

Silver

Usage:

Overhead Line Accessories

Size:

NX-1 NX-2 NX-3 NX-4

Packaging Details:

Package by the box

Supply Ability:

3000pcs one month

Highlight:

power pole hardware

electric power fittings

Product Description

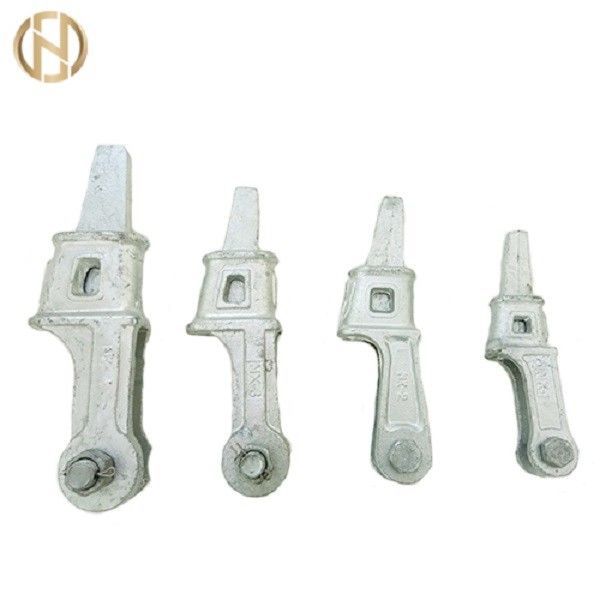

NX-1 NX-2 NX-3 NX-4 Type Wedge Type Guy Wire Clamp pole accessories

NX type wedge type guy wire clamp is used for installation of galvanized iron wire strands as well as fixture of overhead ground wire & guy grip on guy-strained tower; it makes use of arm force subjected to the wedge for fastening the galvanized iron wire strands into the clamp.

NX Type Wedge Type Guy Wire Clamp

Type	Industry Standard Type	Applicable Galvanized Iron Wire Strands		Dimension (mm)				Nominal Failure Load (kn)	Weight (kn)
Type	Industry Standard Type	Section Area (mm2)	Outside Diameter (mm)	C	M	L	R	Nominal Failure Load (kn)	Weight (kn)
NX-1	NE-1	25~35	Φ6.6~7.8	18	16	150	6.0	45	1.19
NX-2	NE-2	50~70	Φ9.0~11.0	20	18	180	7.3	88	1.76
NX-3		100~125	Φ13.0~14.0	24	24	200	7.3	143	3.20
NX-4		135~150	Φ15.0~16.0	28	27	220	8.0	164	5.30

Type	Applicable Galvanized Iron Wire Strands		Dimension (mm)				Nominal Failure Load (kn)	Weight (KN)
Type	Section Area (mm2)	Outside Diameter (mm)	C	M	L	R	Nominal Failure Load (kn)	Weight (KN)
NX-1L	25~35	Φ6.6~7.8	18	16	150	6.0	45	1.19
NX-2L	50~70	Φ9.0~11.0	20	18	180	7.3	88	1.76
NX-3L	100~125	Φ13.0~14.0	24	24	200	7.3	143	3.20
NX-4L	135~150	Φ15.0~16.0	28	27	220	8.0	164	5.30
