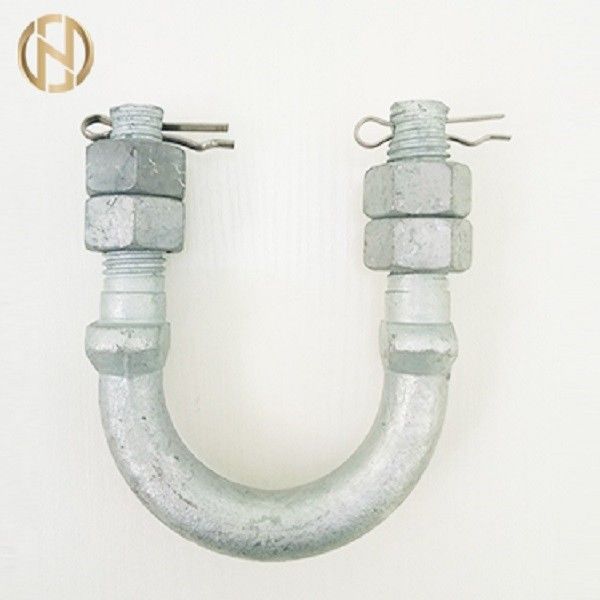

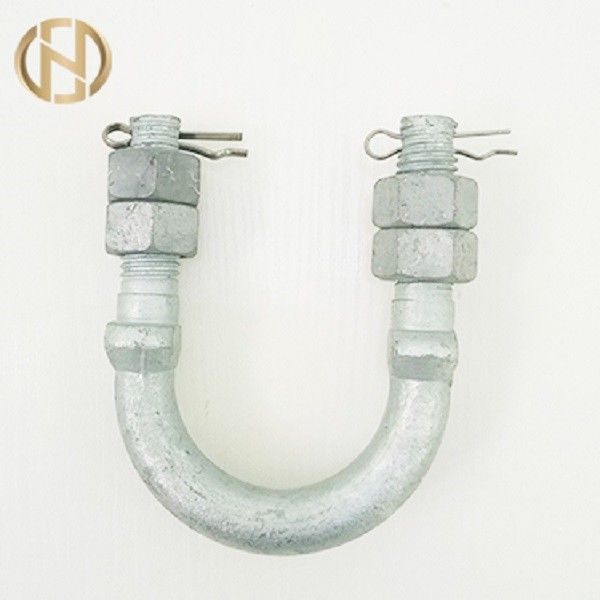

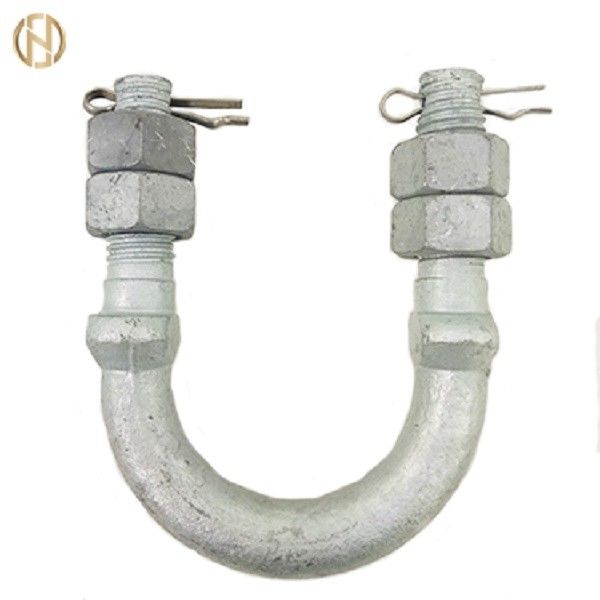

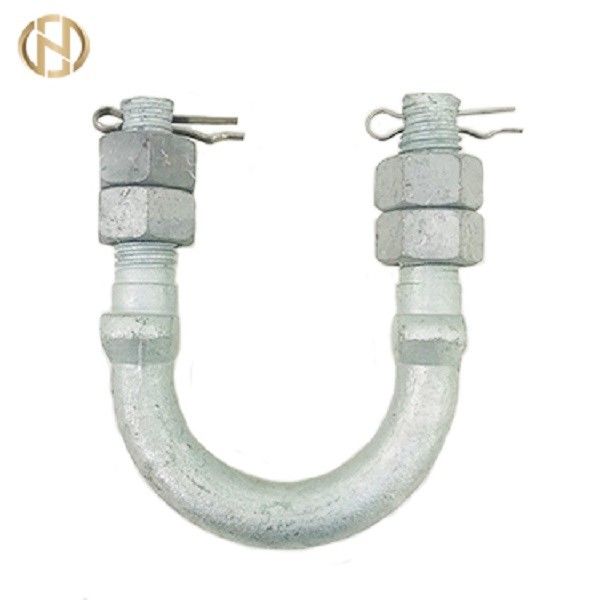

Silver Color Pole Accessories U Type Bolts For Tower Fasteners Tower Fittings
| Model |
Dimension(mm) |
Nominal failure
Load (kN)
|
Weight(kg) |
| C |
M |
D |
H2 |
H1 |
X |
Y |
Z |
| U-1670 |
70 |
16 |
16 |
75 |
110 |
16 |
3.0 |
30 |
|
| U-1680 |
80 |
16 |
16 |
60 |
90 |
16 |
3.0 |
30 |
0.53 |
| U-1870 |
70 |
18 |
18 |
75 |
110 |
18 |
3.5 |
35 |
|
| U-1880 |
80 |
18 |
18 |
75 |
110 |
18 |
3.5 |
35 |
0.83 |
| U-2080 |
80 |
20 |
20 |
80 |
120 |
24 |
4.9 |
47 |
1.08 |
| U-2280 |
80 |
22 |
22 |
90 |
130 |
28 |
6.5 |
57 |
1.30 |
|
UJ Type
|
| Model |
Dimension (mm) |
Nominal failure
Load (kN)
|
Weight (kg) |
| C |
M |
D |
H2 |
H1 |
X |
Y |
Z |
| UJ-1880 |
80 |
18 |
18 |
50 |
105 |
18 |
5.3 |
35 |
0.85 |
| UJ-2080 |
80 |
20 |
20 |
60 |
120 |
24 |
7.4 |
47 |
1.10 |
| UJ-2080 |
80 |
22 |
22 |
65 |
127 |
28 |
10.8 |
57 |
1.40 |
|
Tip: The cotter pin is made of stainless steel, other parts are made of hot-dip galvanized steel.
