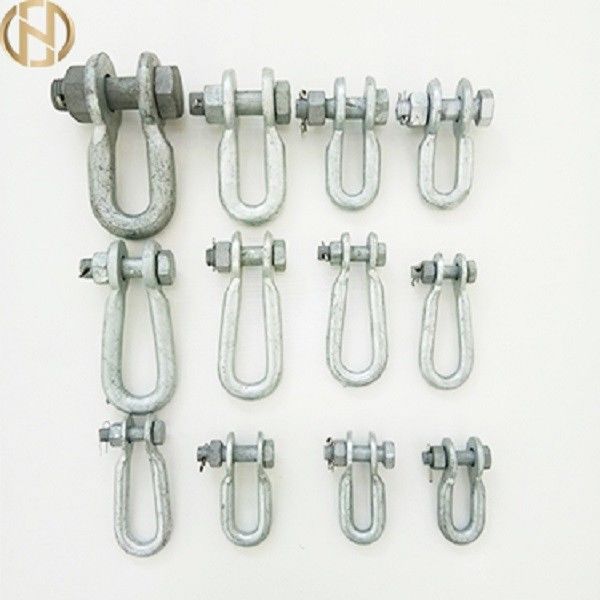

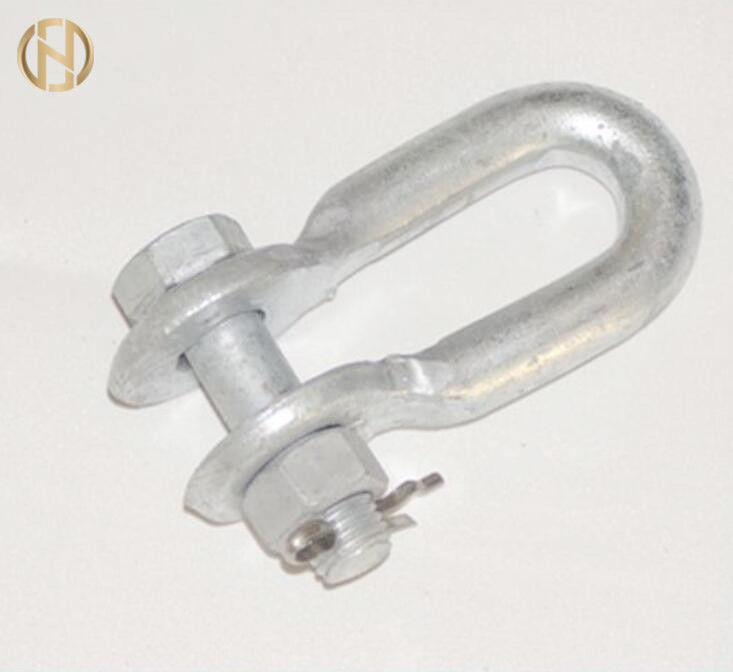

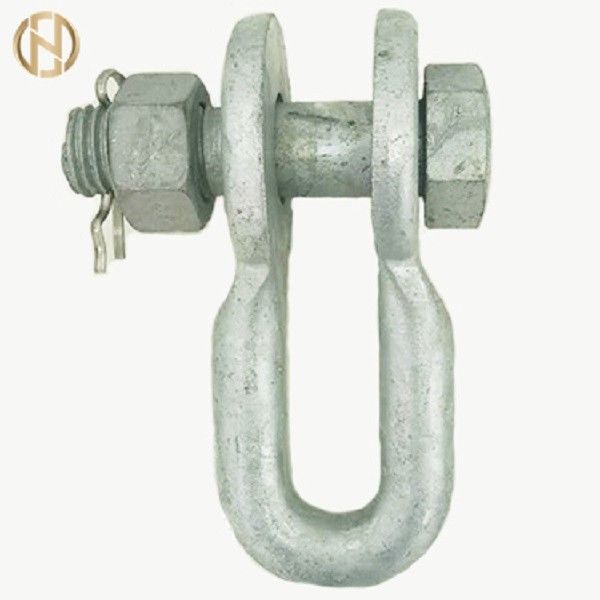

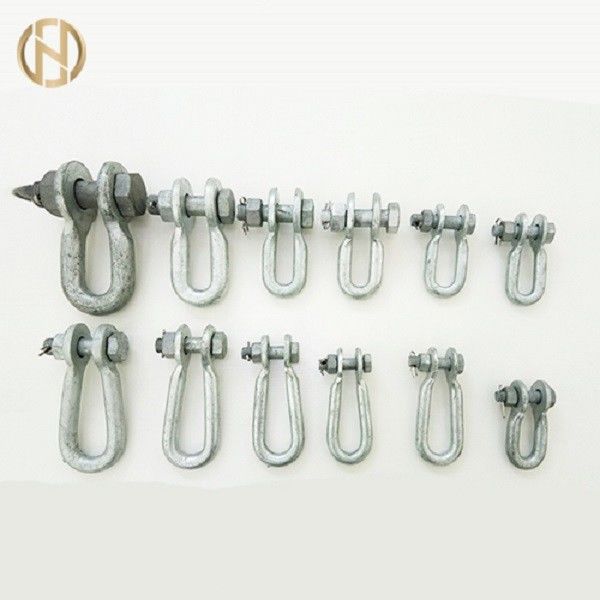

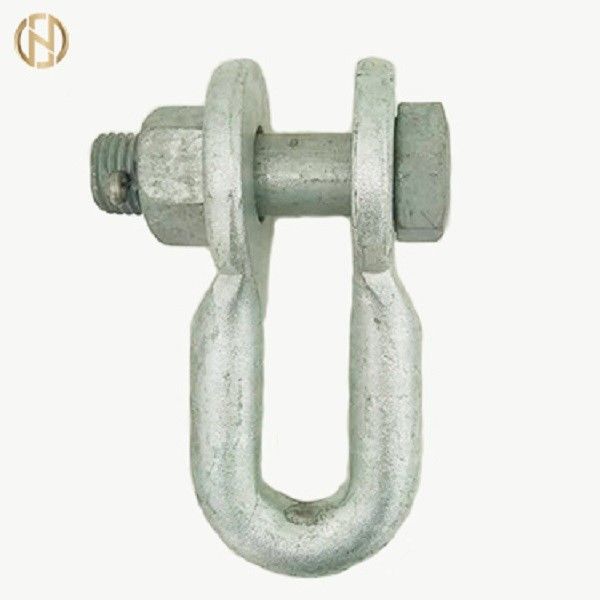

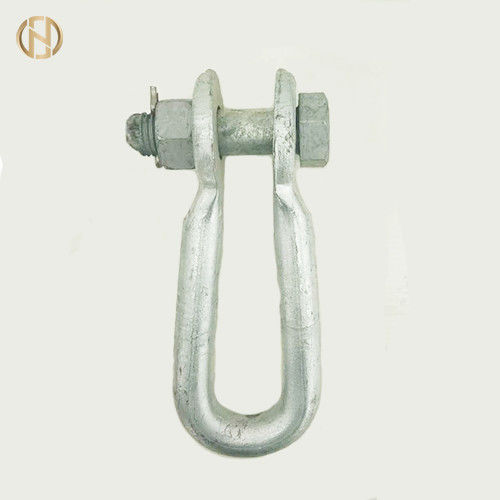

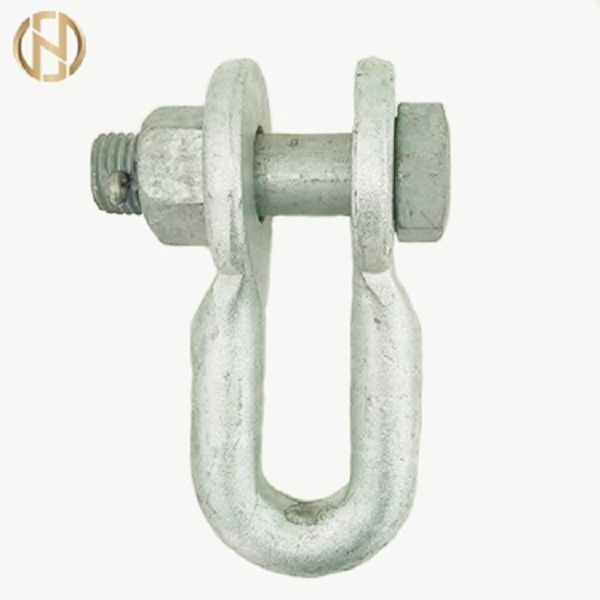

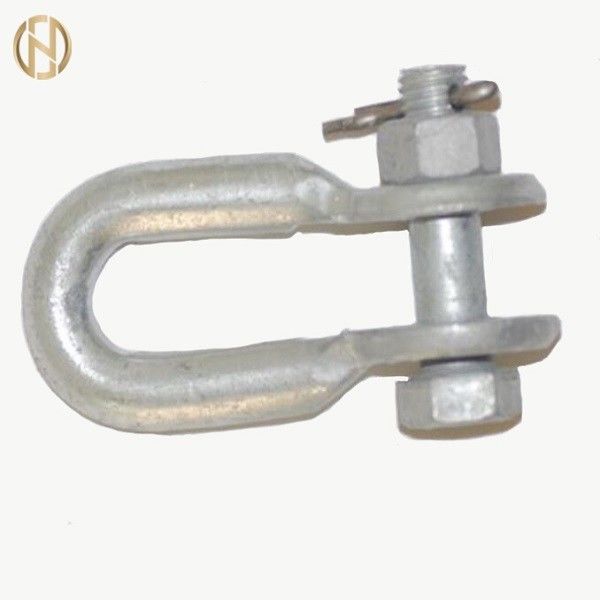

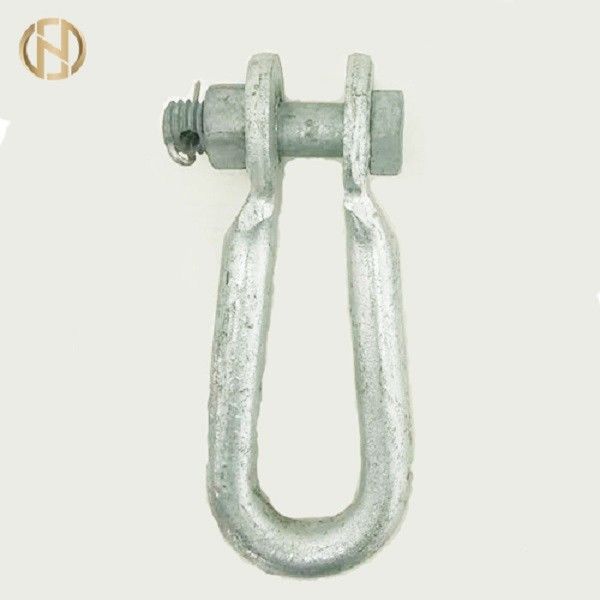

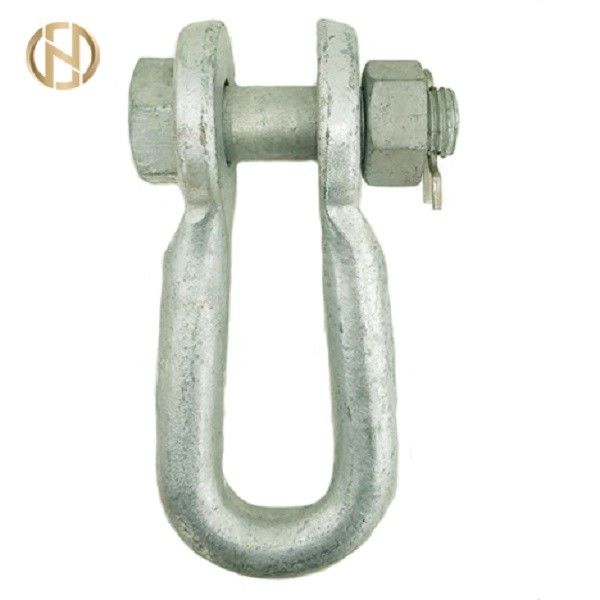

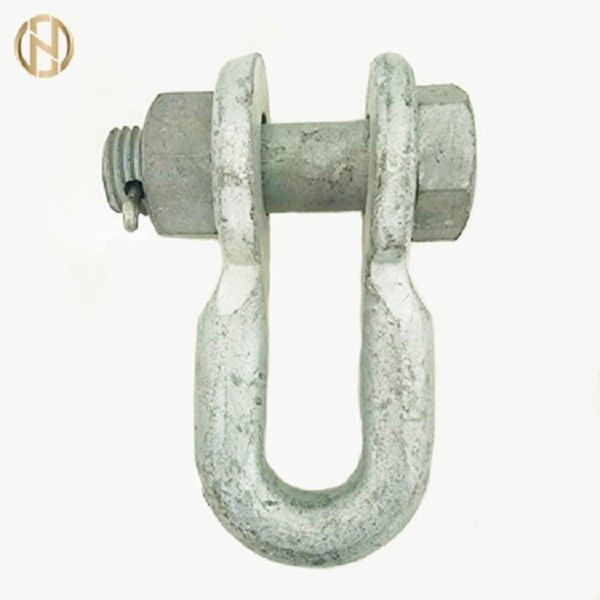

Bolt Type Anchor Shackle with safety pin U UL type Pole accessories
UL Type Anchor Shackle is used for connecting insulator string of transformer substation to overhead transmission line or fixing stranded wire to pole.
Model specifications and technical parameters for Anchor Shackle(type UL)
| Type no | Dimension(mm) |
Nominal failure load(kN) |
Weight (kg) |
||||
| C | D | H | R | r | |||
| UL-7 | 20 | 16 | 120 | 22 | 15 | 70 | 0.65 |
| UL-10 | 22 | 18 | 140 | 24 | 17 | 100 | 1.01 |
| UL-12 | 24 | 20 | 140 | 30 | 18 | 120 | 1.34 |
| UL-16 | 26 | 22 | 140 | 32 | 19 | 160 | 1.70 |
| UL-21 | 30 | 24 | 160 | 36 | 22 | 210 | 2.59 |
