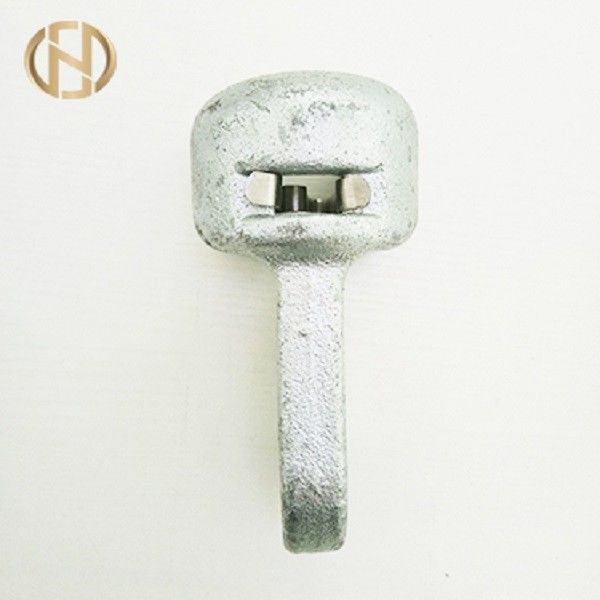

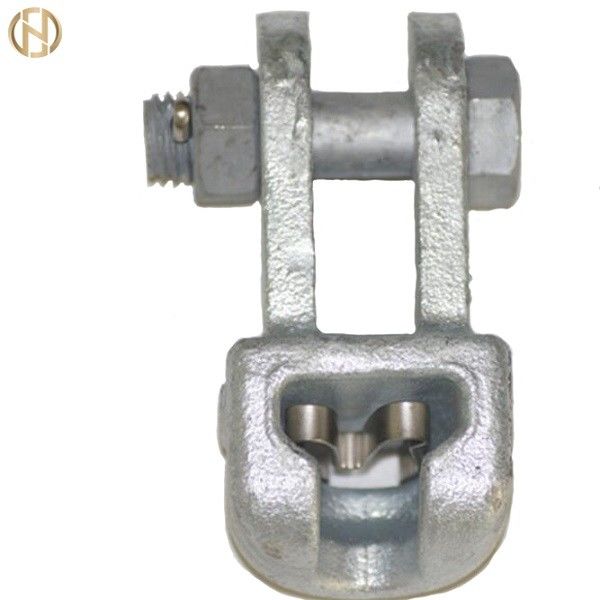

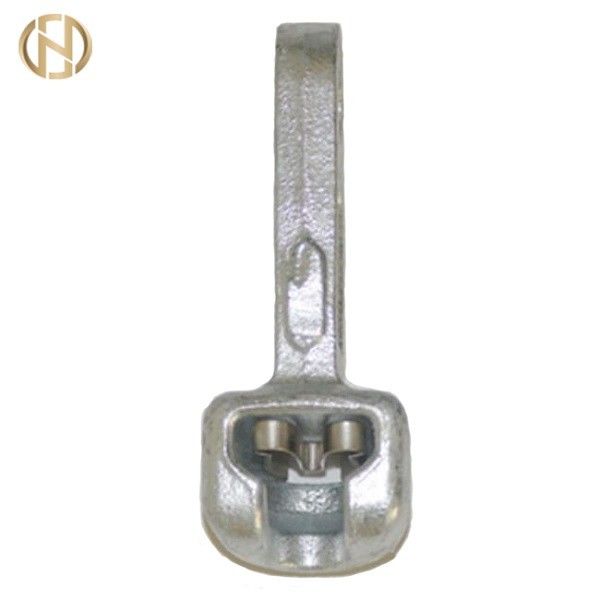

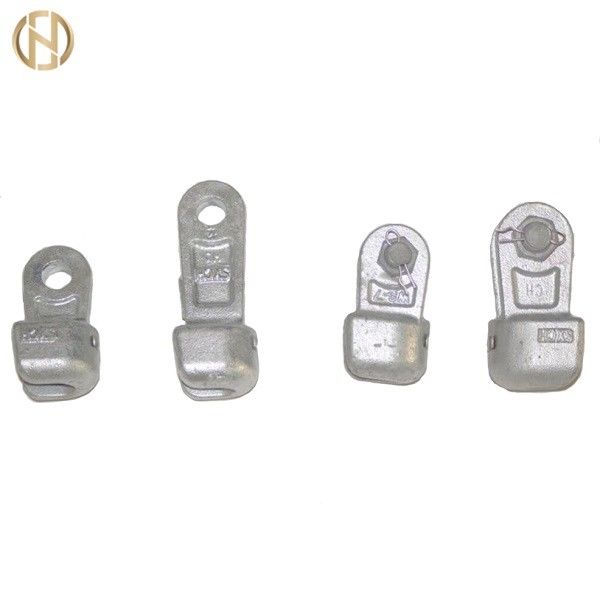

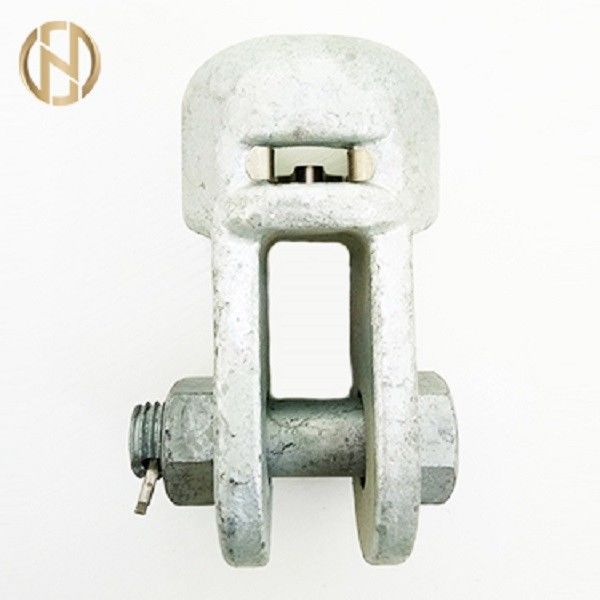

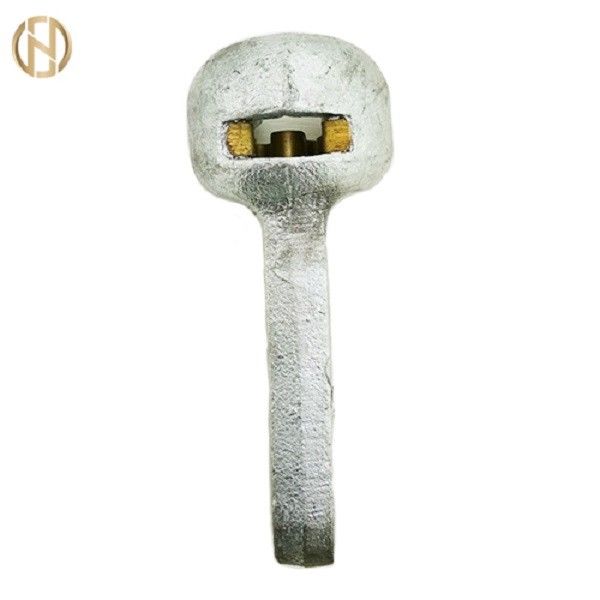

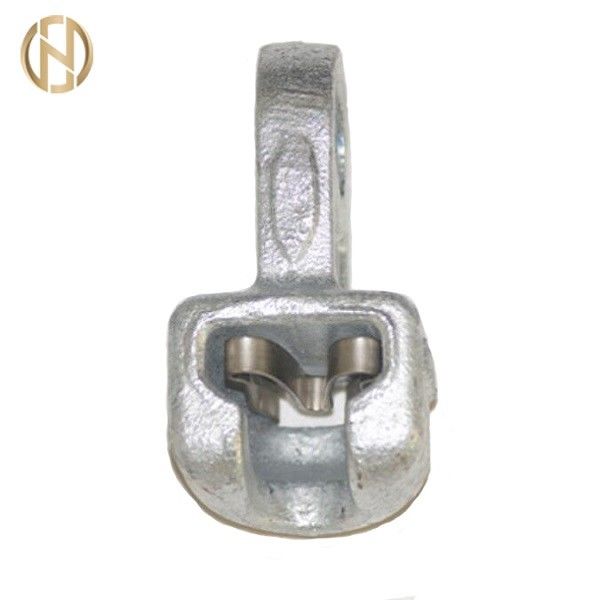

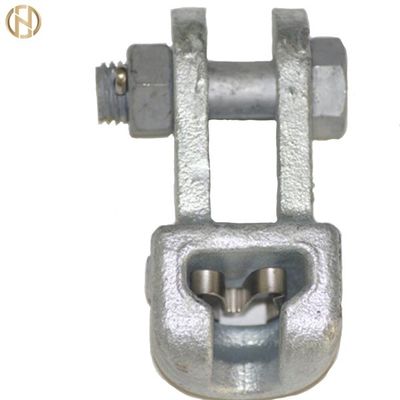

Hot Dip Galvanized Steel Socket Clevis Eye Convenient For Insulator

Hot Dip Galvanized Steel Socket Clevis Eye Convenient For Insulator

  • High Light

    power pole hardware

    ,

    electric power fittings

  • Type
    WS-0770 To WS-42120
  • Material
    Hot Dip Galvanized Steel
  • Operation
    Convenient
  • Color
    Silver
  • Usage
    Overhead Line Accessories
  • Size
    WS-0770 To WS-42120
  • Place of Origin
    Jiangsu China
  • Brand Name
    FUTAO
  • Certification
    ISO 9001
  • Model Number
    WS-0770 to WS-42120
  • Minimum Order Quantity
    1 pieces
  • Price
    $1 - $20
  • Packaging Details
    Package by the box
  • Delivery Time
    30 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000pcs one month

Hot Dip Galvanized Steel Socket Clevis Eye Convenient For Insulator

WS-0770 to WS-42120 Type Socket Clevis Eye Ploe accessories





WS type socket clevis eye is used for connection with the steel foot subjected to the bottom of ball & socket-shaped insulator (ball head). According to different usage conditions & structure, socket clevis eyes are composed of single series type & double-series type.


WS Type Socket Clevis Eye

Hot Dip Galvanized Steel Socket Clevis Eye Convenient For Insulator 0

National Grid Type No. 85 Standard Type Size of Coupling Dimension (mm) Nominal Failure Load (kn)
C C1 C2 M H
WS-0770 WS-7 16 18 19.2 34.5 16 70 70
WS-1085 WS-10 16 20 19.2 34.5 18 85 100
WS-1290   16 20 19.2 34.5 22 90 120
  WS-12 16 24 19.2 34.5 22 85 120
WS-1695 WS-16 20 22 23 42.5 24 95 160
  WS-20 24 30 27.5 51 27 100 200
WS-21100   20 24 23 42.5 24 100 210
WS-25100   24 28 27.5 51 27 100 250
  WS-30 24 36 27.5 51 36 110 300
WS-32110   24 32 27.5 51 30 110 320
WS-42120   28 36 32 59 36 120 420
