FLD-1 Type Aluminum Tape Aluminum Armor Type Ploe accessories transmission line

Name: FLD-1 Type Aluminum Tape Aluminum Armor Type Ploe accessories transmission line
Brand: Yixing Futao Metal Structural Unit Co. Ltd
SKU: FLD-1
Price: 3.00 USD
Availability: InStock

Brand Name:	FUTAO
Model Number:	FLD-1
MOQ:	1 pieces
Price:	$1 - $5
Delivery Time:	10 workdays
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu China

Certification:

ISO 9001

Type:

FLD-1

Material:

Aluminum

Operation:

Convenient

Color:

Silver

Usage:

Transmission Line

Size:

From ZBS-07/10-80 To ZBS-32/42-100

Packaging Details:

Package by the box

Supply Ability:

3000pcs one month

Highlight:

power pole hardware

transmission line hardware

Product Description

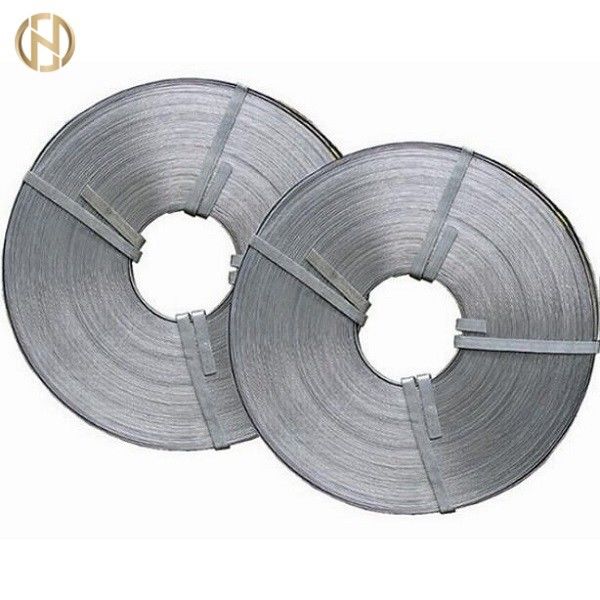

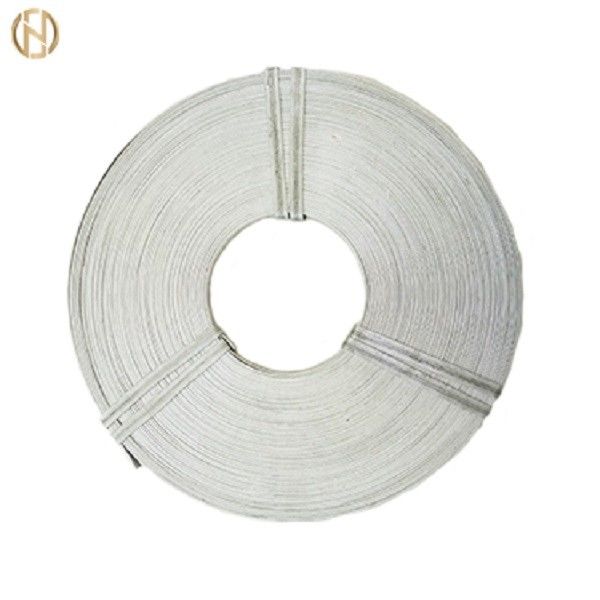

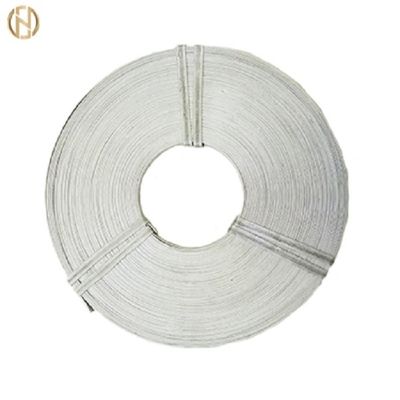

FLD-1 Type Aluminum Tape Aluminum Armor Type Ploe accessories

FLD-1 Type aluminum armor rod is mainly used in overhead transmission and distribution line construction for purposes such as binding conductors to insulators, field assembly of aerial cable, and for armoring conductors subject to excessive wear.

When busbar is connected with different type bolt strain or suspension clamps, it must wrap aluminum armor tape, direction of winding spreading towards the outer aluminum strands. The exposed outlets of the two ends should be less than 10mm while the outlets must be gripped into the clamp; aluminum armor tape needs to be wound evenly on the over 3cm position between the bound ceramic insulator parts. The binder deserves to be selected as equivalent model conductor on which the middle part of binder is used for wrapping the conductor along the two sides of ceramic insulator in the bottom-up processing, respectively; until the two ends of binder returns to the opposite positions of ceramic insulator as crossover, then up to the opposite once again through bottom to up winding.

Type	Specification	Weight
		KG/M	M/KG
FLD-1	1×10	0.027	37
