ZBS Type Clevis Used for Electric Equipment Ploe accessories  transmission line

ZBS Type Clevis Used for Electric Equipment Ploe accessories transmission line

  • High Light

    power pole hardware

    ,

    electric power fittings

  • Type
    ZBS
  • Material
    Hot Dip Galvanized Steel
  • Operation
    Convenient
  • Color
    Silver
  • Usage
    Overhead Transmission Line
  • Size
    From ZBS-07/10-80 To ZBS-32/42-100
  • Place of Origin
    Jiangsu China
  • Brand Name
    FUTAO
  • Certification
    ISO 9001
  • Model Number
    ZBS
  • Minimum Order Quantity
    10 pieces
  • Price
    $1 - $8
  • Packaging Details
    Package by the box
  • Delivery Time
    10 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000pcs one month

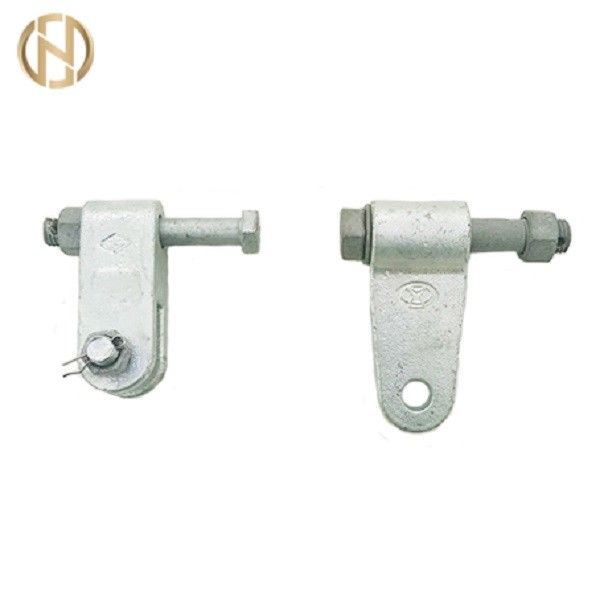

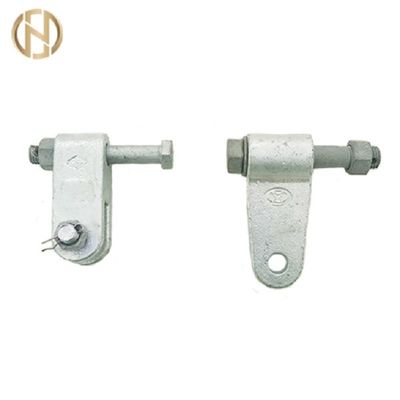

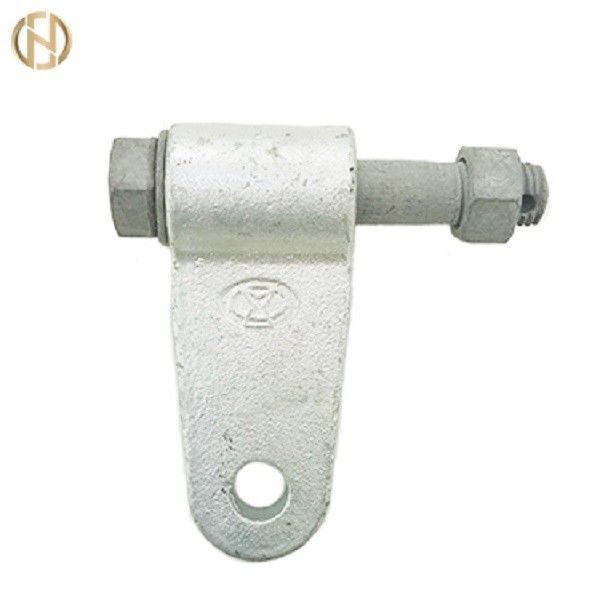

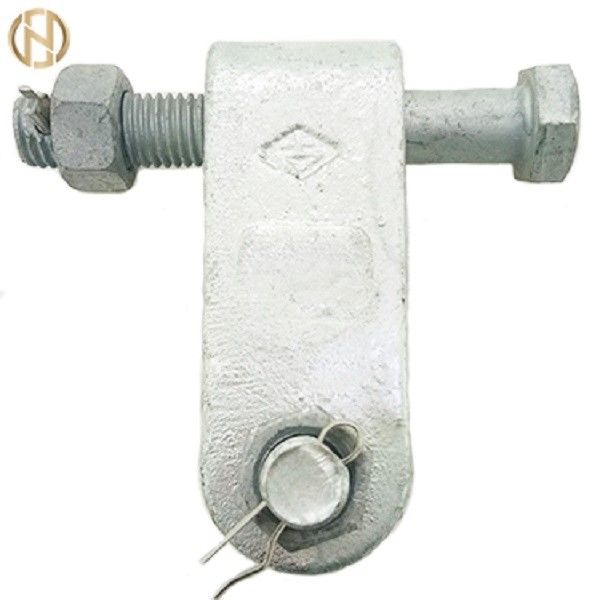

ZBS Type Clevis Used for Electric Equipment Ploe accessories transmission line

ZBS Type Clevis Used for Electric Equipment Ploe accessories

ZBS type clevis is mainly suitable for hanging suspension insulator string (composed of suspension insulator & suspension clamp) on the conductor subjected to the pole or tower; on the other hand, they are also used for hanging tension insulator string (composed of suspension insulator & tension clamp) on the tension conductor subjected to the pole or tower.


ZBS Type Clevis used for Electric Equipment



Type Dimension (mm) Nominal Failure Load (kn)
L H C M1 M2
ZBS-07/10-80 45 80 20 18 16 70
ZBS-10/12-100 60 100 20 22 18 100
ZBS-10/21-100 60 100 20 24 18 100
ZBS-12/16-100 60 100 20 24 22 120
ZBS-16/21-100 80 100 22 24 24 160
ZBS-21/42-100 100 100 24 36 24 210
ZBS-25/42-100 100 100 28 36 27 250
ZBS-32/42-100 100 100 32 36 30 320
