Power Fitting LV Type hot dip galvanized steel Plate Ploe accessories
| Type no |
Figure no |
Dimension(mm) |
Nominal failure load(kN) |
Weight(kg) | ||||
| B | Φ1 | Φ2 | H | L | ||||
| LV-1240 | pic1 | 16 | 18 | 14 | 70 | 400 | 120 | 4.4 |
| LV-1612 | pic2 | 18 | 26 | / | 60 | 120 | 160 | 2.65 |
| LV-1620 | pic2 | 18 | 26 | / | 60 | 200 | 160 | 3 |
| LV-1640 | pic3 | 18 | 26 | / | 100 | 400 | 160 | 8.5 |
| LV-2040 | pic4 | 16 | 30 | 20 | 110 | 400 | 200 | 6 |

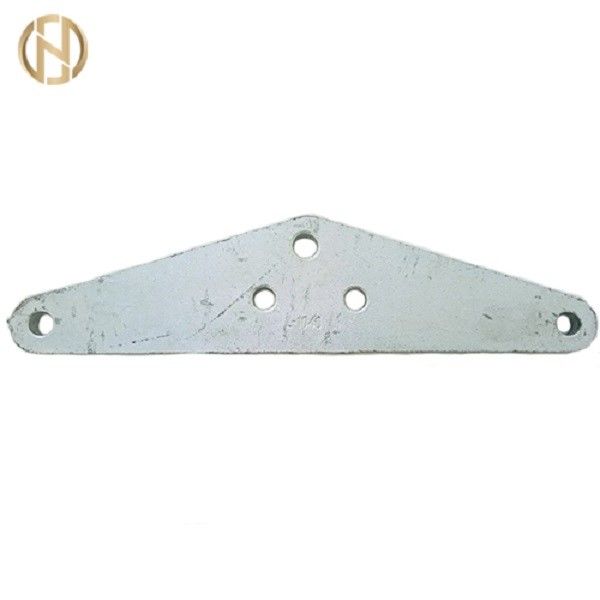

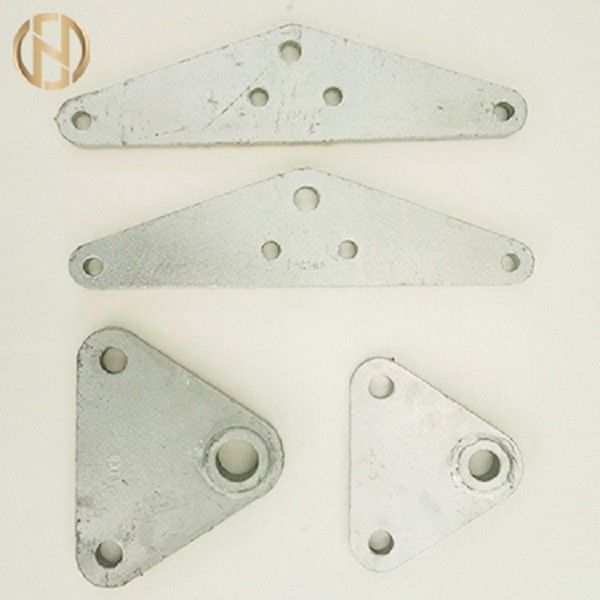

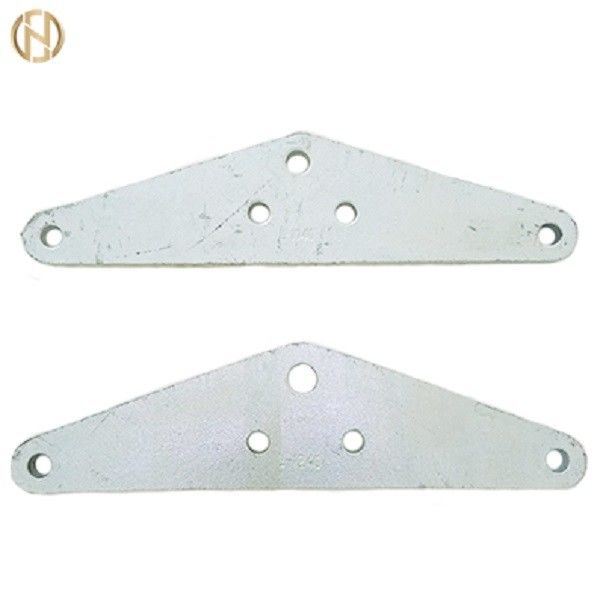

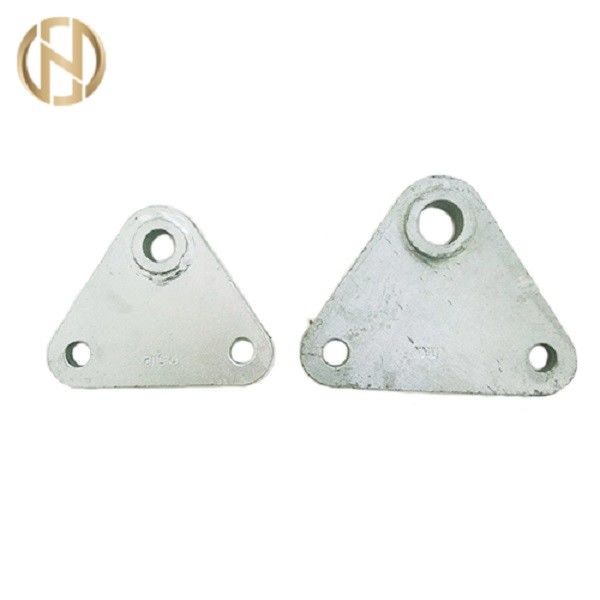

LV Type Yoke Plate is used for connecting conductors, ground wire to insulator strings or hanging to the tower.
| Type no | Dimension(mm) |
Nominal Failure load(kN) |
Weight(kg) | |||||
| B | B1 | Φ1 | Φ2 | H | L | |||
| LV-0712 | 16 | - | 20 | 18 | 60 | 120 | 70 | 1.34 |
| LV-1020 | 16 | - | 20 | 20 | 60 | 200 | 100 | 2.30 |
| LV-1614 | 16 | - | 20 | 24 | 90 | 140 | 120 | 2.40 |
| LV-1612 | 18 | - | 26 | 26 | 100 | 120 | 160 | 3.11 |

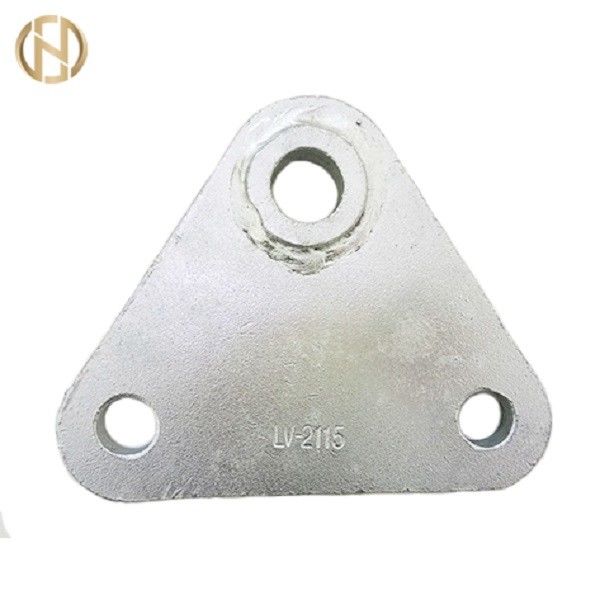

| LV-2115 | 16 | 26 | 24 | 30 | 100 | 150 | 210 | 2.94 |

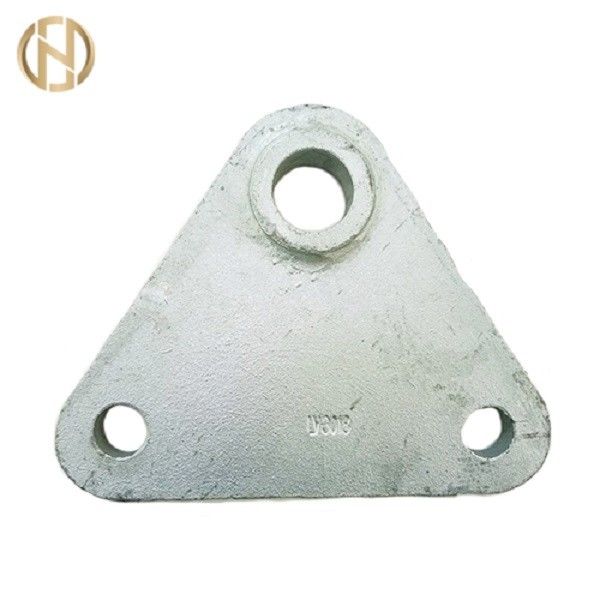

| LV-3018 | 18 | 32 | 26 | 39 | 120 | 180 | 300 | 4.50 |
| LV-5012 | 20 | 40 | 30 | 44 | 120 | 120 | 500 | 5.80 |
| LV-5020 | 30 | 40 | 33 | 45 | 150 | 200 | 500 | 7.70 |
