Power Fitting DB Type Adjusting Plate Ploe accessories
Power fitting DB type adjusting plate is one steel plate with many holes but different hole distance; it is applicable to insulation fitting for adjusting the length of twin-connecting or parallel-connecting insulator string through series connection with insulator string. It is also serially connected with the section of bundled conductor between connecting fitting & tension clamp subjected to tension insulator string as the looseness adjustment of two pieces of bundled conductor.

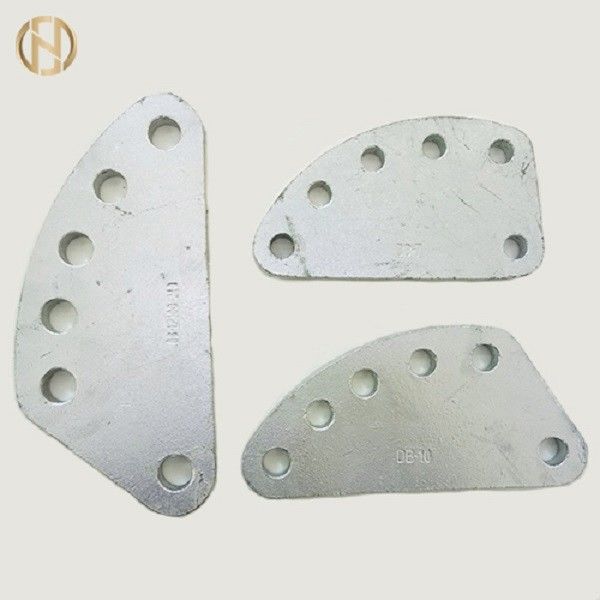

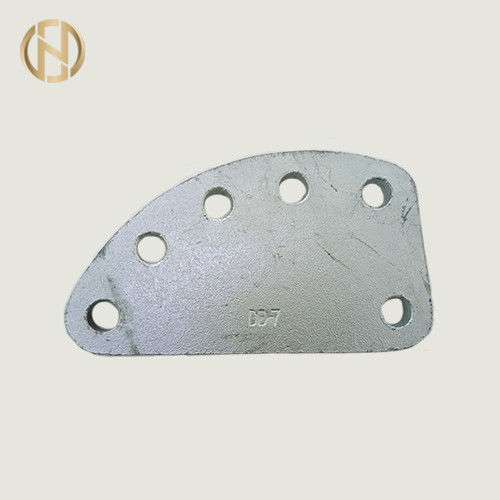

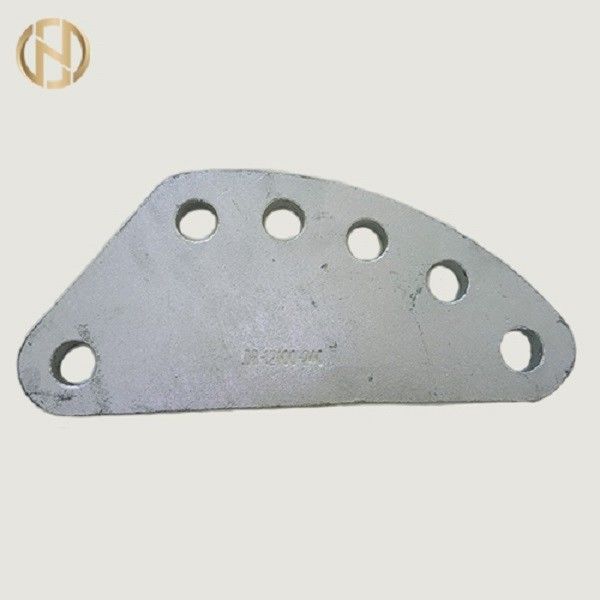

Power Fitting DB Type Adjusting Plate
| National Grid Type | No. 85 Standard Type | Dimension (mm) | Nominal Failure Load (kn) | Weight (kg) | ||||||
| B | Φ | L1 | L2 | L3 | L4 | L5 | ||||
| DB-0770-170 | DB-7 | 16 | 18 | 70 | 95 | 120 | 145 | 170 | 70 | 2.05 |
| DB-1080-200 | DB-10 | 16 | 20 | 80 | 110 | 140 | 170 | 200 | 100 | 2.25 |
| DB-12100-240 | DB-12 | 16 | 24 | 100 | 135 | 170 | 205 | 240 | 120 | 3.42 |
| DB-16110-170 | DB-16 | 18 | 26 | 110 | 125 | 140 | 155 | 170 | 160 | 4.19 |
| DB-21 | 26 | 30 | 120 | 135 | 150 | 165 | 180 | 200 | 7.4 | |
| DB-21120-180 | 20 | 26 | 120 | 135 | 150 | 165 | 180 | 210 | 4.91 | |
| DB-25120-180 | 24 | 30 | 120 | 135 | 150 | 165 | 180 | 250 | 6.93 | |
| DB-30 | 32 | 39 | 120 | 140 | 160 | 180 | 200 | 300 | 12.5 | |
| DB-32120-200 | 28 | 33 | 120 | 140 | 160 | 180 | 200 | 320 | 10.55 | |
| DB-42140-320 | 32 | 39 | 140 | 185 | 230 | 275 | 320 | 420 | 16.26 |
|
DB Type Adjusting Plate is suitable for adjusting length of insulator string & conductor of transmission line & electric power substation.
Technical Parameters
| Type no | Dimension(mm) |
Nominal failure Load(kN) |
Weight(kg) | ||||||
| B | Φ | L1 | L2 | L3 | L4 | L5 | |||
| DB-7 | 16 | 18 | 70 | 95 | 120 | 145 | 170 | 70 | 1.7 |
| DB-10 | 16 | 20 | 80 | 110 | 140 | 170 | 200 | 100 | 2.7 |
| DB-12 | 16 | 24 | 100 | 135 | 170 | 205 | 240 | 120 | 4.0 |
| DB-16 | 18 | 26 | 110 | 125 | 140 | 155 | 170 | 160 | 4.1 |
| DB-21 | 26 | 30 | 120 | 135 | 150 | 165 | 180 | 210 | 7.4 |
| DB-30 | 32 | 39 | 120 | 140 | 160 | 180 | 200 | 300 | 12.5 |
| DB-50 | 38 | 45 | 140 | 185 | 230 | 275 | 320 | 500 | 28.6 |
| DB-60 | 42 | 51 | 135 | 160 | 185 | 210 | 235 | 600 | 31.6 |
| DB-16S | 18 | 26 | 110 | 125 | 140 | 155 | 170 | 160 | 4.1 |
| DB-21S | 20 | 26 | 120 | 150 | 165 | 195 | 210 | 210 | 6.8 |
| DB-25S | 24 | 30 | 120 | 135 | 150 | 165 | 180 | 250 | 7.0 |
| DB-32S | 28 | 33 | 120 | 140 | 160 | 180 | 200 | 320 | 11.9 |
| DB-42S | 32 | 39 | 140 | 185 | 230 | 275 | 320 | 420 | 16.5 |
| DB-50S | 32 | 39 | 140 | 185 | 230 | 275 | 320 | 500 | 17.0 |
| DB-64185S | 36 | 45 | 135 | 160 | 185 | 210 | 235 | 640 | 19.4 |
| DB-64230S | 36 | 45 | 140 | 185 | 230 | 275 | 320 | 640 | 21.0 |
| DB-84S | 36 | 51 | 140 | 170 | 200 | 230 | 260 | 840 |
24.8 |
