P-20 P-20-Y 11kv 11kn pin insulator pole accessories

P-20 P-20-Y 11kv 11kn pin insulator pole accessories

Products - Pole Accessories
  • Highlight

    electric power fittings

    ,

    transmission line hardware

  • Model
    P-20 ，P-20-Y
  • Certificate
    ISO9001 & SGS Factory Audit Report
  • Material
    Malleable Iron ,ceramics
  • Usage
    Transmission Line
  • Install
    Easy
  • Rated Voltage
    11kv
  • Tensile Strength
    11KN
  • Place of Origin
    Jiangsu China
  • Brand Name
    FUTAO
  • Certification
    ISO 9001
  • Model Number
    FPQ
  • Minimum Order Quantity
    10 pieces
  • Price
    $2 - $6
  • Packaging Details
    Package by the box
  • Delivery Time
    30 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000 pieces every month

P-20 P-20-Y 11kv 11kn pin insulator pole accessories

  • P-20 P-20-Y 11kv 11kn pin insulator pole accessories
  • P-20 P-20-Y 11kv 11kn pin insulator pole accessories
  • P-20 P-20-Y 11kv 11kn pin insulator pole accessories
  • P-20 P-20-Y 11kv 11kn pin insulator pole accessories
Get Price Contact Now

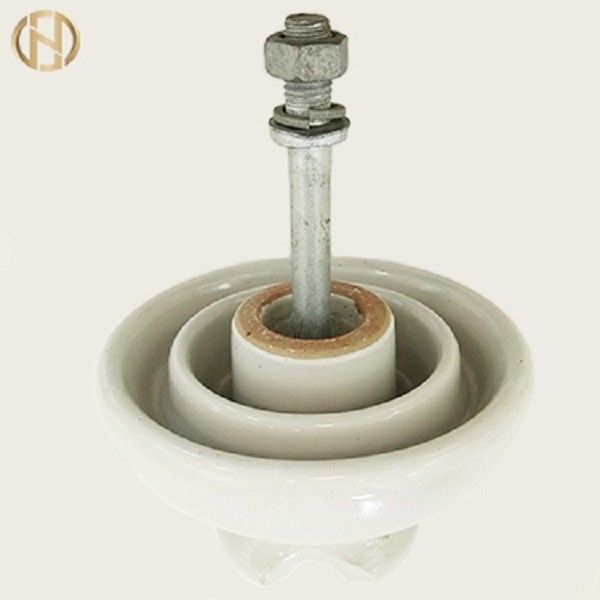

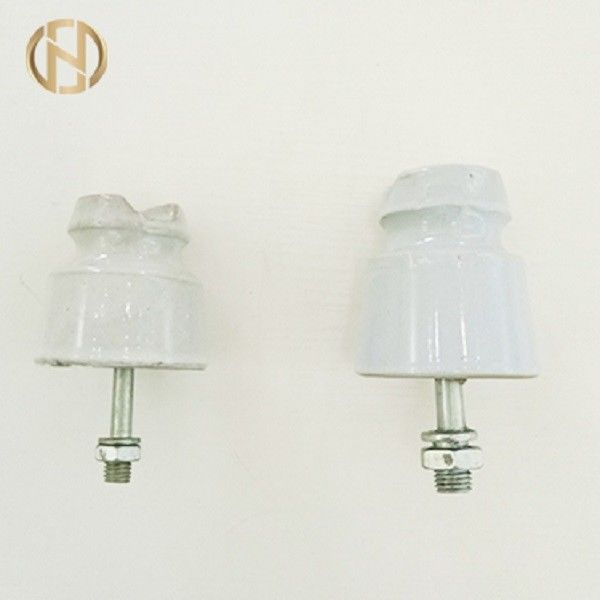

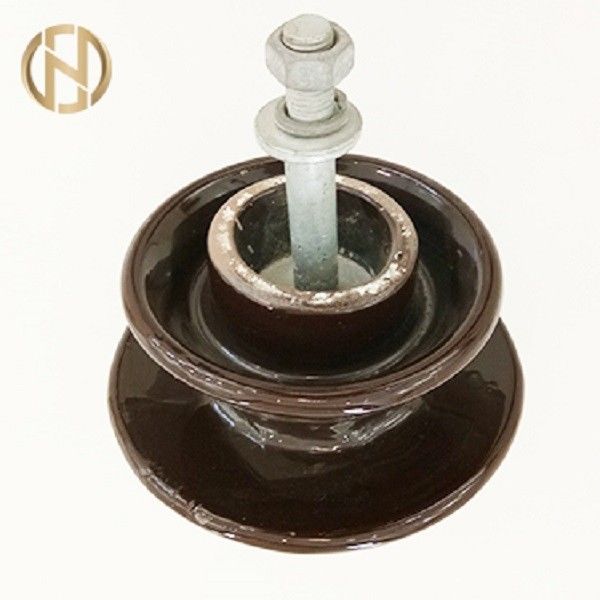

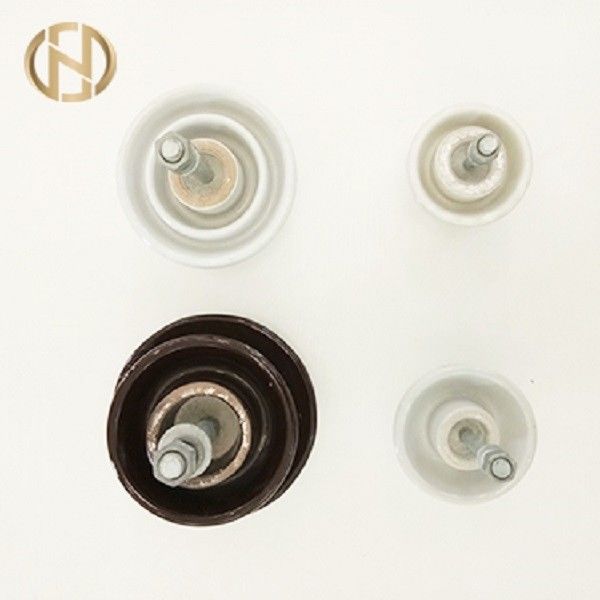

P-20 P-20-Y 11kv 11kn pin insulator pole accessories

Product Description
Brief introduction:
Producing many kinds of Line Insulators(PIN TYPE INSULATOR), Substation & Power System Insulators. With features of good insulation performance, excellent weatherability, high heat resistance, easy to be installed and etc. PIN TYPE INSULATOR included P-11-Y,P-20-Y,P-33-Y etc.

MAIN DIMENSIONS AND STANDARD PARTICULARS

fig 1 2 3 4 5 6 7
Class BS P-11-Y P-20-Y P-33-Y PW-11-Y PW-22-Y PW-33-Y PQ-36-Y
Main Dimensions(mm) H 137 165 244 185 255 320 -
h 48 52.63 52.63 52.63 52.63 52.63 52.63
D 152 230 279 170 205 240 -
d 18.29 27.78 27.78 76 76 76 -
d1 13 19 19 27.78 27.78 27.78 -
R1 12.7 14.3 13 16 16 16 -
R2 - - - 16 16 16 -
Rated Voltage(kv) 15 22 33 15 22 33 33
Creepage distance(mm) 298 432 630 432 673 851 900
Low-Frequency Punctur Voltage Average(kv) 135 145 185 150 200 210 170
Minimum Flashover Voltage Power-Frequency(kv) Dry Withstand 80 100 135 100 125 140 130
Wet Withstand 55 60 85 65 95 110 95
50% Positive Impulse(kv) 130 160 185 150 190 210 190
Withstand Voltage One minute power-frequency(kv) Dry 70 90 110 90 110 125 115
Wet 50 55 75 60 90 100 85
Impulse(kv) 110 150 - 140 180 200 190
Radio-Influence Voltage Data Test Voltage to Ground(KV) 15 22 30 22 30 44 44
Maximun RIV at 1000KHZ(kv) 8000 12000 16000 12000 16000 25000 25000
Bending Failing Load(kn) 11 11 13 11 11 11 11
Weight(kg) 2 4.5 11.5 5 10 13 8.4
