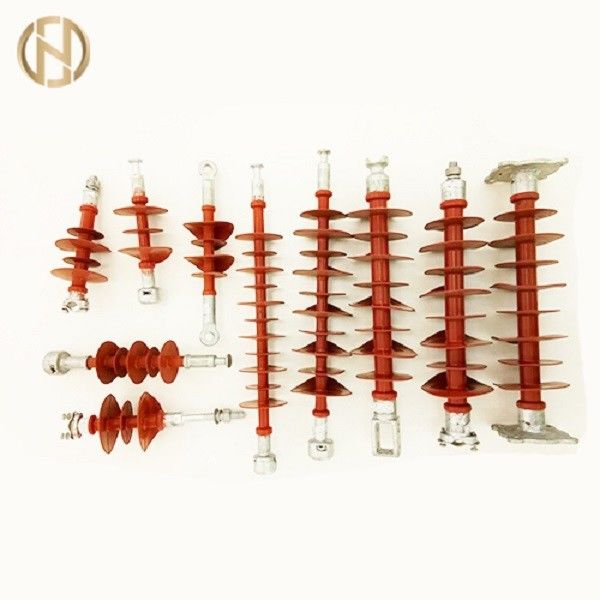

Long Rod Suspension Silicone Rubber Insulator 120KN 24KV Superior Tensile Strength

Long Rod Suspension Silicone Rubber Insulator 120KN 24KV Superior Tensile Strength

  • High Light

    electric power fittings

    ,

    transmission line hardware

  • Model
    SJI11-24KV
  • Certificate
    ISO9001 & SGS Factory Audit Report
  • Material
    Malleable Iron , Aluminum,Composite Resin
  • Color
    Red
  • Usage
    Transmission Line
  • Install
    Easy
  • Rated Voltage
    24kv
  • Tensile Strength
    70KN
  • Place of Origin
    Jiangsu China
  • Brand Name
    FUTAO
  • Certification
    ISO 9001
  • Model Number
    FPQ
  • Minimum Order Quantity
    10 pieces
  • Price
    $5 - $100
  • Packaging Details
    Package by the box
  • Delivery Time
    30 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000 pieces every month

Long Rod Suspension Silicone Rubber Insulator 120KN 24KV Superior Tensile Strength

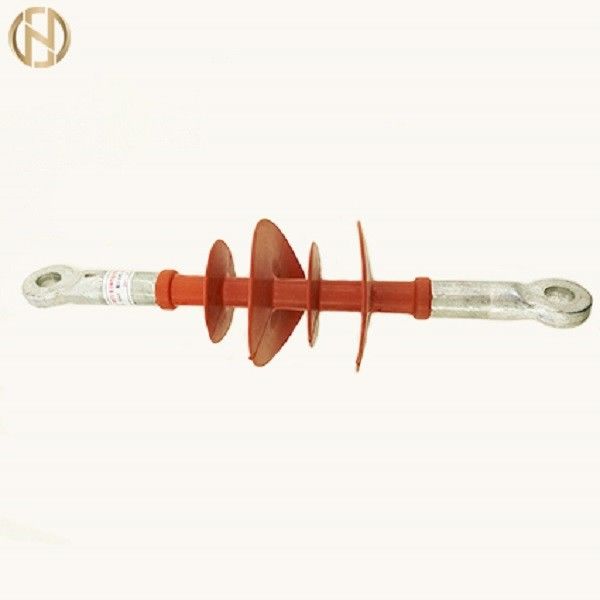

Long Rod Suspension Silicon Rubber 120KN 24KV FXBW Insulator





Product Description



Pin Insulator is special for badly polluted areas, high mechanical tension load, long span and compact power line.They have feature of light weight, small volume, unbreakable, anti-bend, high strength for anti-twist and strong explosion protection.

Components:

Core rod: made of FRP rod or ECR rod

Sheds: made from high quality HTV silicone rubber, through high pressure injection moulding techniques to create a smooth surface

End fittings: various pin end fittings made of hot dip galvanized cast steel



Properties & Advantages(the reason to buy!):

1. superior bending and tensile strength

2. electric corrosion resistance

3. excellent corona resistance

4. high pollution resistance

5. superior hydrophobicity/anti-water performance

6. aging resistance

7. anti-leakage trace

8. anti-ipulse property

9. shaking-proof

10. Good brittleness-proof property

11. light weight, convenient installation.



Technical parameter:

FXBW-36/70 Numerical value Unit
Rated voltage 24 KV
Rated mechanical bending load(KN) 70 KN
Structure Height H 425 mm
Minimum creepage distance Power 575 mm
insulating distance Li. 230 mm
Diameter of shed D 88 mm
Lightning impulse withstand voltage(peak) 125 KV
P.F frequency Wet withstand voltage(virtual value) 65 KV
