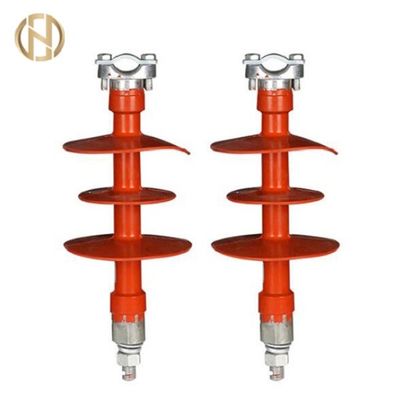

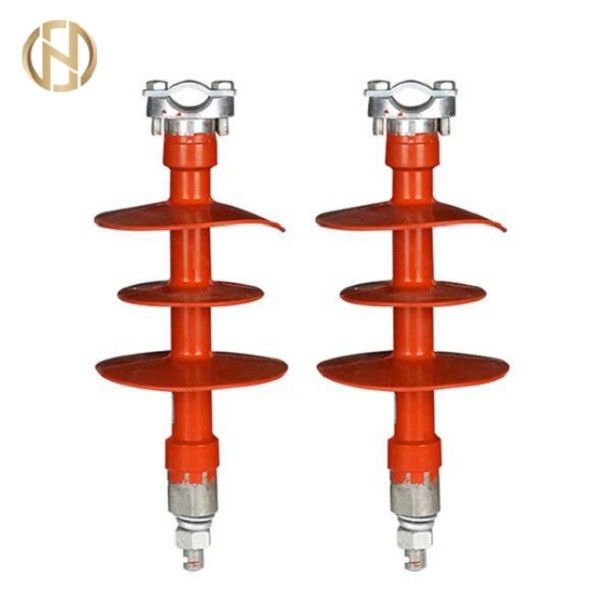

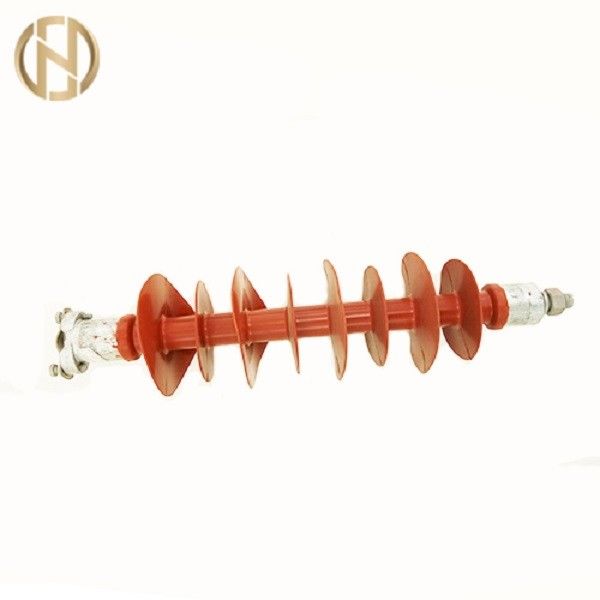

Easy Installation Pole Accessories 1-35kV Composite Pin Insulator
Product Description:
Composite pin insulators have high resistance to bending, torsional strength, impact resistance, shock resistance and explosion-proof performance. The internal insulation is reliable, light weight and easy to install. It is an ideal replacement for traditional porcelain insulators.
| Type | Rated voltage (KV) |
Rated bending load (KN) |
Steel foot thread diameter X length (mm) |
Clamp Range (mm) |
Structure height (mm) |
Min arc distance (mm) |
Mini nominal creepage distance (mm) |
Lightning full wave impulse withstand voltage ≥ (kV) |
Frequency withstand voltage (kV) |
Other different models |
| FPQ4-1/3T16 | 1~3 | 3 | 16×40 | φ10~φ24 | 155 | 85 | 180 | 45 | 18 | |
| FPQ3-10/4T16 | 6~10 | 4 | 16×40 | φ16~φ30 | 210 | 130 | 320 | 95 | 42 | |
| FPQ3-10/5T18 | 6~10 | 5 | 18×40 | φ16~φ30 | 210 | 130 | 320 | 95 | 42 | |
| FPQ3-10/6T20 | 6~10 | 6 | 20×40 | φ16~φ30 | 210 | 130 | 320 | 95 | 42 | |
| FPQ4-10/3T16 | 10~15 | 3 | 16×40 | φ16~φ30 | 245 | 170 | 460 | 105 | 50 | FPW-10/3 |
| FPQ4-10/4T18 | 10~15 | 4 | 18×40 | φ16~φ30 | 245 | 170 | 460 | 105 | 50 | FPW-10/3 |
| FPQ4-10/5T20 | 10~15 | 5 | 20×40 | φ16~φ30 | 245 | 170 | 460 | 105 | 50 | FPW-10/3 |
| FPQG4-10/3T20 | 10~15 | 3 | 20×40 | φ16~φ30 | 330 | 260 | 700 | 105 | 50 | |
| FPQ4-20/5T20 | 20 | 5 | 20×40 | < φ36 conductor | 300 | 215 | 600 | 150 | 62 | |
| FPQ3-20/12.5T22 | 20 | 12.5 | 22×45 | < φ36 conductor | 325 | 230 | 650 | 150 | 60 | |
| FPQ4-20/12.5T22 | 20 | 12.5 | 20×45 | < φ36 conductor | 370 | 275 | 775 | 170 | 70 | |
| FPQ3-35/3T20 | 35 | 3 | 22×45 | φ16~φ30 | 400 | 320 | 835 | 210 | 90 | |
| FPQ3-35/6T22 | 35 | 6 | 22×45 | < φ36 conductor | 450 | 370 | 1015 | 230 | 95 | |
| FPQ4-35/6T22 | 35 | 6 | 22×45 | < φ36 conductor | 480 | 370 | 1260 | 230 | 95 |
