HPRWG Series 12kV 35kV Drop-Out Fuse for Transmission Line
Product Description:

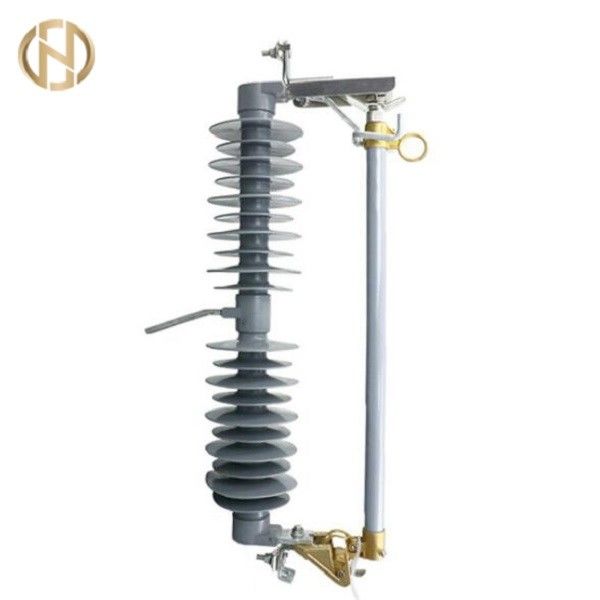

The composite pillar drop fuse uses a silicone rubber epoxy fiberglass rod instead of a porcelain pillar, which has better mechanical strength and stain resistance, is free of cleaning and maintenance, and can reduce the occurrence of pollution flash. Light weight, not easy to break, easy to transport and install, in recent years in the promotion and use of the majority of users.
Conditions of Use :
1. Applicable to the ambient temperature upper limit of 40 ° C, the lower limit of -30 ° C.
2. The altitude does not exceed 1000m, and the wind speed is not more than 35m/s
3. The fuse is not suitable for the following places
a. Locations with fuel or explosion hazards
b. Locations with severe vibration or impact
c.There are different electrochemical gases and severe air pollution, smoke areas
| Type | Rated voltage (kV) |
Rated current (A) |
Breaking current (A) |
impulse voltage (BIL) |
Power frequency withstand voltage (kV) |
Creepage distance (mm) |
Weight (kg) |
Outline size (cm) |
| HPRWG1 | 12 | 100 | 6300 | 110 | 42 | 380 | 6.8 | 61 x 42 x 13 |
| 200 | 8000 | |||||||
| HPRWG2 | 35 | 100 | 6300 | 170 | 105 | 1440 | 9 | 87 x 39 x 18 |
| 200 | 8000 | |||||||
| PRWG2 | 35 | 100 | 6300 | 170 | 105 | 1440 | 20 | 87 x 39 x 18 |
| 200 | 8000 | 260 |
