Hot Dip Galvanized Outdoor Street Lamp Post 6M-10M Long Service Life

Hot Dip Galvanized Outdoor Street Lamp Post 6M-10M Long Service Life

  • High Light

    galvanized light pole

    ,

    octagonal light pole

  • Material
    Steel
  • Height
    9M
  • Thickness
    3-10mm
  • Shape
    Octagonal
  • Welding
    AWS D 1.1
  • Surface Treatment
    Hot Dip Galvanized Or Power Coating
  • Painting Color
    According To The RAL Color Number From Clients
  • Package
    Blanket Or Plastic Woven Bag
  • Certificate
    SGS And ISO
  • Origin
    Jiangsu China
  • OEM
    Yes
  • Small Orders
    Accepted
  • Place of Origin
    CHINA
  • Brand Name
    FUTAO
  • Certification
    FUTAO
  • Model Number
    LP-017
  • Minimum Order Quantity
    2 sets
  • Price
    USD100-USD600
  • Packaging Details
    old blanket or plastic woven bag
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    6000 pcs every month

Hot Dip Galvanized Outdoor Street Lamp Post 6M-10M Long Service Life

Product Description

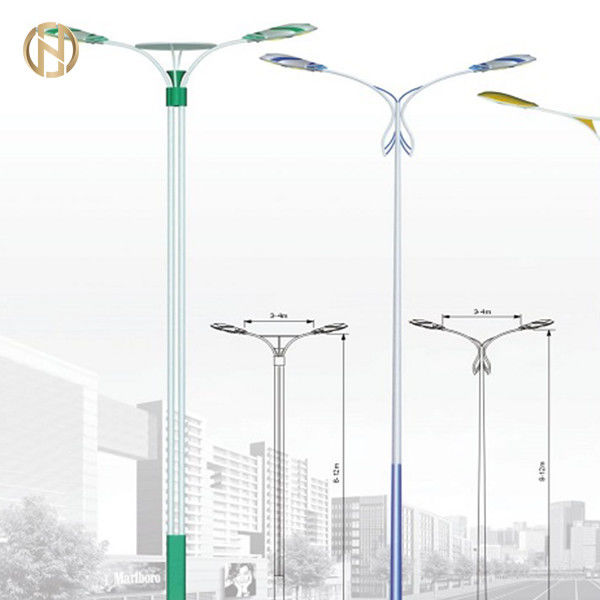

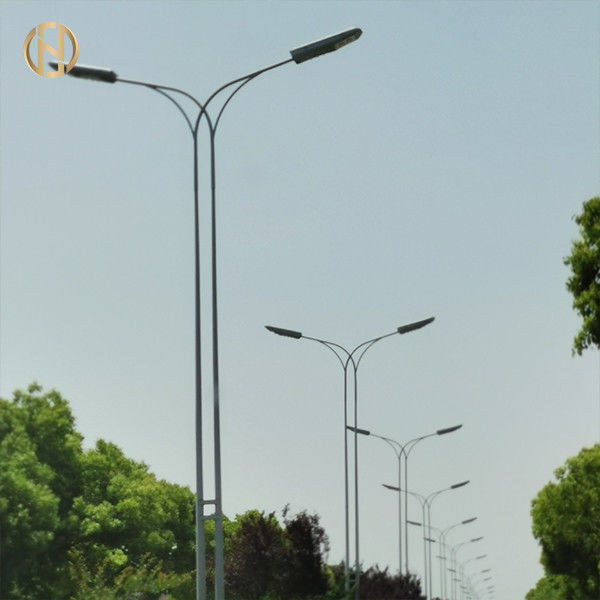

Hot Dip Galvanized Outdoor 6M-10M Street Light Pole Steel Pole Lamp Post



Our street lighting poles can be customized in various ways according to our clients’ requests. This includes pole length, spray painted colour, shape of the pole shaft, number and style of cross arms.The arm could be 48mm or 60mm to suit your lights. Please refer to the table below for further details.



Product Specifications




Height 9M or custom
Application Airport, Seaport, Plaza, Stadiums, Highway Street Lighting, etc.
Shape Octagonal or conical or others
Material Q235B or Q345B
Lighting Wattage 20 W- 400 W (HPS/MH) OR LED, 220V (+-10%)/50Hz
Dimension Tolerances +- 2%
IP Rating IP 65
Protection Grading Grade One
Anti-Corrosion Grade Class Two
Working Conditions for Lighting Fixture -35 °C~+45 °C
Surface treatment Hot Dip Galvanized according to ASTM A123 standards or any other standards as per clients’ request
Earthquake Resiliency Against Earthquakes of Magnitude 8 or more
Maximum Wind Resistance Against Wind Velocity of 160 Km/Hour
Standard ISO 9001
Length per section <14M per section
Welding Process Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 2 - 30 mm
Packaging Poles are covered by a mat or straw bale at the top and bottom portions. Other methods of packaging can also be used as per clients’ request



Hot Dip Galvanized Outdoor Street Lamp Post 6M-10M Long Service Life 0

Hot Dip Galvanized Outdoor Street Lamp Post 6M-10M Long Service Life 1





Price Quotation & Packaging & Shipping


As street lamps are non-standard products, there is no uniform price. Prices will be adjusted accordingly based on the height, pole shaft thickness



and material type, type of light source used. We are also able to manufacture all kinds of street lighting according to different specifications



provided by our clients. Please contact us for further enquiries.





Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Hot Dip Galvanized Outdoor Street Lamp Post 6M-10M Long Service Life 2



FAQ




Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.

2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.



Our Service


1. Reply your inquiry in 12 working hours.

2. Experienced staffs answer all your questions in fluent English quickly.

3. We have professional engineers to design the poles for clients.UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory: We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.

7. Sample time: about 10 workdays after receiving the sample fees.



8. We can ship the poles by sea,air,express or train.
