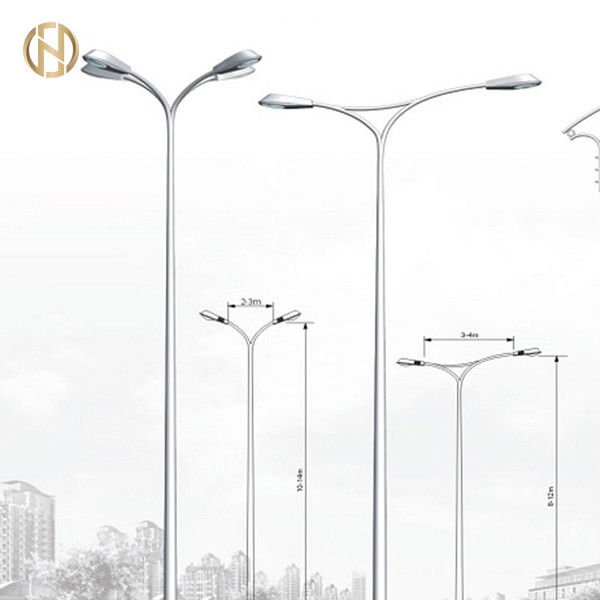

3M,6M,9M,12M Galvanized Street Light Pole Octagonal Shape Steel Lamp Post
Product Description
Product Specifications
Height | Custom |
Application | Airport, Seaport, Plaza, Stadiums, Highway Street Lighting, etc. |
Shape | Octagonal or conical or others |
Material | Q345B/A572, Q235B/A36, Q460 ,ASTM573, GR65, GR50 ,SS400,SS490, ST52- |
Lighting Wattage | 20 W- 400 W (HPS/MH) OR LED, 220V (+-10%)/50Hz |
Dimension Tolerances | +- 2% |
IP Rating | IP 65 |
Protection Grading | Grade One |
Anti-Corrosion Grade | Class Two |
Working Conditions for Lighting Fixture | -35 °C~+45 °C |
Surface treatment | Hot Dip Galvanized according to ASTM A123 standards or any other standards as per clients’ request |
Earthquake Resiliency | Against Earthquakes of Magnitude 8 or more |
Maximum Wind Resistance | Against Wind Velocity of 160 Km/Hour |
Minimum Yield Strength | 355 mpa |
Minimum Tensile Strength | 490 mpa |
Maximum Tensile Strength | 620 mpa |
Standard | ISO 9001 |
Length per section | <14M per section |
Welding Process | Welding Standard :AWS ( American Welding Society ) D 1.1 |
Thickness | 2 - 30 mm |
Packaging | Poles are covered by a mat or straw bale at the top and bottom portions. Other methods of packaging can also be used as per clients’ request |
Price Quotation & Packaging & Shipping
As street lamps are non-standard products, there is no uniform price. Prices will be adjusted accordingly based on the height, pole shaft thickness
and material type, type of light source used. We are also able to manufacture all kinds of street lighting according to different specifications
provided by our clients. Please contact us for further enquiries.
We pack the top and bottom parts of the pole with an old blanket in order to protect it from damage to the galvanized surface that may occur
during transportation.
Packaging can also be done according to clients’ requirements,such as plastic bubbles or with wooden stick between each layer.
We have our regular shipping agent and respect the clients to choose their own agent.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
FAQ
Trade terms:
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
2. MOQ: 2 sets.
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic woven bag or old blanket or according to clients requirement.
5. Delivery time: within 30-60 workdays after receiving deposit.
Our Service
1. Reply your inquiry in 12 working hours.
2. Experienced staffs answer all your questions in fluent English quickly.
3. We have professional engineers to design the poles for clients.UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.
Welcome to our factory!
