Galvanized Power Pole Accessories  33KV 6300S Power Pole Cross Arm

Galvanized Power Pole Accessories 33KV 6300S Power Pole Cross Arm

  • High Light

    power pole hardware


    electric power fittings

  • Surface Treatment
    Hot Dip Galvanized
  • Material
    Steel (Q235, Q345, A36, GR50), Stainless Steel
  • Design Wind
    160KM/H Or Depending On Clients Request
  • Thinkness
    2.5mm - 20mm
  • Galvanization
  • Package
    Blanket Or Plastic Woven Bag
  • Origin
    Jiangsu China
  • Certificate
    ISO 9001
  • Place of Origin
    Jiangsu China
  • Brand Name
  • Certification
    ISO 9001
  • Model Number
  • Minimum Order Quantity
    1 Pieces
  • Price
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000 pieces every month

Galvanized Power Pole Accessories 33KV 6300S Power Pole Cross Arm

33kv Galvanized Steel Power Pole Accessories 6300S Cross Arm

Product Description

l Product Name:33kv galvanized steel power pole accessories 6300S cross arm

l Model Number: FT-CA010

l Design Standard: AASHTO (American Association of State Highway Transportation Officials) Standard

l Pole Height:8-16M

l Surface Treatment: Hot Dip Galvanization

l Material: Q235, 355, A36, GR50,GR65

l Dimension Tolerances: +/-1%

l Pole Shape: Conical, Polygonal (Hexagonal, Octagonal, Dodecagonal)

l Certification: ISO9001:2000

l Design Wind Resistance: 160 km/h or depending on clients request.

l Payment Terms: TT/LC
Specifical Details

Product name 33kv galvanized steel power pole accessories 6300S cross arm
Material ASTM GR65,GR50,Q460 A572,S355,Q345/Q235
Design Wind 30M/S or depending on clients’ request
Surface treatment Hot Dip Galvanization
Galvanization Thickness 80-100 microns on average according to BS EN ISO1461 standards
How long Dipped into Zinc pool for the poles The time Dipped into Zinc pool depending on the poles Wall Thickness and the Galvanized thickness Execution Standard
Minimum yield strength 355 Mpa
Minimum ultimate tensile strength 490 Mpa
Max ultimate tensile strength 620 Mpa


Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

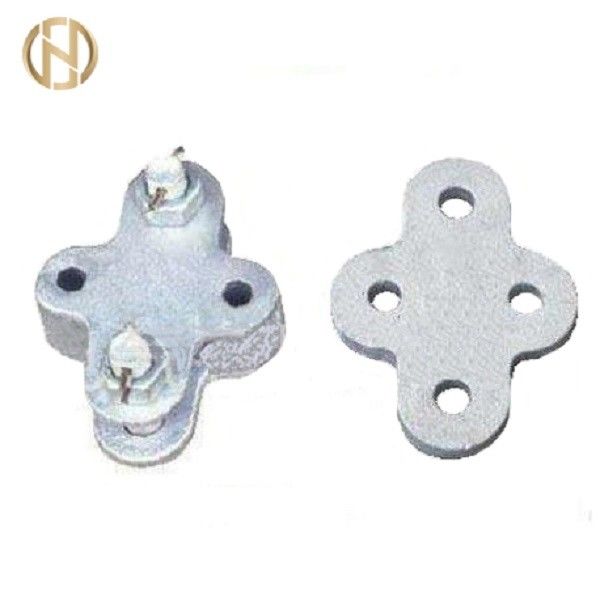

Galvanized Power Pole Accessories  33KV 6300S Power Pole Cross Arm 0
Product Details

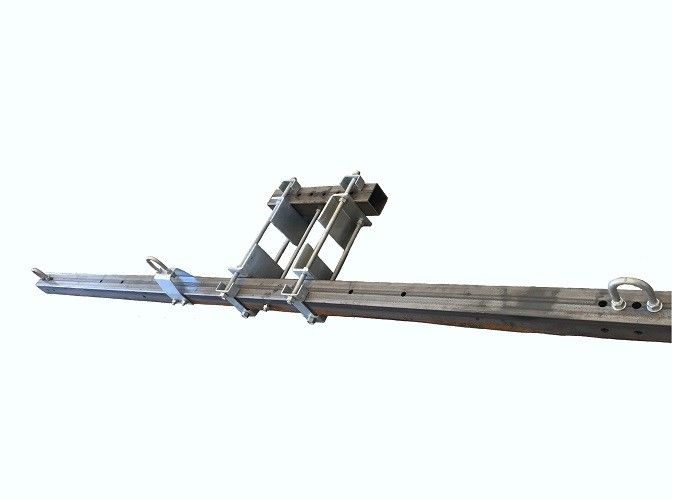

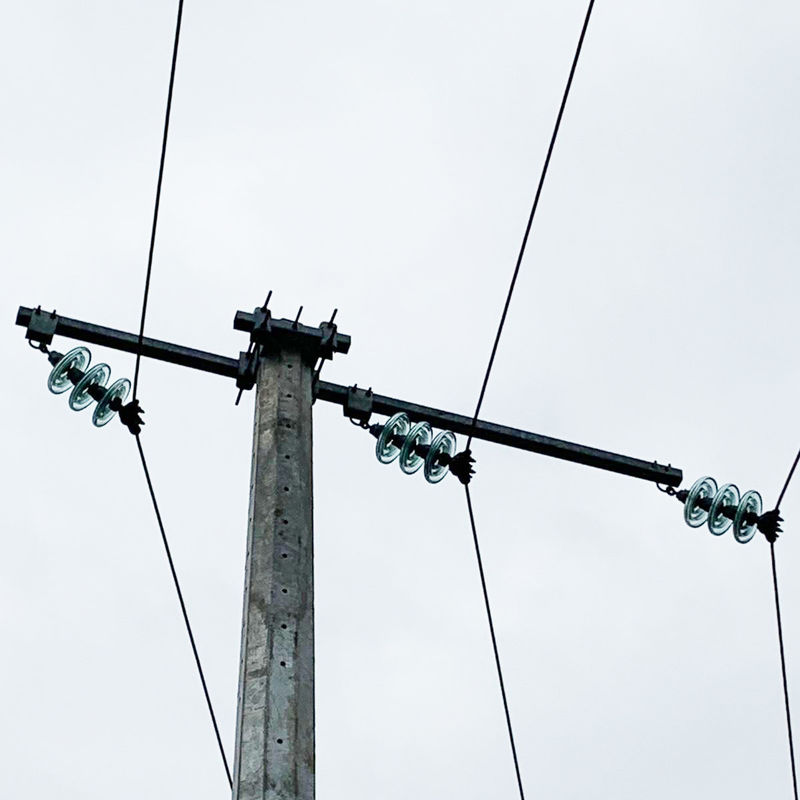

Galvanized Power Pole Accessories  33KV 6300S Power Pole Cross Arm 1Galvanized Power Pole Accessories  33KV 6300S Power Pole Cross Arm 2Galvanized Power Pole Accessories  33KV 6300S Power Pole Cross Arm 3


 Shaft sections -The diameter of shaft cross section should not be less than the design value. The positive tolerance of the section diameter of male segments of slip joints along lap length shall not exceed 2 mm.
- The length of shaft sections shall be within -15mm to +50 mm of the design values.
- The straightness of shaft length shall be within 2 per thousand.
- The twisting of shaft cross sections shall be within 1:0 degrees per 2 meter length.
- The ovalization of cross section when measured as the difference
between the two perpendicular diameters of section shall not exceed 2 percent of the diameter.
 Cross arms -The location of attachment and connection devices on the shaft considering the vertical direction and angular orientation to the center shall be kept accurate. The accepted tolerance along vertical direction is ±10 mm.
- The diameter of cross arm sections shall not be less than the design values, the positive tolerance shall not exceed +3 mm.
- The length of cross arm shall be within -25 mm & +50 mm.
- The rise of cross arm axis with respect to its theoretical axis shall not exceed ±9 mm per meter.
 Erected structure -The lap length in the slip joints shall be within -15 mm & +50 mm.
- The tolerances in total length of shaft will be a function of tolerances of the shaft length & lap length in ship joints. Anyhow the total shortening of shaft length shall not exceed 0.25 percent of shaft



   Galvanized Power Pole Accessories  33KV 6300S Power Pole Cross Arm 4
Packaging & Shipping

We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.

Trade terms:

1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
3. Package: Plastic woven bag or old blanket or according to clients requirement.
4. Delivery time: within 30-60 workdays after receiving deposit.

Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.
2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we could accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.It will be better if we can know the estimated purchase quantity of every year.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.
