Custom Made Steel Utility Pole 18 Meter Height With Black Epoxy Paint

Custom Made Steel Utility Pole 18 Meter Height With Black Epoxy Paint

  • High Light

    electric utility pole


    steel transmission pole

  • Material
    Hot Roll Steel Q345B, GR65
  • Height
    15m - 30m
  • Thickness
    7mm -16mm
  • Surface Treatment
    Hot Dip Galvanized
  • Powder Coated
    White, Blue, Sliver, Grey Or More
  • Wind Resistance
    160 Km/h
  • Shape
    Round Or Polygonal
  • Place of Origin
  • Brand Name
  • Certification
    ISO 9001
  • Model Number
  • Minimum Order Quantity
    2 Pieces
  • Price
    $300 - $3,999.00/ Piece
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    30-60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every month

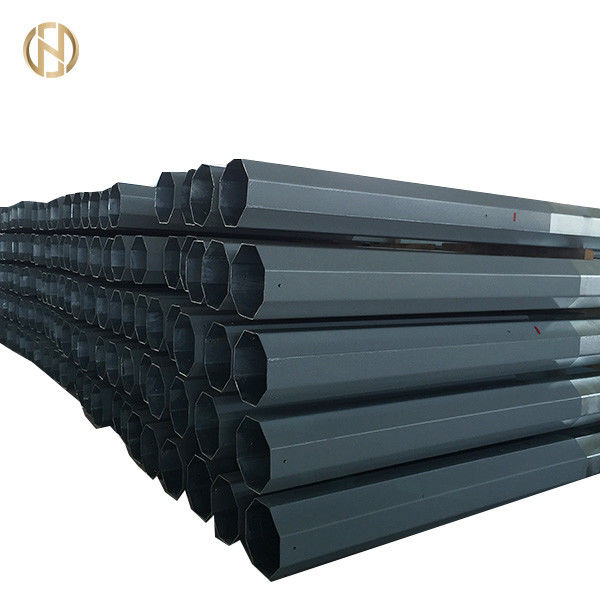

Custom Made Steel Utility Pole 18 Meter Height With Black Epoxy Paint

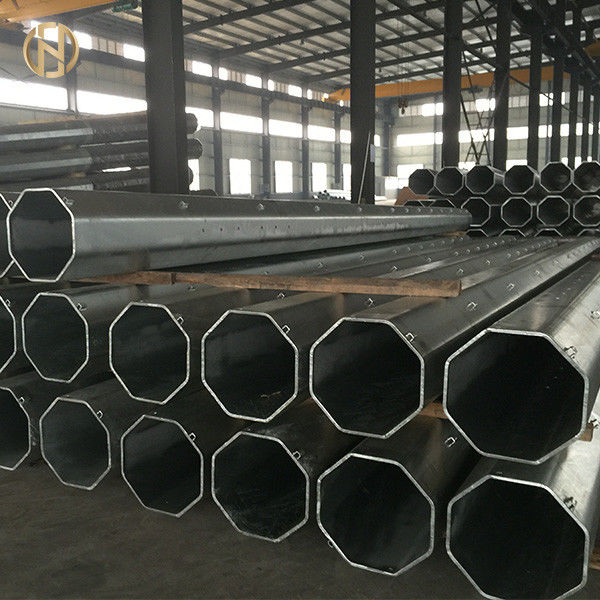

                                           Custom Made Steel Utility Pole 18 Meter Height With Black Epoxy Paint


Product Description

The products above are steel utility poles made specifically for power distribution between 10KV to 550KV.

  • Products are designed and manufactured according to ANSI/TIA-222-G structural standards
  • Only our company can comply to these global manufacturing standards which gives us an edge over our competitors
  • Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
  • Pole shaft material : ASTM GR65,GR50,Q460 A572,S355,Q345/Q235,etc
  • Material code : GB/T1591-2008,GB/T700-2006
  • We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
  • We provide additional assistance if required including supervision and supplementary components
  • We accommodate various designs according to our customers’ specifications

To design in accordance with PLS software, we will require the following design parameters:

  1. The operational wind speed of the region where the pole will be used
  2. The Antenna load and height of the pole
  3. The total height of the pole itself

Schedule for the appropriate line items at the respective quoted rates. Where in the case of no specific rate is given for a particular spare item in the Schedule, such item shall be supplied by the Contractor at a rate based on comparable Schedule rates. If any spare should be ordered after the date of the Taking-over Certificate, the price may be subject to mutually agreed adjustment. Any spare material so ordered is to be strictly interchangeable with the parts for which it is intended, packed or treated in such a manner so as to be suitable for storage in the climate at the Site for an indefinite period and each part is to be clearly marked for identification purpose outside the package where applicable. Spare tower or support material is to be delivered in sets for each individual tower or support. Spare conductor and OPGW are to be provided on drums protected as specified and treated in an approved manner to resist termite and fungus attack. Spare material so provided must be delivered to such stores as may be nominated by the Principal and delivery will not be deemed to be complete until the packaged material has been checked by a representative of the Principal and a receipt obtained. Prior to the handing over date for the contract spares, the Contractor shall be responsible for all security arrangements and the safe custody of the spare materials. The works under this contract form part of a comprehensive project and the Contractor is to cooperate with other contractors as may be necessary. This Contract also provides for all parts of the work to be completed in every respect for commercial operation to the requirements of the Department of Electrical Services, Negara Brunei Darussalam. Notwithstanding that any details, accessories, etc. required for the complete installation and satisfactory operation of the Plant are not specifically mentioned in the specifications, such details are to be considered included in the Contract Price. Unless stated otherwise, this Contract does not include substation work of any nature with the exception of connections to gantry structures, terminations of 66kV underground cable circuits on support lattice structures at the substation or the provisions of and connections to down dropper anchor blocks, where required.


B. Load Testing
% Load Load (kg) Act. Load (kg) Time (min.) Deflection (mm) Recovery (mm) Remarks
40% 512 513 1 1105 42 No sign of failure or damage
50% 640 642 1 1385 55
70% 896 897 2 1920 73
80% 1024 1026 2 2182 78
85% 1088 1088 2 2305 82
90% 1152 1152 2 2438 83
95% 1216 1216 2 2565 93
100% 1280 1280 2 2700 104
