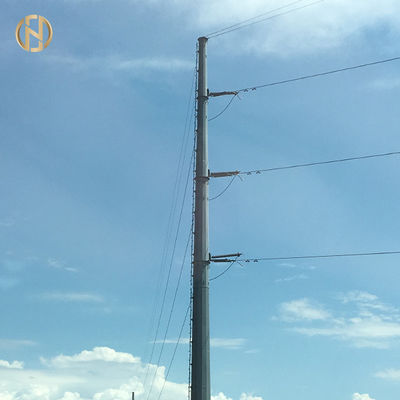

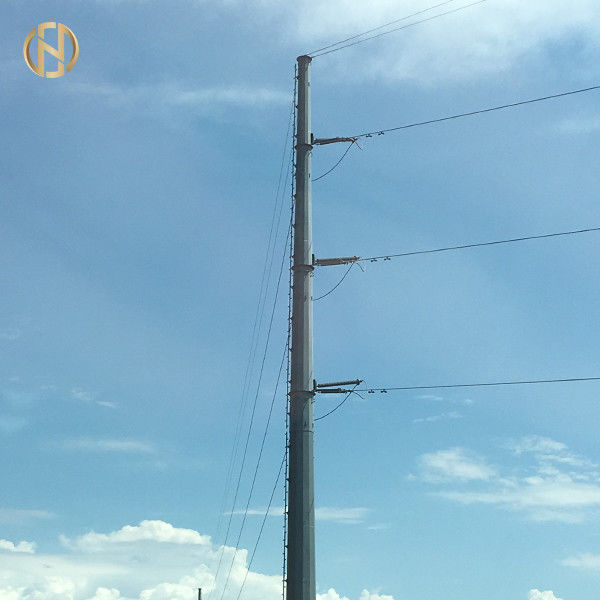

138KV HDG 35M,Single Circuit Pole with baseplate and M48 Anchor bolt 60-90degree
Product Description
The products above are 138KV HDG 35M,Single Circuit Pole with baseplate and M48 Anchor bolt 60-90degree
UNITS OP MEASUREMENT Metric or system international (S.I.) units of measurement shall be employed in all correspondence, Technical Schedules and drawings. Angular measurement shall be in degrees, with 90° comprising one right angle. 1.7 LANGUAGE English Language shall be used in all documents contained in the Tender and in all correspondence between the Contractor and DES. Whenever any item is required under the terms of the Contract to be written, marked, printed or engraved, the English language shall be used except where otherwise stated in the specification. 1.8 CORRESPONDENCE All correspondence on matters arising out of the Contract shall be addressed by the Contractor to:- The Director, Department of Electrical Services, Old Airport Road, Berakas, Bandar Seri Begawan BB3510, Negera Brunei Darussalam. 1.9 SAFETY OF PERSONNEL The Contractor shall provide a full time Safety Officer having the necessary competency and experience to the approval of the Engineer at site. Maximum safety precautions consistent with good erection practice in all site works must be afforded to the personnel directly engaged on this Contract. A Safety Manual shall be submitted by the Contractor to DES for approval before commencement of site work. All such safety requirements shall conform strictly to the prudent occupational safety and health regulations and pertinent industry practices being adopted.
| Type | 138KV HDG 35M,Single Circuit Pole with baseplate and M48 Anchor bolt 60-90degree |
| Suitable Uses | 138kv Power Distribution |
| Shape |
Tubular, Polygonal 12side, 16side , 8side
|
| Material |
ASTM 633 , ASTM 572 GR65, Q500 |
| Tolerance of Dimensions | +- 0.05% |
| Power | 138KV,230KV |
| Safety Factor |
Safety factor for conducting wire : 12 Safety factor for grounding wire : 12 |
| Design Load in Kg | 300~ 1000 Kg applied to 50cm from pole top |
| Engraving | Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements |
| Surface Treatment |
Hot Dip Galvanization according to ASTM A123 standards/Powder Coating
|
| Joint of Poles |
Insert Mode, Inner Flange Mode, Face to Face Joint Mode.
|
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 270Km/Hour 72m/s |
| Minimum Yield Strength | 460 mpa,470Mpa, 515Mpa |
| Minimum Ultimate Tensile Strength | 560 mpa,580mpa, 600mpa, 610mpa |
| Max Ultimate Tensile Strength | 630 mpa |
| Standard | ISO 9001 |
| Length per section | Within 14.5meter max |
| Welding |
Internal and external double welding process produces a seamless surface Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 11.5mm, 12mm , 17mm, 25mm |
| Production Process | Verification of Materials→Cutting→Molding or Bending→Vertical Welding→Verification of Dimensions→Flange Welding→Hole Drilling→Calibration→Deburr Process→Galvanization or Powder Coating ,Painting→Recalibration→Threading→Packaging |

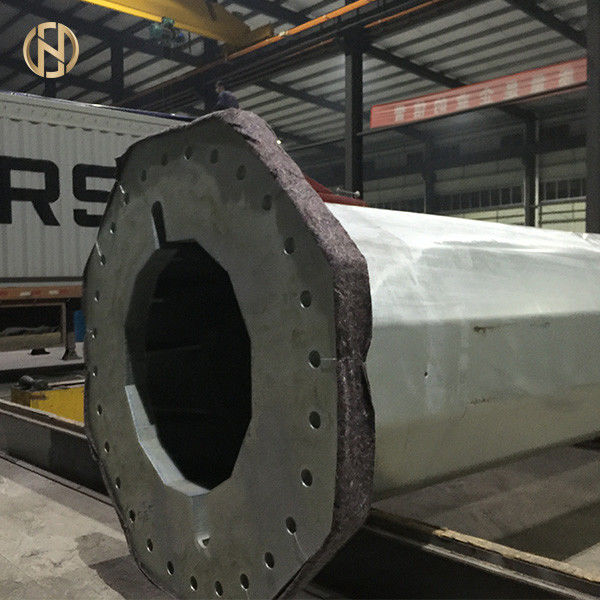

| Packaging | Our poles are usually covered by a mat or straw bale at the top and bottom. Packaging can also be done according to clients’ requirements. |
- The price stated includes pole shaft, base plate, cross arms, anchor bolts and any additional accessories required.
- Shipping Port: Shanghai Port. For FOB, CFR or CIF quotes, please specify which exact shipping model you require, then inform us of the quantity of your order so that we can accurately calculate the local transport charges and sea freight.
Our products are sold all over the world, you can rest assured.
