138KV HDG 33M Electric Utility Pole With Baseplate And M42 Anchor Bolt 100FT 105FT 0-5 Degree

138KV HDG 33M Electric Utility Pole With Baseplate And M42 Anchor Bolt 100FT 105FT 0-5 Degree

  • High Light

    electric utility pole

    ,

    steel power poles

  • Material
    Gr65, Q500
  • Height
    32,33,35meter
  • Thickness
    7mm -16mm
  • Powder Coated
    White, Blue, Sliver, Grey Or More
  • Surface Treatment
    Hot Dip Galvanized
  • Wind Resistance
    270 Km/h
  • Shape
    Round Or Polygonal
  • Place of Origin
    CHINA
  • Brand Name
    FUTAO
  • Certification
    ISO 9001
  • Model Number
    EP031
  • Minimum Order Quantity
    2 Pieces
  • Price
    $300 - $3,999.00/ Piece
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    30-60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every month

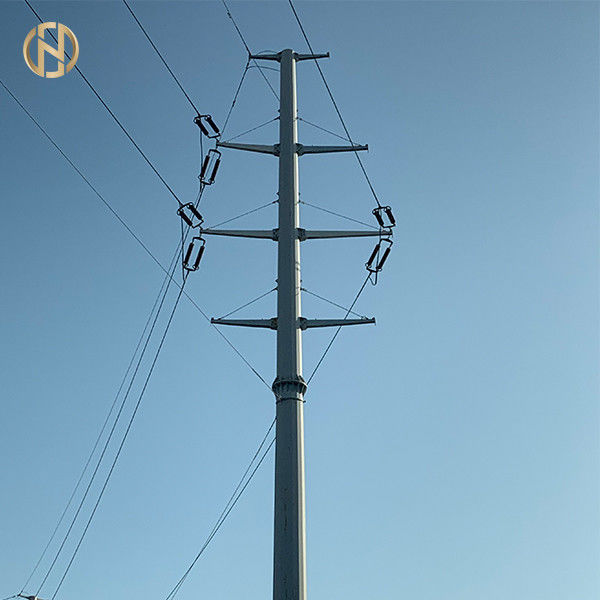

138KV HDG 33M Electric Utility Pole With Baseplate And M42 Anchor Bolt 100FT 105FT 0-5 Degree

138KV HDG 33M,Single Circuit Pole with baseplate and M42 Anchor bolt,100ft, 105ft 0-5degree



Product Description


The products above are steel utility poles made specifically for power distribution between 10KV to 550KV.

  • Products are designed and manufactured according to ANSI/TIA-222-G structural standards
  • Only our company can comply to these global manufacturing standards which gives us an edge over our competitors
  • Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
  • Pole shaft material : ASTM GR65,GR50,Q460 A572,S355,Q345/Q235,etc
  • Material code : GB/T1591-2008,GB/T700-2006
  • We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
  • We provide additional assistance if required including supervision and supplementary components
  • We accommodate various designs according to our customers’ specifications

UNITS OP MEASUREMENT Metric or system international (S.I.) units of measurement shall be employed in all correspondence, Technical Schedules and drawings. Angular measurement shall be in degrees, with 90° comprising one right angle. 1.7 LANGUAGE English Language shall be used in all documents contained in the Tender and in all correspondence between the Contractor and DES. Whenever any item is required under the terms of the Contract to be written, marked, printed or engraved, the English language shall be used except where otherwise stated in the specification. 1.8 CORRESPONDENCE All correspondence on matters arising out of the Contract shall be addressed by the Contractor to:- The Director, Department of Electrical Services, Old Airport Road, Berakas, Bandar Seri Begawan BB3510, Negera Brunei Darussalam. 1.9 SAFETY OF PERSONNEL The Contractor shall provide a full time Safety Officer having the necessary competency and experience to the approval of the Engineer at site. Maximum safety precautions consistent with good erection practice in all site works must be afforded to the personnel directly engaged on this Contract. A Safety Manual shall be submitted by the Contractor to DES for approval before commencement of site work. All such safety requirements shall conform strictly to the prudent occupational safety and health regulations and pertinent industry practices being adopted.

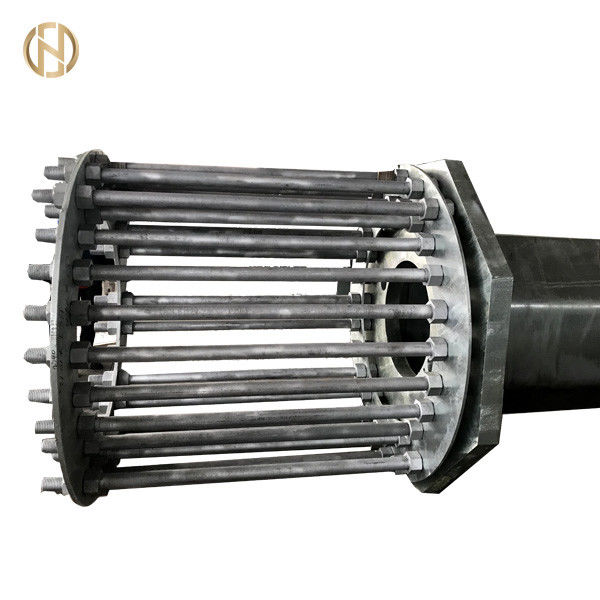

Type 138KV Single Circuit Intermediate Pole with baseplate and M42 Anchor bolt
Suitable Uses 138kv Power Distribution
Shape

Tubular, Polygonal 12side, 16side , 8side



Material

ASTM 633 , ASTM 572 GR65, Q500

Tolerance of Dimensions +- 0.05%
Power 138KV,230KV
Safety Factor

Safety factor for conducting wire : 10

Safety factor for grounding wire : 10

Design Load in Kg 300~ 1000 Kg applied to 50cm from pole top
Engraving Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements
Surface Treatment

Hot Dip Galvanization according to ASTM A123 standards/Powder Coating



Joint of Poles

Insert Mode, Inner Flange Mode, Face to Face Joint Mode.



Design of pole Against earthquake of 8 grade
Wind Speed 270Km/Hour 72m/s
Minimum Yield Strength 450 mpa,460Mpa, 500Mpa
Minimum Ultimate Tensile Strength 550 mpa,570mpa, 590mpa, 600mpa
Max Ultimate Tensile Strength 620 mpa
Standard ISO 9001
Length per section Within 14.5meter
Welding

Internal and external double welding process produces a seamless surface

Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness 7mm, 8mm, 9.5mm, 11.5mm, 12mm , 17mm,
Production Process Verification of Materials→Cutting→Molding or Bending→Vertical Welding→Verification of Dimensions→Flange Welding→Hole Drilling→Calibration→Deburr Process→Galvanization or Powder Coating ,Painting→Recalibration→Threading→Packaging
Packaging Our poles are usually covered by a mat or straw bale at the top and bottom. Packaging can also be done according to clients’ requirements.



138KV HDG 33M Electric Utility Pole With Baseplate And M42 Anchor Bolt 100FT 105FT 0-5 Degree 0

  • Price Term : FOB, CFR or CIF

- The price stated includes pole shaft, base plate, cross arms, anchor bolts and any additional accessories required.

- Shipping Port: Shanghai Port. For FOB, CFR or CIF quotes, please specify which exact shipping model you require, then inform us of the quantity of your order so that we can accurately calculate the local transport charges and sea freight.

  • MOQ : 1 set for customized
  • Payment: 30% by T/T as initial deposit, remaining balance by T/T or L/C at sight before shipment. Other payment terms can be negotiated.
  • Delivery Time : Goods will be ready for shipment within 10 working days after receiving initial deposit
  • Warranty : 30 years
  • Surface Treatment : Hot Dip Galvanization
