11m 11kV-33kV Hot Dip Galvanized Steel Electrical Pole – Q235B / Q355B Octagonal Utility Pole for Medium-Voltage Overhead Lines

H1:11m 11kV-33kV Hot Dip Galvanized Steel Electrical Pole – Q235B / Q355B Octagonal Utility Pole for Medium-Voltage Overhead Lines

H2:Product Overview

The 11m steel electrical pole is one of the most searched and widely specified heights across Southeast Asia. From Malaysia’s expanding distribution networks to Indonesia’s rural electrification programs and Philippines’ NEA-standard projects, the 11m pole is the go-to solution for medium-voltage overhead lines.

Our 11m hot dip galvanized steel electrical pole is purpose-built for 11kV and 33kV distribution networks. Manufactured from Q235B (standard) or Q355B (upgrade) steel, featuring octagonal tapered design, ISO 1461 hot-dip galvanizing (≥85μm), 160km/h typhoon resistance, and optional two-section design for simplified logistics. This pole delivers the optimal balance of height, strength, and cost-effectiveness for the region’s most demanding distribution projects.

H2:The Problem

• Insufficient pole height for span requirements – 9m poles sometimes cannot achieve required conductor clearances over roads, rivers, and obstructions. 11m provides the extra margin needed for safety and compliance.

• Corrosion in high-humidity environments – Southeast Asia’s tropical climate with annual rainfall exceeding 2,000mm and humidity approaching 100% accelerates steel degradation. Paint and epoxy coatings fail rapidly; substandard galvanizing cannot endure the region’s severe conditions.

• Typhoon-induced failures – Under-designed poles collapse during storms, causing extensive outages and costly repairs.

• Logistical challenges – Longer poles require careful handling and transport planning. Two-section designs solve this problem.

• Inconsistent quality – Without proper quality management systems and third-party verification, pole quality varies widely across suppliers.

H2:The Cause

1. Height limitations of shorter poles – 9m poles may not provide adequate clearance for 33kV lines crossing roads or rivers. 11m is the minimum height specified in many Southeast Asian distribution standards.

2. Inadequate corrosion protection – Many suppliers use galvanizing below 70μm, insufficient for ISO 1461 compliance in tropical environments. Salt spray test endurance under 1,500 hours fails to guarantee long-term protection.

3. Generic wind design – Standard poles designed for 120km/h winds fail in Southeast Asia’s typhoon belt. 160km/h design is essential.

4. Logistics constraints – 11m single-section poles can be challenging to transport in remote areas with narrow roads. Two-section designs with slip joints solve this challenge.

H2:The Solution

✅ Optimal 11m height – Provides superior conductor clearance for 11kV and 33kV lines. Meets or exceeds clearance requirements for road crossings, river spans, and urban installations.

✅ Material flexibility – Q235B (cost-effective, inland applications) or Q355B (high-strength, coastal typhoon zones).

✅ Superior corrosion protection – ISO 1461 hot-dip galvanizing with ≥85μm zinc coating. Salt spray test ≥1,500 hours. 25-30 year service life.

✅ 160km/h typhoon resistance – Engineered for Southeast Asia’s extreme weather. Octagonal shape minimizes wind drag. Safety factor 2.0.

✅ Flexible section design – Available as single-section or two-section with slip joint/flange connection for easy transport and on-site assembly.

✅ Certified Quality – Our factory holds ISO 9001 certification. Products are manufactured to international standards and can be verified by third-party laboratories (SGS, BV) on request. Welding meets AWS D1.1 requirements.

H2:Specifications

H2:Application

🏗️ Urban and suburban distribution – 11m poles provide optimal clearance for 11kV-33kV lines along city streets and suburban roads.

🌾 Rural grid extension – Government-backed rural electrification projects across Indonesia, Philippines, and Vietnam specify 11m poles for medium-voltage distribution.

🏭 Industrial zones – Reliable power supply for factories, warehouses, and industrial parks.

🌉 Road and river crossings – 11m height provides adequate conductor clearance for crossing roads, railways, and small waterways.

🏘️ Residential developments – New housing estates and commercial developments require robust distribution infrastructure.

☀️ Renewable energy projects – Solar farm and wind project collector lines use 11m poles for medium-voltage collection networks.

H2:How It Works

(Same as Product 1 – forming, galvanizing, sectional design, foundation integration.)

H2:How to Choose

H2:FAQ

Q1: Why choose 11m over 9m?

11m provides additional conductor clearance for 33kV lines, road crossings, and spans over obstructions. In many Southeast Asian standards, 11m is the minimum specified height for medium-voltage distribution. The extra height also allows for longer spans between poles, reducing the total number of poles required for a project.

Q2: Is Q235B sufficient for 11m 33kV poles?

For inland areas with design wind speeds ≤120km/h and standard loads, Q235B is adequate. However, for coastal typhoon zones or heavy conductor loads (e.g., double-circuit 33kV), we recommend Q355B for its 50% higher yield strength.

Q3: What is the advantage of two-section design?

Two-section design with slip joint enables easier transport, especially in remote areas with narrow roads or limited access. Sections are assembled on-site using friction-fit joints – no welding required. This reduces transport costs and simplifies installation.

Q4: Can these poles be used for both 11kV and 33kV?

Yes. The same pole design can support both 11kV and 33kV lines with appropriate cross-arm configurations and insulator specifications. We provide customized cross-arm designs based on your specific conductor type, circuit configuration, and load requirements.

Q5: Can you arrange SGS inspection before shipment?

Absolutely. We welcome third-party inspections at our facility prior to shipment. SGS, BV, or any accredited inspection body can verify galvanizing thickness, welding quality, dimensions, and material composition. Full inspection reports will be provided.

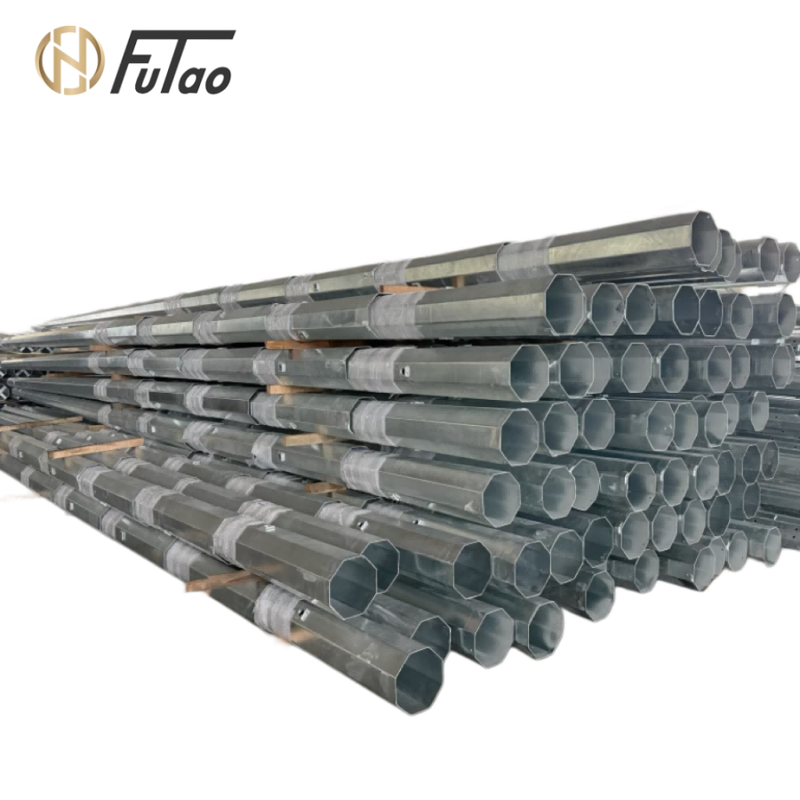

Packaging & Shipping

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.

Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Our Service

1. We will reply all your enquiries in 12 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. We have experienced and professional design team. UEM & UBM are welcome.
4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
5. Special discount or comission and protection of sales are provided to our distributors.
6. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
7. We have our own inspection team to control the quality.

Welcome to our factory!
