300daN 200daN Metal Electric Pole Hot Roll Steel Q345B GR65 2 - 3.5mm

300daN 200daN Metal Electric Pole Hot Roll Steel Q345B GR65 2 - 3.5mm

  • High Light

    Hot Dip Galvanized Metal Power Pole

    ,

    200daN Metal Electric Pole

    ,

    Q345B Electric Metal Power Pole

  • Surface Treatment
    Hot Dip Galvanized
  • Material
    Hot Roll Steel Q345B, GR65
  • Height
    9M
  • Thickness
    2-3.5mm
  • Powder Coated
    White, Blue, Sliver, Grey Or More
  • Wind Resistance
    160 Km/h
  • Shape
    Round Or Polygonal
  • Place of Origin
    CHINA
  • Brand Name
    Futao
  • Certification
    ISO 9001
  • Model Number
    9M-200daN
  • Minimum Order Quantity
    2 Pieces
  • Price
    $300 - $3,999.00/ Piece
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    30-60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every month

300daN 200daN Metal Electric Pole Hot Roll Steel Q345B GR65 2 - 3.5mm

                                  Steel pole 300daN ,200daN ,Metail power pole , BPDB Bangladesh market



Product Description


Steel’s profile as a green material has led to growing interest in replacing aging wood electric utility distribution poles with poles made of steel. A detailed life cycle assessment study published in 2013 finds that replacing wood utility poles with galvanized steel utility poles results in several significant environmental benefits, including lower levels of greenhouse gas and aerosol emissions associated with global climate change; a lower burden on critical energy resources; reduced impacts on the habitats of many threatened and endangered species; and reduced impacts associated with hazardous emissions and wastes.



The products above are steel utility poles made specifically for steel pole 300daN ,200daN ,Metail power pole , BPDB Bangladesh market  11KV

  • Products are designed and manufactured according to ANSI/TIA-222-G structural standards
  • Only our company can comply to these global manufacturing standards which gives us an edge over our competitors
  • Products are hot dip galvanized according to ISO 1461 Stardand.
  • Pole shaft material : Q355
  • Material code : ASTM 572 GR50
  • We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
  • We provide additional assistance if required including supervision and supplementary components
  • We accommodate various designs according to our customers’ specifications

To design in accordance with PLS software, we will require the following design parameters:


Product Specifications


Product Name

steel pole 300daN ,200daN ,Metail power pole , BPDB Bangladesh market

Suitable Uses

11kv Power Distribution

Shape

Octagonal.



Material



Q355B/ A572 gr50, Minimum yield strength >= 355n/mm2

Q235B/A36, Minimum yield strength >= 235n/mm2

Other materials may be used as per request (Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52)

Tolerance of Dimensions

+- 1%

Power

10 -15KV

Safety Factor

Safety factor for conducting wire: 2.1

Safety factor for grounding wire: 2.1

Design Load in Kg

300 - 1000 Kg applied to 50cm from pole top

Engraving

Name plate through rivet or glue, engraving, embossment as per customers' requirement

Surface Treatment

Hot Dip Galvanization according to ASTM A123 standards/Powder Coating

Joint of Poles

Insert Mode, Inner Flange Mode, Face to Face Joint Mode

Design of Poles

Against earthquake of 8 grade

Wind Resistance

120 km/h or 32m/s

Minimum Yield Strength

355 mpa

Min to Max Ultimate Tensile Strength

490 mpa - 620 mpa

Standard

ISO 9001

Length per Section

2 Section /1 section

Welding

Internal and external double welding process produces a seamless surface

Welding Standard: AWS (American Welding Society) D 1.1

Thickness

2-3mm



Packaging & Shipping




We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

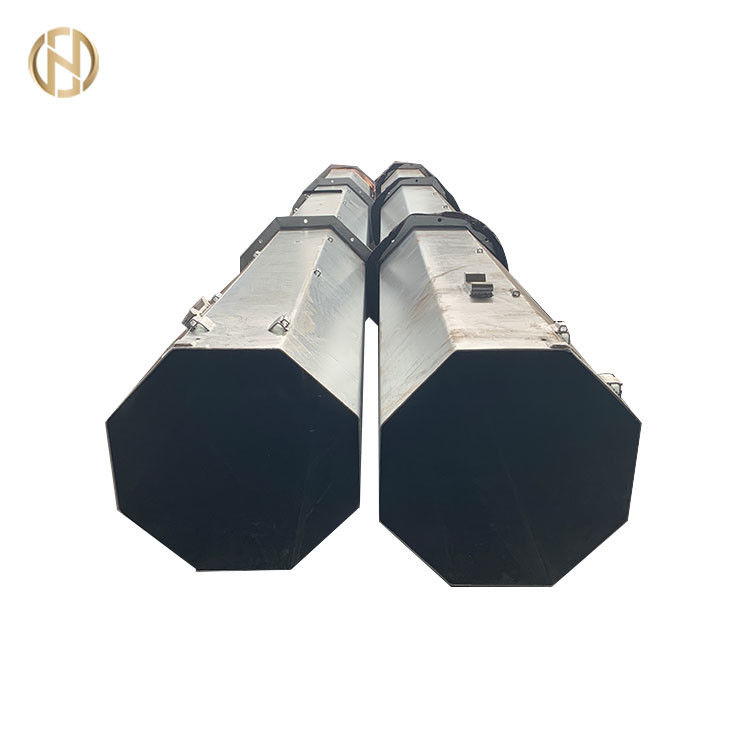

300daN 200daN Metal Electric Pole Hot Roll Steel Q345B GR65 2 - 3.5mm 0



FAQ


Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.

2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.
