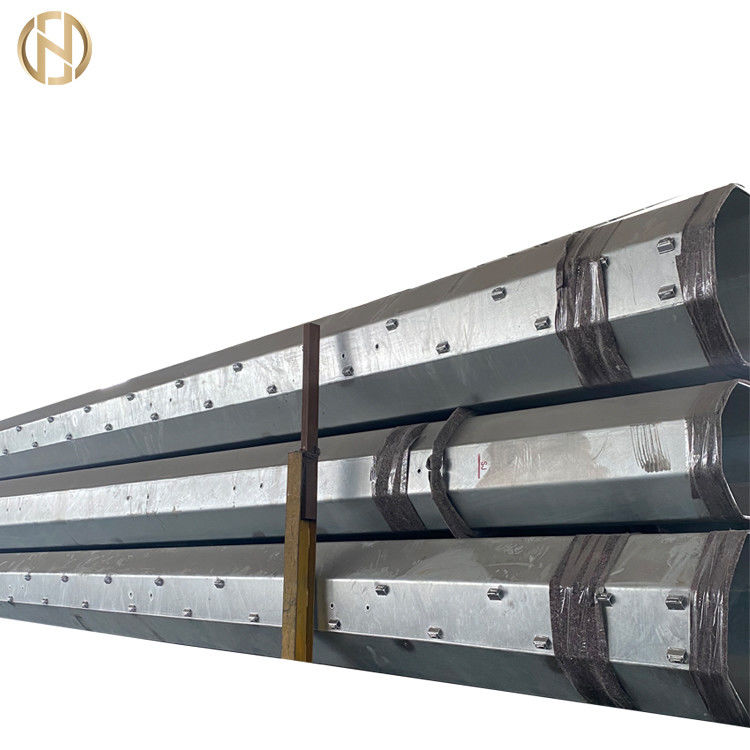

Customized Metal Power Pole 132KV Transmission Line HDG Surface

Customized Metal Power Pole 132KV Transmission Line HDG Surface

  • High Light

    Customized Metal Power Pole

    ,

    HDG Surface Metal Power Pole

    ,

    132KV Metal Power Pole

  • Surface Treatment
    HDG
  • Material
    Q500C
  • Thickness
    7.75,9.5,17mm
  • Height
    32Meter
  • Color
    Gray
  • Shape
    Tubular 12side
  • Place of Origin
    China
  • Brand Name
    Futao
  • Certification
    ISO9001
  • Minimum Order Quantity
    1.1 pieces
  • Price
    20000CNY- 80000CNY
  • Packaging Details
    Wrap by mat or straw mat
  • Delivery Time
    33 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Please talk with our staffs to get more details

Customized Metal Power Pole 132KV Transmission Line HDG Surface

                     Customized Metal Power Pole  any height and thickness any color 132kv tranmission line

Product Description


Utility poles provide more than overhead support for electrical lines - they also provide the infrastructure for carrying telephone lines, communication cable, optical fiber cables, streetlights, traffic equipment, and broadcast equipment.

To design in accordance with PLS  Poles software, by 3-D drawing. we will require the following design parameters:


  1. The operational wind speed of the region where the pole will be used
  2. The Antenna load and height of the pole
  3. The total height of the pole itself

Product Specifications


Product Name

Customized Metal Power Pole, any height and thickness, any color 132kv tranmission line

Suitable Uses

Power Distribution

Shape

Tubular, 12side


Material


Q500C, YS>=500Mpa.

Tolerance of Dimensions

+- 1%

Power

132 ,138kv

Safety Factor

Safety factor for conducting wire: 5
Safety factor for grounding wire: 5

Design Load in Kg

load tree

Engraving

Name plate through rivet or glue, engraving, embossment as per customers' requirement

Surface Treatment

Hot Dip Galvanization according to ASTM A123 standards/Powder Coating

Joint of Poles

Insert Mode, Inner Flange Mode, Face to Face Joint Mode

Design of Poles

ASEC 72

Wind Resistance

160 km/h or 70m/s

Minimum Yield Strength

500Mpa.

Min to Max Ultimate Tensile Strength

600-720mpa

Standard

ISO 9001

Length per Section

1.5 time of total height

Welding

Internal and external double welding process produces a seamless surface
Welding Standard: AWS (American Welding Society) D 1.1

Thickness

7.75, 9.5, 12mm


Packaging & Shipping



We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.

Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Customized Metal Power Pole 132KV Transmission Line HDG Surface 0

FAQ


Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.
2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.


Our Service


1. We will reply all your enquiries in 24 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. Customized designs are available. UEM & UBM are welcome.
4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributors.
6. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
