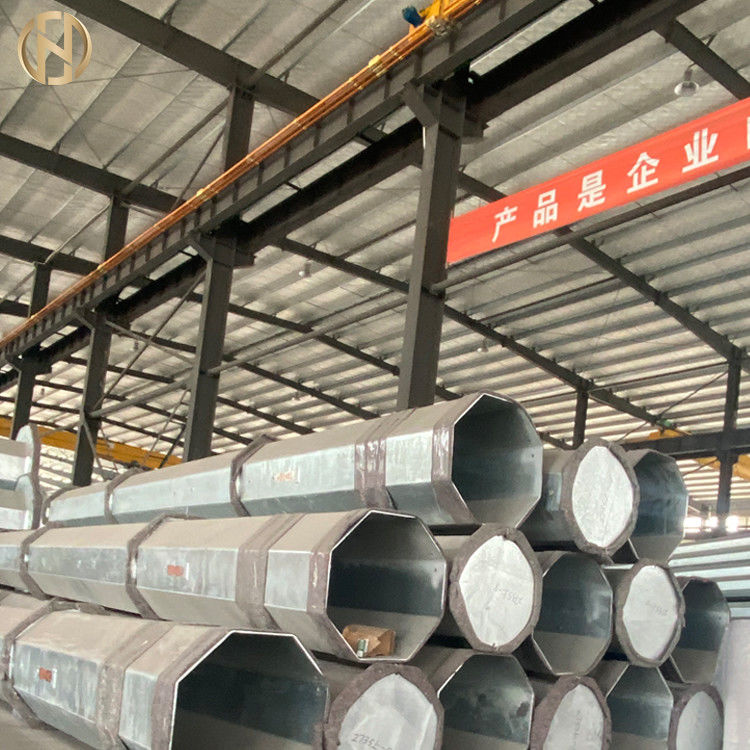

Tubular Metal Electrical Power Pole 11M 450daN 550daN Low Silicon Well Finished

Brand Name:	Futao
Model Number:	9M-200daN
MOQ:	5Pieces
Price:	$300 - $1050/ Piece
Delivery Time:	40 workdays
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO 9001

Surface Treatment:

Hot Dip Galvanized

Material:

Hot Roll Steel Q345B, GR65

Height:

Thickness:

2-3.5mm

Powder Coated:

White, Blue, Sliver, Grey Or More

Wind Resistance:

160 Km/h

Shape:

Round Or Polygonal

Packaging Details:

40HC or OT, wrap by mat or straw mat

Supply Ability:

2000 pieces every month

Highlight:

Tubular Metal Electrical Pole

Metal Power Pole 450daN

11M Metal Power Pole

Product Description

11M Tubular Pole 450daN 550daN ,Hot Dip Galvanization Steel Utility Pole,Low Silicon

Product Description

Transmission line poles and towers are tower structures used to support and raise overhead conductors, lightning rods and other accessories, so that conductors and conductors, poles and towers, conductors and lightning rods, and conductors on the ground or across objects to maintain a specified safe distance from the towering structure.According to the purposes are: tension tower, straight tower, corner tower, transposition tower (replacement of wire phase position tower), terminal tower and spanning tower.

To design in accordance with PLS software, we will require the following design parameters:

Product Specifications

Product Name	11M tubular pole 450daN 550daN ,hot dip galvanization steel utility pole,low silicon
Suitable Uses	11kv Power Distribution
Shape	Octagonal.
Material	Q355B/ A572 gr50, Minimum yield strength >= 355n/mm² Q235B/A36, Minimum yield strength >= 235n/mm² Other materials may be used as per request (Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52)
Tolerance of Dimensions	+- 1%
Power	10 -15KV
Safety Factor	2.0
Design Load in Kg	450daN 500daN at 300mm from top
Engraving	Name plate through rivet or glue, engraving, embossment as per customers' requirement
Surface Treatment	Hot Dip Galvanization according to ASTM A123 standards/Powder Coating
Joint of Poles	Insert Mode, Inner Flange Mode, Face to Face Joint Mode
Design of Poles	Against earthquake of 8 grade
Wind Resistance	120 km/h or 32m/s
Minimum Yield Strength	355 mpa or 450mpa
Min to Max Ultimate Tensile Strength	490 mpa - 620 mpa
Standard	ISO 9001
Length per Section	2 Section /1 section
Welding	Internal and external double welding process produces a seamless surface Welding Standard: AWS (American Welding Society) D 1.1
Thickness	3mm, 3.5mm 4mm by design

Packaging & Shipping

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.

Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
