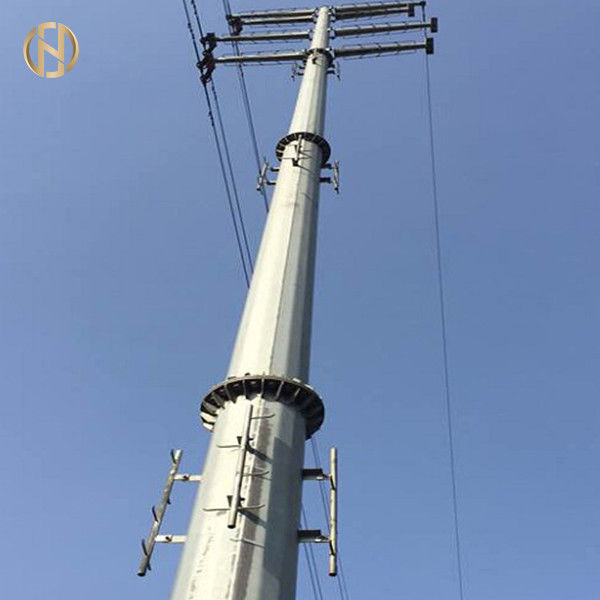

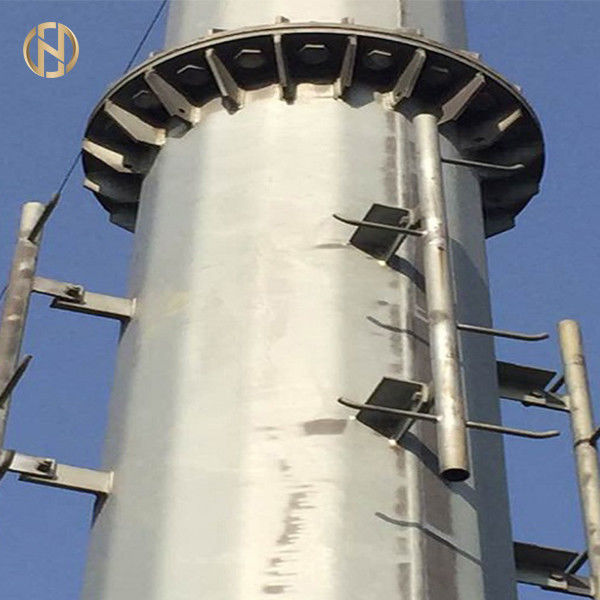

132KV 138KV Metal Power Pole  32 Meter Galvanised Power Pole 12 Side

132KV 138KV Metal Power Pole 32 Meter Galvanised Power Pole 12 Side

  • High Light

    metal utility poles


    metal electrical pole


    HDG Surface Galvanised Power Pole

  • Material
    Q500C Q460C Q355C
  • Thickness
  • Height
  • Shape
    Tubular 12side
  • Color
  • Surface Treatment
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    2 pieces
  • Price
    28000CNY- 88000CNY
  • Packaging Details
    Wrap by mat or straw mat
  • Delivery Time
    22 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Please talk with our staffs to get more details

132KV 138KV Metal Power Pole 32 Meter Galvanised Power Pole 12 Side

                    132kv 138kv metal power pole, Octagonal Galvanized Power Steel Pole 12side


Product Description

The products above are Customized NEA 50FT 55FT 60FT 65FT 70FT Octagonal Galvanized Power Steel Pole 69KV

  • Products are designed and manufactured according to ANSI/TIA-222-G structural standards
  • Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
  • Pole shaft material : Q500C
  • HS. code : 730820
  • We possess the ISO 9008 certification and are committed to giving our customers the best products and service
  • We provide additional assistance if required including supervision and supplementary components
  • We accommodate various designs according to our customers’ specifications

To design in accordance with PLS  Poles software, by 3-D drawing. we will require the following design parameters:


  1. The operational wind speed of the region where the pole will be used
  2. The Antenna load and height of the pole
  3. The total height of the pole itself

Product Specifications


Fy (Mpa)
t = thickness
Poles shaft and base plate and arms EN 10.025 S355 J0 * 355 345 335 325 470-630 470-630 470-630 470-630 t = 16 16 < t = 40 40 < t = 63 63 < t = 80
Anchor bolts Cl 6-8 ISO 898 480 600

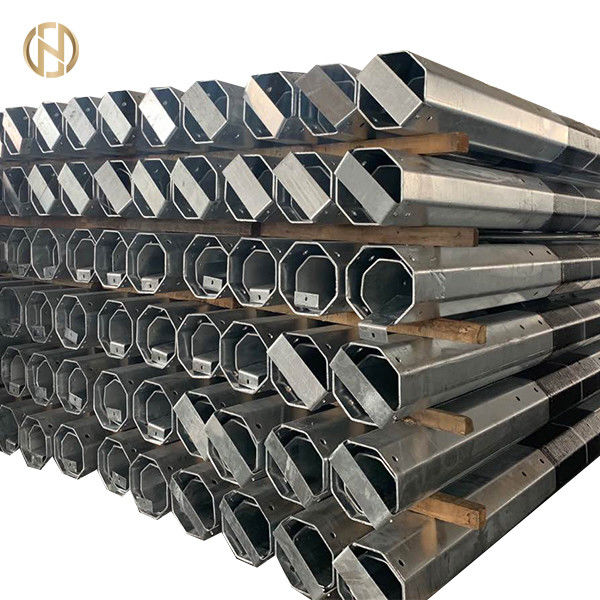

Packaging & Shipping


We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

132KV 138KV Metal Power Pole  32 Meter Galvanised Power Pole 12 Side 0



Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.

2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.
