Power Transmission Poles 5.3KN~20KN Bitumen Electric Power Pole , metal power pole black 98% zinc painting
Product Description

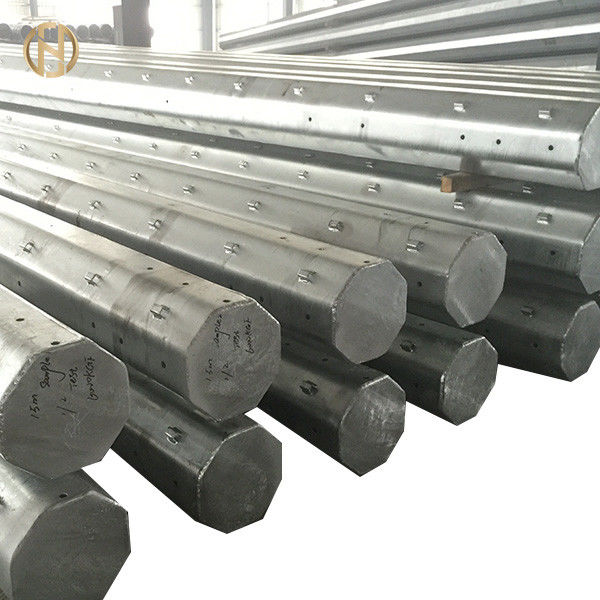

The products above are custom poles meant for overhead transmission lines.
Power Transmission Poles 5.3KN~20KN Bitumen Electric Power Pole , metal power pole
We can produce poles of various heights and dimensions for every situation.
To design in accordance with PLS software, we will require the following design parameters:
| Type | Power Transmission Poles 5.3KN~20KN Bitumen Electric Power Pole , metal power pole |
| Suitable Uses | Power Distribution |
| Shape( Cross section) |
Tubular, Polygonal or Conical
|
| Power grade | 10 KV 11KV 15KV |
| No of Section | One |
| Length (m) | 14.5Metre |
| Foundation | Direct burial- 2m |
| Working Load | 530daN, 5.3KN |
| Breaking Load | 1060daN, 10.6KN |
| Safety Factor | |
|
Other materials may be used as per request (Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52) |
|
| Minimum Yield Strength | 420 mpa |
| Minimum Ultimate Tensile Strength | 520 mpa |
| Max Ultimate Tensile Strength | 650mpa |
| EL % | >=15% |
| Top diameter(mm) | 150 |
| Bottom diameter(mm) | 305 |
| Min Thickness(mm) | >=4.1mm |
| Tolerance of Dimensions | +- 1% |
| Engraving | Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements |
| Surface Treatment |
Hot Dip Galvanization according to ASTM A123 standards/Powder Coating
|
| Joint of Poles |
Insert Mode, Inner Flange Mode, Face to Face Joint Mode.
|
| Loading Conditions | |
|
0-3 degree |
|
43m/s |
|
1.1 |
|
10% of overall pole length |
| Welding |
Internal and external double welding process produces a seamless surface Welding Standard :AWS ( American Welding Society ) D 1.1 |
Packaging & Shipping

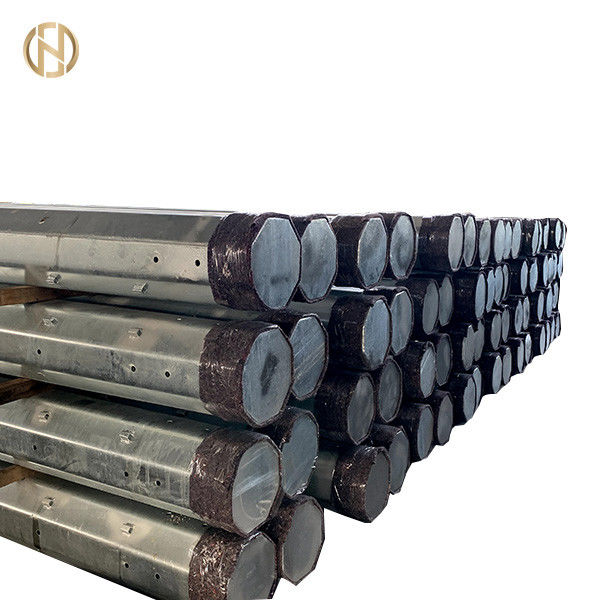

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Our Service
1. All enquiries are replied within 24 working hours.
2. Customized designs are welcome. UEM & UBM are welcome.
3. Not sure about where to start? Have questions regarding any our products or design? Our well-trained and professional engineers and staff are here to help.
4. Special discount and protection of sales are provided to our distributors.
5. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
Our products are sold all over the world, you can rest assured.
