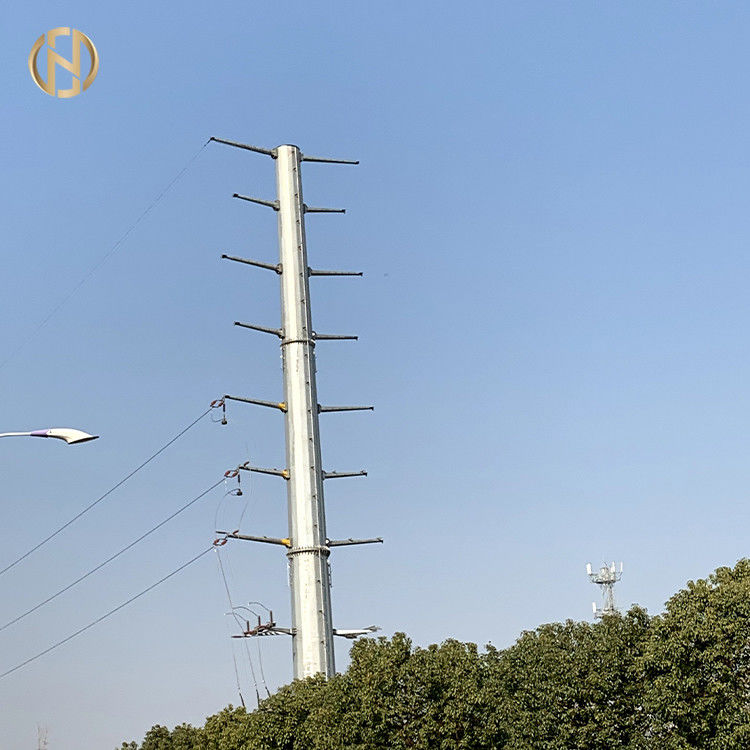

9M Galvanised Metal Steel Utility Pole 350daN 200daN For 11kv Power Distribution

9M Galvanised Metal Steel Utility Pole 350daN 200daN For 11kv Power Distribution

  • High Light

    Galvanised Metal Steel Utility Pole

    ,

    350daN Metal Steel Utility Pole

    ,

    9M Metal Steel Utility Pole 11kv

  • Surface Treatment
    Hot Dip Galvanized
  • Material
    Hot Roll Steel Q345B, GR65
  • Height
    9M
  • Thickness
    2-3.5mm
  • Powder Coated
    White, Blue, Sliver, Grey Or More
  • Wind Resistance
    160 Km/h
  • Shape
    Round Or Polygonal
  • Place of Origin
    CHINA
  • Brand Name
    FUTAO
  • Certification
    ISO 9001
  • Model Number
    9M-200daN
  • Minimum Order Quantity
    4Pieces
  • Price
    $300 - $1000/ Piece
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    5000 pieces every month

9M Galvanised Metal Steel Utility Pole 350daN 200daN For 11kv Power Distribution

                                   9M Steel Pole 350daN 200daN ,Metal Power Pole , Hot Dip Galvanization Steel Utility



Poles Feature


1. 6M-12M Tall Conical Lighting Pole
2. Economical and Tough
3. Easy to drill to mount fixtures
4. Easy to install
5. Large Handle Hole(door plate) for easy wiring
6. Steel wall thickness 3mm-5mm
7. Powder Coated and Hot Dipped Galvanized Steel for long lasting Durability
8. Lead time Vary-Please Call for details
9. Call for to discuss shipping options



To design in accordance with PLS software, we will require the following design parameters:


Product Specifications


Product Name

steel pole 300daN ,200daN ,Metail power pole , Desco Bangladesh market

Suitable Uses

11kv Power Distribution

Shape

Octagonal.



Material



Q355B/ A572 gr50, Minimum yield strength >= 355n/mm2

Q235B/A36, Minimum yield strength >= 235n/mm2

Other materials may be used as per request (Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52)

Tolerance of Dimensions

+- 1%

Power

10 -15KV

Safety Factor

Safety factor for conducting wire: 2.1

Safety factor for grounding wire: 2.1

Design Load in Kg

300 - 1000 Kg applied to 50cm from pole top

Engraving

Name plate through rivet or glue, engraving, embossment as per customers' requirement

Surface Treatment

Hot Dip Galvanization according to ASTM A123 standards/Powder Coating

Joint of Poles

Insert Mode, Inner Flange Mode, Face to Face Joint Mode

Design of Poles

Against earthquake of 8 grade

Wind Resistance

120 km/h or 32m/s

Minimum Yield Strength

355 mpa

Min to Max Ultimate Tensile Strength

490 mpa - 620 mpa

Standard

ISO 9001

Length per Section

2 Section /1 section

Welding

Internal and external double welding process produces a seamless surface

Welding Standard: AWS (American Welding Society) D 1.1

Thickness

2-3mm



Packaging & Shipping




We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
