Customized Size Metal Power Pole  69KV 90FT Steel Electric Pole Q460C

Customized Size Metal Power Pole 69KV 90FT Steel Electric Pole Q460C

  • Application
    Transmission Power
  • Thickness
    4,4.5,5,6,8mm
  • Material
    Q460C
  • Dimension Torlance
    +/-2%
  • Galvanized
    ASTM 123
  • Welding Stardand.
    AWS D 1.1
  • Place of Origin
    CHINA
  • Brand Name
    Futao
  • Certification
    ISO9001
  • Model Number
    69KV
  • Minimum Order Quantity
    2 pieces
  • Price
    4000CNY TO 10000CNY
  • Packaging Details
    Wrap by mat or straw mat
  • Delivery Time
    36 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Please talk with our staffs to get more details

Customized Size Metal Power Pole 69KV 90FT Steel Electric Pole Q460C

                  69kv Metal Power Pole Any Height And Thickness, Any Color 90ft Steel Utility Pole

Product Description


The products above are steel utility poles made specifically for p69kv Metal Power Pole, any height and thickness, any color 90ft steel utility pole

  • Products are designed and manufactured according to ANSI/TIA-222-G structural standards
  • Only our company can comply to these global manufacturing standards which gives us an edge over our competitors

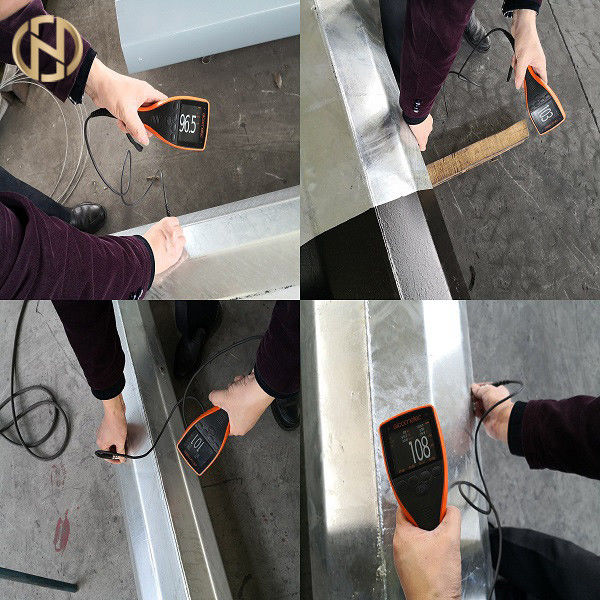

  • Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
  • Pole shaft material :Q460C, With 4 to 8mm
  • Material code : GB/T1591-2008,GB/T700-2006
  • We accommodate various designs according to our customers’ specifications

To design in accordance with PLS poles  software, we will require the following design parameters:

base on load tree and wind speed

Product Specifications


Product Name

69kv Metal Power Pole, any height and thickness, any color 90ft steel utility pole

Suitable Uses

Power Distribution

Shape

Tubular, 12-Side.


Material


Q460C , YS>460Mpa, TS>560Mpa

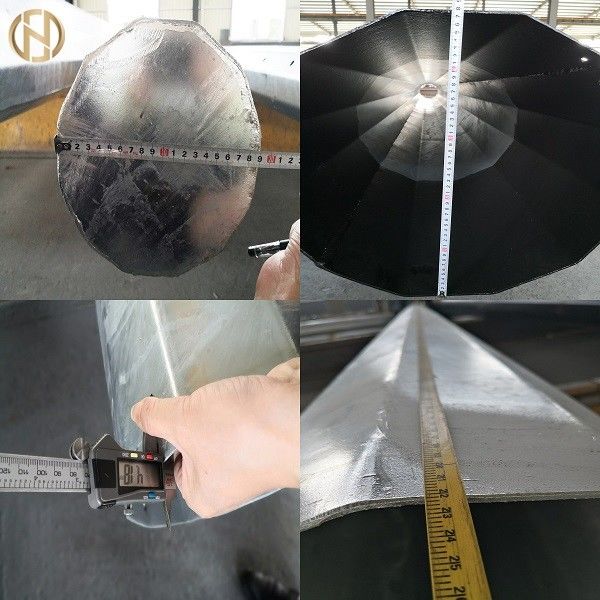

Tolerance of Dimensions

+- 1.5%

Power

69KV

Safety Factor

Safety factor for conducting wire: 3
Safety factor for grounding wire: 3

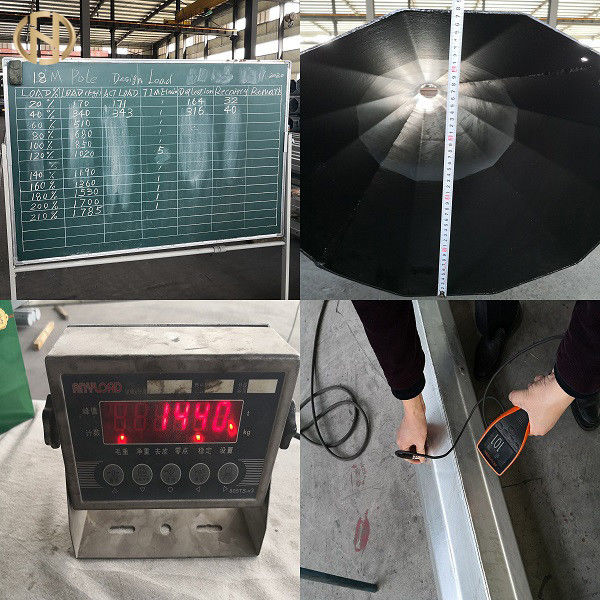

Design Load in Kg

1050 to 1150kg at top section.

Engraving

buird

Surface Treatment

Hot Dip Galvanization according to ASTM A123 standards/Powder Coating

Joint of Poles

Insert Mode, Inner Flange Mode, Face to Face Joint Mode

Design of Poles

Against earthquake of 8 grade

Wind Resistance

210 km/h or 60m/s

Minimum Yield Strength



Min to Max Ultimate Tensile Strength

490 mpa - 620 mpa

Standard

ISO 9001

Length per Section

Within 14m once formed without slip joint

Welding

Internal and external double welding process produces a seamless surface
Welding Standard: AWS (American Welding Society) D 1.1

Thickness

4,4.5, 5, 6, 8mm


Packaging & Shipping


We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.

Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Customized Size Metal Power Pole  69KV 90FT Steel Electric Pole Q460C 0

FAQ


Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.
2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.


Our Service


1. We will reply all your enquiries in 24 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. Customized designs are available. UEM & UBM are welcome.
4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.

Welcome to our factory!
