Anti Corrosion Tubular Steel Pole Dismountable Arms

Anti Corrosion Tubular Steel Pole Dismountable Arms

  • High Light

    anti corrosion Tubular Steel Pole

    ,

    Dismountable arms Tubular Steel Pole

    ,

    anti corrosion Transmission Steel Pole

  • Welding
    AWS D 1.1
  • Height
    According To Clients' Request
  • Thickness
    2mm - 32mm
  • Material
    Q235, Q345, Q420,
  • Shape
    Tubular,16side
  • Surface Treatment
    HDG With Painting
  • Place of Origin
    CHINA
  • Brand Name
    Futao
  • Certification
    EN10046
  • Model Number
    220kv
  • Minimum Order Quantity
    2pieces
  • Price
    $111 - $660
  • Packaging Details
    40HC or OT wrap by mat or straw mat
  • Delivery Time
    33workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    2100 pieces every month

Anti Corrosion Tubular Steel Pole Dismountable Arms

                            220KV Tubular Steel Pole for Transmission Lines,230kv electric pole, EN stardand


ADVANTAGES



  • OEM&ODM service available
  • Great anti-corrosion performance
  • Long life time: 25 years long life span
  • BAOSTEEL Q235 steel, high strength and great resilience
  • Dual protection treatments: hot galvanized first and then powder paint
  • Multiple painting colors available: Default color Gray. Custom available
  • Dismountable arms and foundation kit: Only a screwdriver, requiring no welding



Product Description


The products above are 220KV Tubular Steel Pole for Transmission Lines,230kv electric pole, EN stardand.
To design in accordance with PLS software, we will require the following design parameters:


  1. The operational wind speed of the region where the pole will be used
  2. The Antenna load and height of the pole
  3. The total height of the pole itself

Product Specifications


Type 220KV Tubular Steel Pole for Transmission Lines,230kv electric pole, EN stardand.
Suitable Uses Power tranmission line
Shape( Cross section)

Octagonal, 8-side, 12-side


Power grade 220kv
No of Section <=3 section
Length (m)
Foundation Direct burial- 1.4 to 1.5Meter
Working Load 300daN 3KN
Breaking Load 360daN ,450daN, 540daN, 600daN
Safety Factor 1.2, 1.5, 1.8, 2.0
Material ASTM 572 GR65 or Q460
Minimum Yield Strength 355Mpa, 450mpa, 35.5sq.m
Minimum Ultimate Tensile Strength 450Mpa, 550Mpa 45sq.m
Max Ultimate Tensile Strength 690mpa
EL % >=15%
Top section
Bottom section
Min Thickness(mm) >=4.75mm
Tolerance of Dimensions +- 1%
Engraving Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements
Surface Treatment Hot Dip Galvanization according to ASTM A123 standards/EN10046
Joint of Poles

Insert Mode, Inner Flange Mode, Face to Face Joint Mode.


Loading Conditions
  • Maximum line deviation
0-5degree
  • Design Wind Speed (Extreme Wind)
43m/s , 160km.h.
  • Circular Shape Factor
1.0
  • Maximum Deflection (Extreme Wind)
10% of overall pole length
Welding

Internal and external double welding process produces a seamless surface
Welding Standard :AWS ( American Welding Society ) D 1.1




3.2. Tolerances

  • Mean outside diameters, measured at slip joint level: ±1 % with ±2 mm minimum
  • Ovalization: the dimensional percentage noted for two measurements taken between two perpendicular diameters at slip joint level : less than 3 % [(Dmaxi-Dmini)/Dmaxi < 3 %]
  • Length of pole elements: - 25 mm / +75 mm
  • Members Straightness: less than 0.2 % of 1 meter member length (2 mm per meter)
  • Twisting: less than 1.5 degrees per 3 meters member length
  • Location of holes: ± 1 % on lengths indicated on our approval drawings



3.3 Galvanization



After the fabrication has been entirely completed, Steel Poles shall be hot dip galvanized. Double dipping shall not be allowed.



All materials, except bolts, screws, nuts, shall be galvanized according to NF EN ISO 1461.



All hollow members shall be galvanized both inside and outside surfaces. Nuts shall be retapped after galvanizing and then shall be suitably protected from rust by grease.

4. Description:



Galvanized STEEL POLES, uniformly tapered, 12 sided regular polygonal cross-section. The maximum length of one section shall be 12 meters.



Each face shall be flat, without stiffeners except at load points.



Steel Poles are designed for telescoping slip-fitted connections.

Poles are designed with a minimum number of joints (one or two joint per pole). Pole joint shall be of telescoping type, welding or bolting shall not be employed.



Slip joint length shall not be less than 1.5 times the major internal diameter of the upper element.

A removable metallic pole cap shall be fitted on top of poles.

The crossarms attached at the same level on opposite sides of the pole shall be symmetrical about the centerline of the pole and shall be such that each crossarm can be installed independently.

The crossarms shall be connected to pole by mean of thru vangs, bolts and nuts. Cross-arms shall be straight and shall have a uniformly tapered 6 (eight) sided regular polygonal cross-section

All poles shall be provided with one earthing point at a position approximately 50 cm above ground level.


Packaging & Shipping



We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.

Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

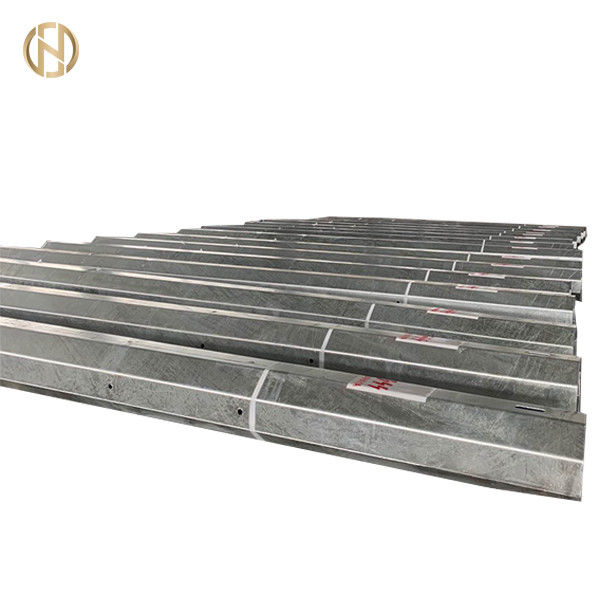

Anti Corrosion Tubular Steel Pole Dismountable Arms 0

FAQ







Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4. We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile to
Q5. Tell me about your company?
A : We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?

Our Survice
1. We will reply all your enquiries in 24 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. Customized designs are available. UEM & UBM are welcome.
