Polygonal 10M Street Road Light Pole Double Brackets

Polygonal 10M Street Road Light Pole Double Brackets

  • High Light

    Polygonal Road Light Pole


    Polygonal Street Light Pole


    10M Street Light Pole

  • Surface Treatment
    Hot Dip Galvanized
  • Thickness
  • Material
    Q345,ASTM 572 GR50
  • Welding
    AWS D 1.1
  • Shape
    Polygonal Or Conical
  • Height
  • Color
    Black Painting
  • Place of Origin
  • Brand Name
  • Certification
    ISO 9001 : 2008
  • Model Number
    FTGG - 0 38 917
  • Minimum Order Quantity
    2 pieces
  • Price
    $110 - $510
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    15 - 30 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every week

Polygonal 10M Street Road Light Pole Double Brackets

10m Steel Pole Metal Postes Electrical Power Pole ,700daN Safety Factor 1.1


Poles height
3m to 40m
Round conical; Octagonal tapered; Straight square; Tubular stepped;Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
Brackets/ Arm
Single or double brackets/ arm are in the shape and dimension as per customers requirement
It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international welding standard of CWB,BS EN15614
surface treatment
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.BS EN ISO 1461
Base plate mounted
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement.
Wind resistance
Customized,according to customer's environment
Powder coating
Pure polyester powder painting, color is optional according to RAL Color stardand.
Customized/Design Service



Product Description

Our electrical poles are specifically designed fo  10M STEEL POLE METAL POSTES ELECTRICAL POWER POLE ,1050daN Safety factor 1.1

 We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.


Specifical Details

1) Manufacture Standards ---
2)Pole Parameters:
Length mm 10000
Thickness of steel mm 4
Cross-sectional shape   8-side
Steel Designation ASTM number ASTM A572-GR50
Ultimate Tensile Stress,fu N/mm2 450
Yield Stress,fy N/mm2 345
Max allowable design stress fd=fy/(1.1) 1.1
Pole Top diameter mm 200
Pole Bottom diameter mm 400
Galvanize coating standard --- ASTM 123
Galvanize coating thickness --- AVE>=75um
3)Pole Top permanently covered Yes/No YES
4)Detachable base plate provided Yes/No YES
5)Plastic plugs to seal holes provided Yes/No YES
6)Polyurethane coating applied as specified Yes/No YES
7)Pole fitted with 900mm ground sleeve as specified Yes/No YES
8)Pole permanently marked as specified Yes/No YES
9)Poles packaged in open top containers Yes/No YES

Load details of 10m 700daN SF 1.1


%Load Load(kg) Act.Load(kg) Time(min.) Deflection(mm) Recovery
50% 350 355 1 300 12 Passed

No signed of failfure or damage
70% 490 492 1 412 18
80% 560 565 1 525 23
90% 630 632 1 550 26
100% 700 705 1 580 30
110% 770 772 1 620 35


Additional Details

Design Code: American Standard ASCE/SEI 48-11

Design Software: PLS-POLES

Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa

Testing Process: Loading Tests may be conducted on factory site if required


Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

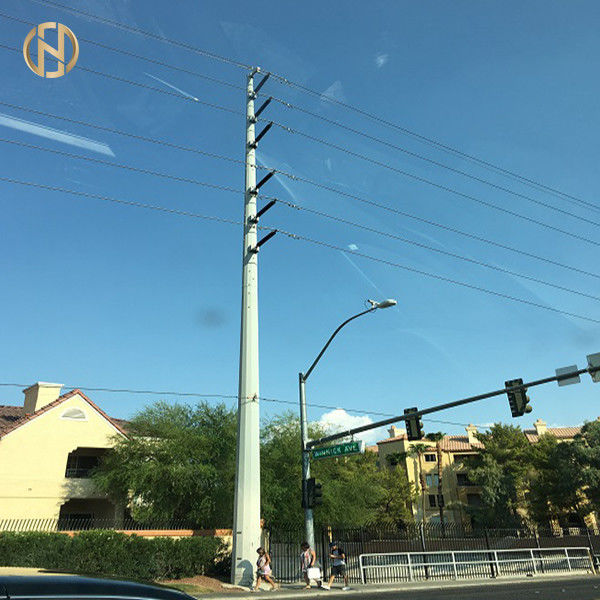

Polygonal 10M Street Road Light Pole Double Brackets 0

Product Details

Polygonal 10M Street Road Light Pole Double Brackets 1



Polygonal 10M Street Road Light Pole Double Brackets 2

Packaging & Shipping

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
