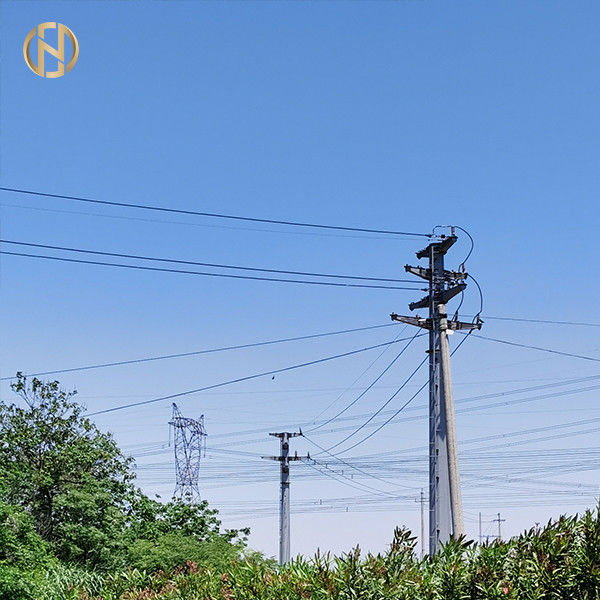

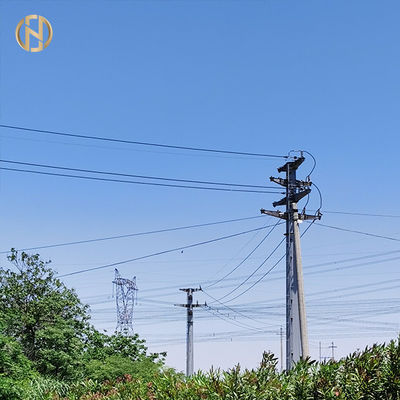

Multi Pyramidal Conical Utility Electrical Power Pole

Multi Pyramidal Conical Utility Electrical Power Pole

  • High Light

    Utility Electrical Power Pole

    ,

    Conical Electrical Power Pole

    ,

    Conical Utility Power Pole

  • Height
    2m - 50m
  • Thickness
    2.5mm - 20mm
  • Material
    Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, Etc.
  • Shape
    Polygonal Or Conical
  • Color
    According To Clients' Requirment
  • Surface Treatment
    Hot Dip Galvanized
  • Welding
    AWS D 1.1
  • Place of Origin
    CHINA
  • Brand Name
    FUTAO
  • Certification
    ISO 9001 : 2008
  • Model Number
    FTGG - 0 38 917
  • Minimum Order Quantity
    2 pieces
  • Price
    $100 - $400
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    15 - 30 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every week

Multi Pyramidal Conical Utility Electrical Power Pole

138KV double Circuit Pole 30-60degree with baseplate and M48 Anchor bolt







Suit for Electricity accessories
Shape Multi-pyramidal,Columniform,polygonal or conical
Material

Normally Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

Safety Factor

Safety factor for conducting wine : 8

Safety factor for grounding wine : 8

Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Name palte through rivert or glue ,engrave ,emboss as per customers requirements
Surface treatment Hot dip galvanized Following ASTM A123, color polyester power or any other standard by clients required.
Joint of Poles Insert mode ,inner flange mode ,face to face joint mode .
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Length of per section Within 14m once forming without slip joint











































































Product Description


Designed for 132,138, 69kv 110KV overhead transmission lines. Custom poles with custom dimensions can be designed if required. Our in house engineers are here to help. Please contact customer service for any enquiries you may have.



Specifical Details


STEEL POLES UNITE GUARANTEED VALUES
POLE TYPE   Straight Angle Dead-end
Quantity pce 24 14 6
Manufacturer   YIXING FUTAO METAL STRUCTURAL UNIT CO.,LTD YIXING FUTAO METAL STRUCTURAL UNIT CO.,LTD YIXING FUTAO METAL STRUCTURAL UNIT CO.,LTD
Manufacturing location   CHINA,JIANGSU ,YIXING CITY CHINA,JIANGSU ,YIXING CITY CHINA,JIANGSU ,YIXING CITY
Standards - NFEN10025 / GB/T 700 NFEN10025 / GB/T 700 NFEN10025 / GB/T 700 NFEN10025 / GB/T 700 NFEN10025 / GB/T 700 NFEN10025 / GB/T 700
Steel quality   S500 / Q500 S500 / Q500 S500 / Q500 S500 / Q500 S500 / Q500 S500 / Q500
Hot galvanizing standard   ISO 1461 ISO 1461 ISO 1461 ISO 1461 ISO 1461 ISO 1461
Dimensionnement mécanique des ligues
Number of circuits   1 1 1 1 1 1
Type of isolators   SUSPENSION SUSPENSION ANCHOR ANCHOR ANCHOR ANCHOR
Angle º 0 0 45 45 90 90
Standard span m 200 200 200 200 200 200
Wind span m 220 220 220 220 220 220
Weight span m 250 250 250 250 250 250
Conductor sag at 85°C m
Cross arm shape   Triangle Triangle drapeau drapeau drapeau drapeau
Height of lowest cross arm m 15.6 15.6 15.6 15.6 15.6 15.6
Minimum vertical distance between conductors and pole m 1.1 1.1 2 2 2 2
Vertical distance between highgest conductor and ground wire m 2.2 2.2 2.2 2.2 2.2 2.2
Wind pressure at average temperature (25°C) daN/m2 58 58 58 58 58 58
Poles aerodynamic coefficient   2.8 2.8 2.8 2.8 2.8 2.8
Conductor aerodynamic coefficient   1 1 1 1 1 1
Safety coefficient   2 2 2 2 2 2
Material   Folded metal sheet Folded metal sheet Folded metal sheet Folded metal sheet Folded metal sheet Folded metal sheet
Cross-section   Octogonal Octogonal Octogonal Octogonal Octogonal Octogonal
Height from the ground m 20 20 22 22 22 22
Top exterior diameter mm 240 240 270 270 300 300
Bottom exterior diameter mm 510 510 920 920 1200 1200
Number of sections mm 2 2 3 3 3 3
Thickness (top/bottom) mm 4 / 6 4 / 6 6 / 8 / 10 6 / 8 / 10 6 / 10 / 10 6 / 10 / 10
Total weight kg 1150 1268 3300 3560 4670 4980
Depth of foundation m 2.6 2.6 2 2 2 2


Additional Details


Design Code: American Standard ASCE/SEI 48-11

Design Software: PLS-POLES software

Export Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa

Testing : Loading Tests may be conducted on site if required



Production Process


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Multi Pyramidal Conical Utility Electrical Power Pole 0

Product Details


Multi Pyramidal Conical Utility Electrical Power Pole 1



Testing
