40Ft Electric Steel Pole Polygonal By  CNC Laser Cutting

40Ft Electric Steel Pole Polygonal By CNC Laser Cutting

  • High Light

    40Ft electric steel pole

    ,

    Polygonal electric steel pole

    ,

    Polygonal electric utility pole

  • Surface Treatment
    Hot Dip Galvanized
  • Height
    60ft To 80ft
  • Thickness
    4-10mm
  • Material
    Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, Etc.
  • Shape
    Polygonal Or Conical
  • Color
    According To Clients' Requirment
  • Welding
    AWS D 1.1
  • Place of Origin
    CHINA
  • Brand Name
    Futao
  • Certification
    ISO 9001 : 2008
  • Model Number
    69kv
  • Minimum Order Quantity
    5 pieces
  • Price
    $111 - $411
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    15 - 30 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every week

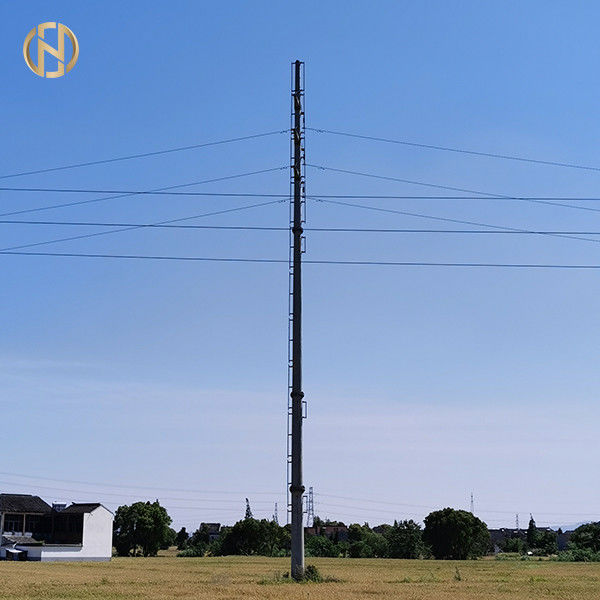

40Ft Electric Steel Pole Polygonal By CNC Laser Cutting

                                         40Ft Electric Steel Pole Polygonal By CNC Laser Cutting

Cutting
Cutting the raw material that have meet all the standard required into different length and width. CNC laser cutting is used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC or G-code of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish.

Molding
Forming the cut steel plate into the shape (circular or polygonal or other shape ) that as per specified in the drawing. This invention relates to forming devices and more particularly to devices or machines for bending longitudinally rolled sections or strips of metal stock to desired curvilinear shapes.


Product Description


Our electrical poles are specifically designed for 69kv 60ft 65ft 70ft 75ft 80ft electrical power pole electric utility pole suspension pole for phiippines market NGCP Client We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.



Specific Details


Product Name

69kv 60ft 65ft 70ft 75ft 80ft electrical power pole electric utility pole suspension pole for phiippines market

Type

Suspension Pole, Tension Pole, Angle Pole, Termination Pole

Height

2m - 50m

Thickness

4mm, 5mm ,6mm , 7mm, 8mm, 9mm , 10mm 11mm ,12mm

Shape

Polygonal or Conical

Surface Treatment

Hot Dip Galvanized according to ASTM A123 standard or any other standards according to clients' request

Color

Any, According to clients' request

Ground Mounted

Anchor Bolt

Voltage

69kv

Material

Q235, Q345, Q420, Q460, Gr 50, Gr65 ASTM 572 GR633 , Q460C

Welding



Welding complies with AWS D1.1 standard

COwelding or Submerged Arc Auto methods

No scarring, craters, spatters, distortions, defects of any kind due to welding errors

Unique Internal and External Welding method that allows for a smoother surface

Additional welding requirments can be made as per clients' request

Life Expectancy

More than 25 years depending on various environmental factors

Qualification

ISO9001-2015, AAA Credit Rating

Wind Resistance

160 km/h

Earthquake Resistance

Against earthquake of grade 8



SIZE TEST



Top Diameter (mm): 252 / 252 / 254 / 254 (AVE = 253) 248 - 260 Passed
Butt Diameter (mm): 464 / 464 / 453 / 454 (AVE = 458.75) 448 - 468
Wall Thickness (mm): TS: 4.25 / 4.22 / 4.28 / 4.22 (AVE = 4.24) 3.86 - 4.36
BS: 4.15 / 4.12 / 4.18 / 4.2 (AVE = 4.16)
Galvanized Coating Thickness (micron): TS: 111, 101, 106, 95, 99, 105, 91, 122, 109, 103, (AVE = 103.75) => 85 MIN.
BS: 126, 89, 74, 123, 94, 92, 96, 98, 103, 89, (AVE = 99)
Total Assembly Length: 21300 21286 - 21394



LOAD TEST



Yield Strength, MPa 740 450 min Passed
Tensile Strength, MPa 800 550 min
Elongation, % 20 15% min

C2. Chemical Test     Measured Standard Remarks
Carbon (C), % 0.062 / 0.061 / 0.059 (AVE = 0.061) 0.23 max Passed
Manganese (Mn), % 1.39 / 1.38 / 1.4 (AVE = 1.39) 0.5 - 1.65
Phosphorus (P), % 0.014 / 0.013 / 0.014 (AVE = 0.014) 0.04 max
Sulfur (S), % 0.0047 / 0.0047 / 0.0047 (AVE = 0.005) 0.05 max
Silicon (Si), % 0.152 / 0.148 / 0.151 (AVE = 0.151) 0.04 - 0.06 / 0.12 - 0.25
Copper (Cu), % 0.211 / 0.212 / 0.209 (AVE = 0.211) 0.20 min
Nickel (Ni), % 0.66 / 0.52 / 0.6 (AVE = 0.594) --
Chromium (Cr), % 0.031 / 0.031 / 0.031 (AVE = 0.031) --
Niobium (Nb), % 0.05 / 0.049 / 0.052 (AVE = 0.051) --
Aluminum (Al), % 0.036 / 0.036 / 0.036 (AVE = 0.036) --
Columbium (Co), % 0.004 / 0.0034 / 0.0034 (AVE = 0.004) --
Vanadium (V), % 0.0034 / 0.0029 / 0.0035 (AVE = 0.004) --
Titanium (Ti), % 0.023 / 0.023 / 0.023 (AVE = 0.023) --



Additional Details


Design Code: American Standard ASCE/SEI 48-11

Design Software: PLS-POLES

Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa

Testing Process: Loading Tests may be conducted on factory site if required



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

40Ft Electric Steel Pole Polygonal By  CNC Laser Cutting 0

Product Details


40Ft Electric Steel Pole Polygonal By  CNC Laser Cutting 1



Testing


40Ft Electric Steel Pole Polygonal By  CNC Laser Cutting 2

Packaging & Shipping


We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
