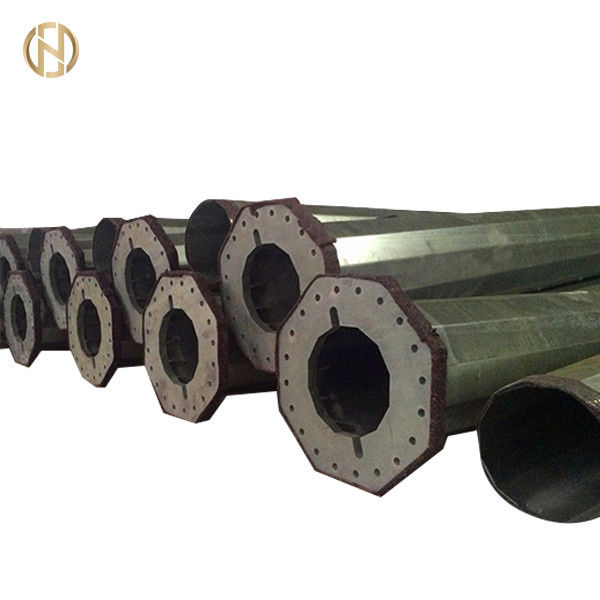

GR65 35FT Octagonal Steel Pole Weather Resistance

GR65 35FT Octagonal Steel Pole Weather Resistance

  • High Light

    35FT Octagonal Steel Pole

    ,

    GR65 Octagonal Steel Pole

    ,

    GR65 Octagonal tubular pole

  • Height
    10.5m
  • Thickness
    4mm
  • Material
    Q235, Q345, Q420, Q460, GR50, GR60, SS400
  • Shape
    Tubular
  • Color
    According To Clients Request
  • Surface Treatment
    Hot Dip Galvanized
  • Welding
    AWS D 1.1
  • Place of Origin
    CHINA
  • Brand Name
    FUTAO
  • Certification
    ISO9001:2008
  • Model Number
    10.5m -500dan
  • Minimum Order Quantity
    2 pieces
  • Price
    $100 - $600
  • Packaging Details
    40HC or OT wrap by mat or straw mat
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    6000 pieces every month

GR65 35FT Octagonal Steel Pole Weather Resistance

                                         10.5M 35FT Tubular Steel Pole500daN 5KN GR65ctagonal steel pole and structures



Product Description


The products above are 10.5M 35FT Tubular Steel Pole500daN 5KN GR65 octagonal steel pole and structures

made specifically for power distribution between 33kv

  • Products are designed and manufactured according to ANSI/TIA-222-G structural standards
  • Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
  • Pole shaft material : ASTM 572 GR50 or equal
  • Material code : GB/T1591-2008,GB/T700-2006
  • We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
  • We provide additional assistance if required including supervision and supplementary components
  • We accommodate various designs according to our customers’ specifications

To design in accordance with PLS software, we will require the following design parameters:


  1. The operational wind speed of the region where the pole will be used
  2. The Antenna load and height of the pole
  3. The total height of the pole itself

Product Specifications


Type 10.5M 35FT Tubular Steel Pole500daN 5KN GR65 Octagonal Steel pole and structures
Suitable Uses Power Distribution
Shape( Cross section)

Octagonal



Power grade 11kv
No of Section One
Length (m) 8M-25FT
Foundation Direct burial- 1.4M
Working Load 500daN
Breaking Load 750daN
Safety Factor 1.5
Material

ASTM 572 GR65 or Q460

Minimum Yield Strength 450 mpa
Minimum Ultimate Tensile Strength 550 mpa
Max Ultimate Tensile Strength 690mpa
EL % >=15%
Top diameter(mm) >=140
Bottom diameter(mm) >=300
Min Thickness(mm) >=4mm
Tolerance of Dimensions +- 1%
Engraving Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements
Surface Treatment

Hot Dip Galvanization according to ASTM A123 standards/Powder Coating



Joint of Poles

Insert Mode, Inner Flange Mode, Face to Face Joint Mode.



Loading Conditions
  • Maximum line deviation
0-5 degree
  • Design Wind Speed (Extreme Wind)
32m/s
  • Circular Shape Factor
1.0
  • Maximum Deflection (Extreme Wind)
10% of overall pole length
Welding

Internal and external double welding process produces a seamless surface

Welding Standard :AWS ( American Welding Society ) D 1.1



Packaging & Shipping




We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

GR65 35FT Octagonal Steel Pole Weather Resistance 0



FAQ


Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.

2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.



Our Service


1. We will reply all your enquiries in 24 working hours.

2. Experienced staff members will answer all your questions in fluent English.

3. Customized designs are available. UEM & UBM are welcome.

4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
