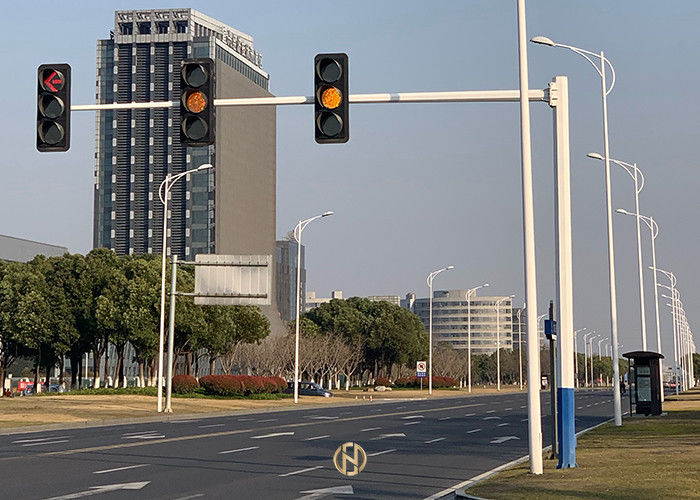

8m Hot Dip Galvanized Traffic Signal Pole Wind Resistance

8m Hot Dip Galvanized Traffic Signal Pole Wind Resistance

  • High Light

    8m Traffic Signal Pole

    ,

    multiple mounting arms traffic Signal Pole

    ,

    8m Traffic Signal post

  • Surface Treatment
    Hot Dip Galvanized
  • Height
    6.5m - 8.5m
  • Arm Length
    4m - 18m
  • Pole Shaft Thickness
    5 - 12 Mm
  • Mounting Arm Thickness
    4 - 10 Mm
  • Material
    Aluminum, Stainless Steel, Galvanized Steel
  • Type
    With Single, Double, Tripe, Four Outreach Arms
  • Application
    Street, Road, Highway, Commercial Areas, Seaport, Airport And Etc.
  • Color
    White, Sliver And Many More
  • Place of Origin
    CHINA
  • Brand Name
    FUTAO
  • Certification
    ISO 9001
  • Model Number
    4 - 8m Traffic and Signal Lighting Poles
  • Minimum Order Quantity
    2 pieces
  • Price
    $80 - $1000 / piece
  • Packaging Details
    40 HC or OT, wrap by mat or straw mat
  • Delivery Time
    30-60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every month

8m Hot Dip Galvanized Traffic Signal Pole Wind Resistance

                                     8m Hot Dip Galvanized Traffic Signal Pole Wind Resistance



Product Description


Traffic lights are an important aspect of any traffic control system. A dependable and sturdy pole is required to support these traffic lights. At Futao Metal, we produce various types of traffic and signal poles including octagonal, cylindrical, and conical shaped poles.



Going one step further, our poles can be designed to have multiple mounting arms if required. All traffic and signal poles shall consist of a single vertical pole, connecting flanges, mounting arms, and anchor bolts. Straight or seamless steel pipes shall be used for the vertical pole and transverse arms. The connection ends of the vertical pole and the transverse arm shall adopt the same steel pipe as the transverse arm and will be protected by stiffeners. The vertical pole and foundation will be connected by a flange and anchor bolts. Horizontal mounting arms are connected to the main vertical pole using a flange and further reinforced using stiffeners.



All welding processes of the vertical pole and its main components shall meet industry standards.



Main Specification Details


Protect Name

4-8m Traffic and Signal Lighting Steel Poles

Max to Min of Height

6.5m - 8.5m

Max to MIn of Arm length

4m - 18m

Pole Shaft Thickness

5mm - 12mm

Mounting Arm Thickness

4mm - 10mm

Type of Arm

With Single, Double, Tripe, Four OUtreach Arms

Shape

Tubular, Polygonal or Conical

Material

Aluminum, Stainless Steel, Galvanized Steel

Surface Treatment

Hot Dip Galvanized

Tolerance of Dimensions

+- 2%

Power

10kv - 550kv

Standard

ISO9001

Application

Street, Road, Highway, Commerical Areas, Seaport, Airport and etc.

Wind Resistance

160km/h

Design of Pole

Against earthquake of 8 grade



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

8m Hot Dip Galvanized Traffic Signal Pole Wind Resistance 0



Packaging & Shipping


We cover the top and bottom parts of the pole with a mat or mat straw in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
